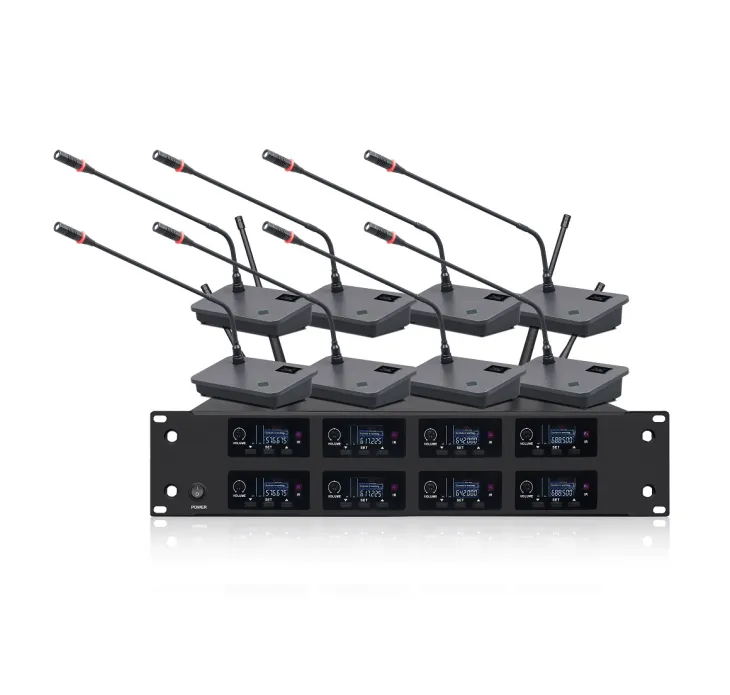

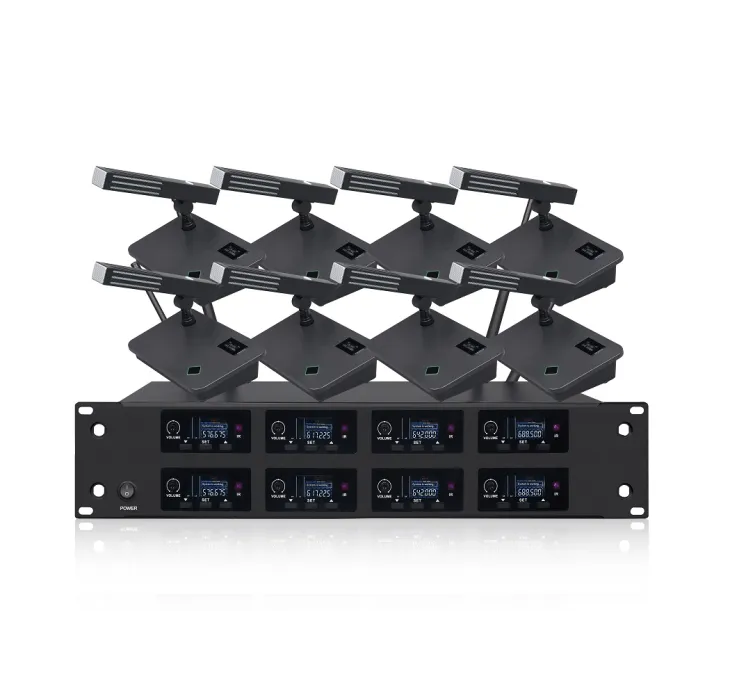

ACT8000 8 channel UHF wireless microphone
Technical parameter
Comprehensive characteristics
Carrier frequency range: 610MHz-960MHz (depending on applicable country specifications)
Bandwidth: 50MHz
Modulation method: FM frequency modulation
Maximum frequency deviation: ±45KHz
Frequency response: 80Hz—15KHz
Signal-to-noise ratio (S/N): ≥50dB(A)
Distortion (1kDz): <2%
Working temperature: -10℃~55℃
Working distance: 80-100 meters (in an open and interference-free environment)
Power consumption: 8W
Static power: 3W
receiver
Oscillation Mode: Crystal Oscillation
Spurious Suppression: ≥80dB
Image rejection: ≥80dB
Sensitivity: 5dBuV
Audio output level: Balanced output (XLR output jack): 250mV/600Ω
Unbalanced output (1/4" output jack): 400mV/3KΩ
Working voltage: DC12—16V
Working current: ≤400mA (ACT2000 drag two)
≤800mA (ACT4000 drag four)
≤1600mA (ACT8000 drag eight)
Handheld Transmitter
RF power output: 30mW max (depending on applicable country codes)
Oscillation Mode: Crystal Oscillation
Transmit frequency stability: <30ppm
Dynamic range: ≥100dB(A)
Frequency response: 50Hz—15KHz
Maximum input sound pressure: 130dB SPL
Microphone pickup: dynamic/cardioid
Charging method: Type-C interface
Charging current: 460maH
Working current: 100-110ma (standby)/120-140 (working)
Power supply: 1 2000mAh 18650 battery
Bodypack Transmitter (Conference Transmitter)
RF power output: 30mW max (depending on applicable country codes)
Oscillation Mode: Crystal Oscillation
Transmit frequency stability: <30ppm
Dynamic range: ≥100dB(A)
Frequency response: 50Hz—15KHz
Maximum input sound pressure: 130dB SPL
Microphone Capsule: Condenser/Cardioid
Display: TFT display
Charging method: Type-C interface
Charging current: 460maH
Working current: 100-110ma (standby)/120-140 (working)
Power supply: 1 2000mAh 18650 battery
Other parameters:
Charging current: 1A current
Battery type: 18650 lithium battery
Battery capacity: 2000ma
Charging time: 5H
Battery life: 12-18 hours (depending on the working state)
Charging interface: Type-C charging cable, 2 (optional 1 point 2 charging cable)
Charger: 5V1A charging head, 2 (can be charged with a mobile phone charger)
