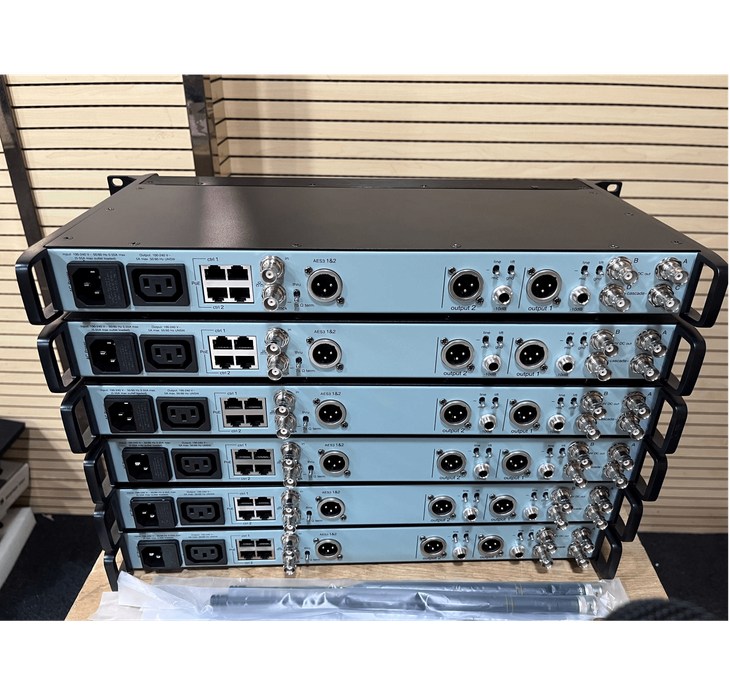

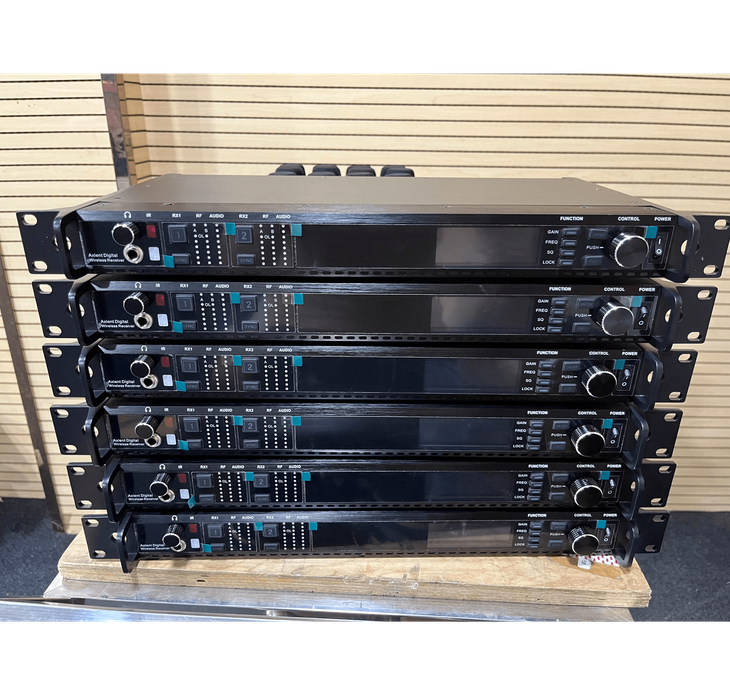

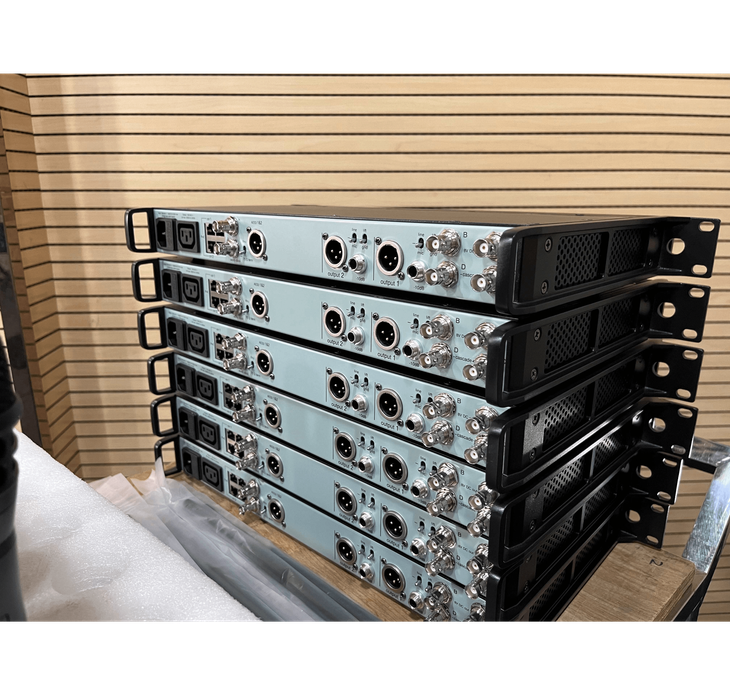

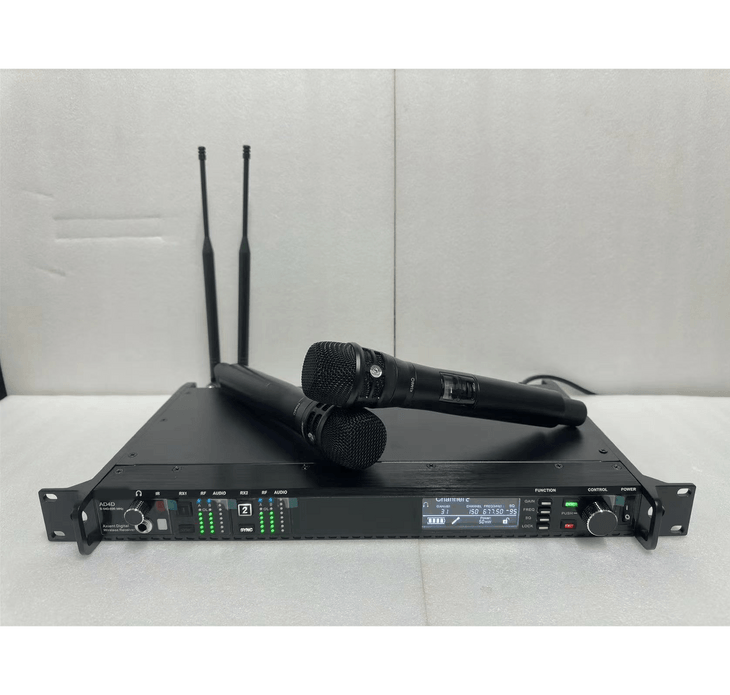

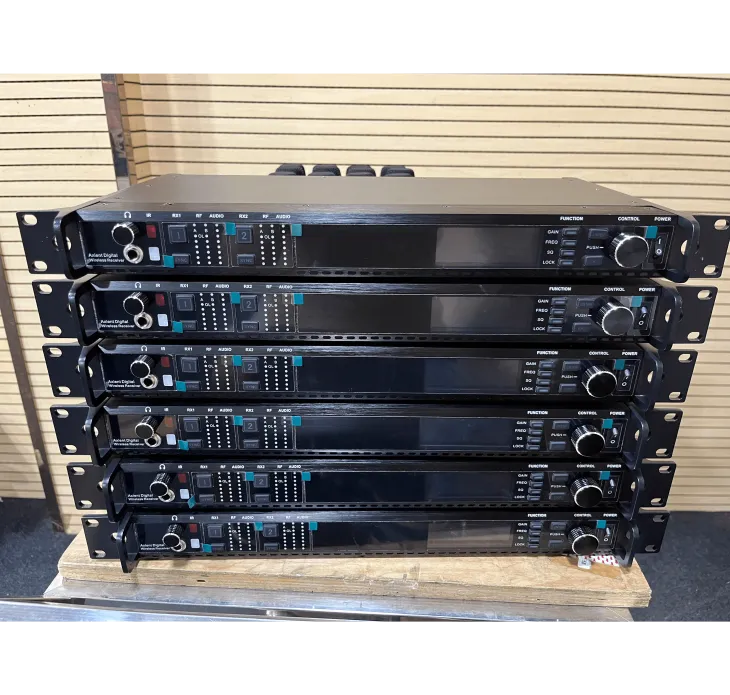

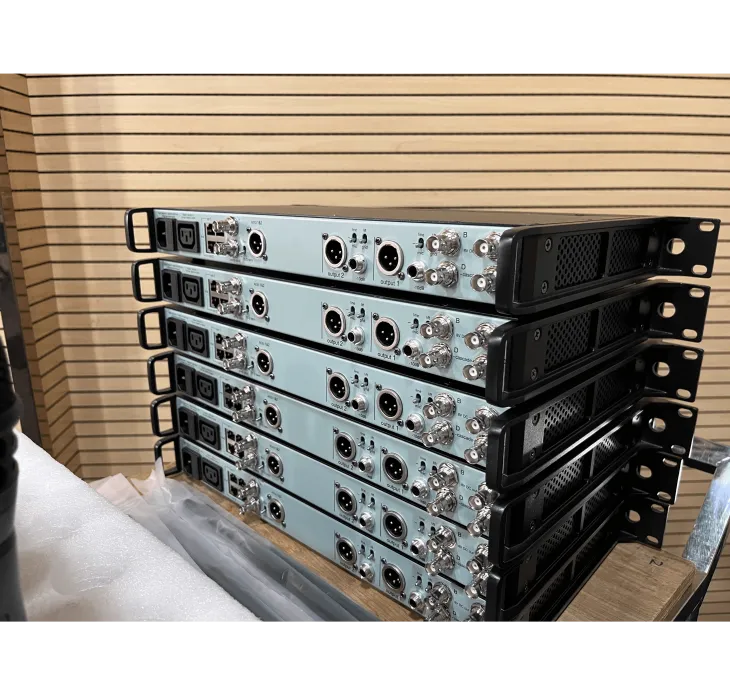

AD4D True Diversity UHF Wireless Microphone
Functional features:
Use the UHF520-930MHz frequency band to avoid interference frequencies. Adopting a phase-locked loop (PLL) frequency synthesis stabilization system, providing 200 channels. Fully automatic infrared frequency matching enables the transmitter and receiver to automatically synchronize transmission and reception. Adopting the latest high-frequency filter to filter out out out of band interference signals to the maximum extent possible. Multiple static noise control circuit, rejecting external interference. Unique circuit design, high dynamics, wide frequency response, and low noise. Adopting a high-frequency circuit design with secondary frequency conversion, it has extremely high sensitivity. Specially designed speech compression and expansion circuit greatly improves signal-to-noise ratio. Equipped with real-time monitoring function, compatible with major brand audio heads, and flexible and easy to operate.
Frequency range: UHF 520-930MHz Modulation method: Broadband FM Adjustable range: 50MHz Channel number: 2x100 Channel spacing: 250KHz Frequency stability: within ± 0.005% Dynamic range: 100dB Maximum frequency deviation: ± 45KHz Audio response: 80Hz-18KHz (± 3dB) Comprehensive signal-to-noise ratio:>105dB Comprehensive distortion: ≤ 0.5% Operating temperature: -10 ° C~50 ° C
Functional features:
Use the UHF520-930MHz frequency band to avoid interference frequencies. Adopting a phase-locked loop (PLL) frequency synthesis stabilization system, providing 200 channels. Fully automatic infrared frequency matching enables the transmitter and receiver to automatically synchronize transmission and reception. Adopting the latest high-frequency filter to filter out out out of band interference signals to the maximum extent possible. Multiple static noise control circuit, rejecting external interference. Unique circuit design, high dynamics, wide frequency response, and low noise. Adopting a high-frequency circuit design with secondary frequency conversion, it has extremely high sensitivity. Specially designed speech compression and expansion circuit greatly improves signal-to-noise ratio. Equipped with real-time monitoring function, compatible with major brand audio heads, and flexible and easy to operate.
Frequency range: UHF 520-930MHz Modulation method: Broadband FM Adjustable range: 50MHz Channel number: 2x100 Channel spacing: 250KHz Frequency stability: within ± 0.005% Dynamic range: 100dB Maximum frequency deviation: ± 45KHz Audio response: 80Hz-18KHz (± 3dB) Comprehensive signal-to-noise ratio:>105dB Comprehensive distortion: ≤ 0.5% Operating temperature: -10 ° C~50 ° C
