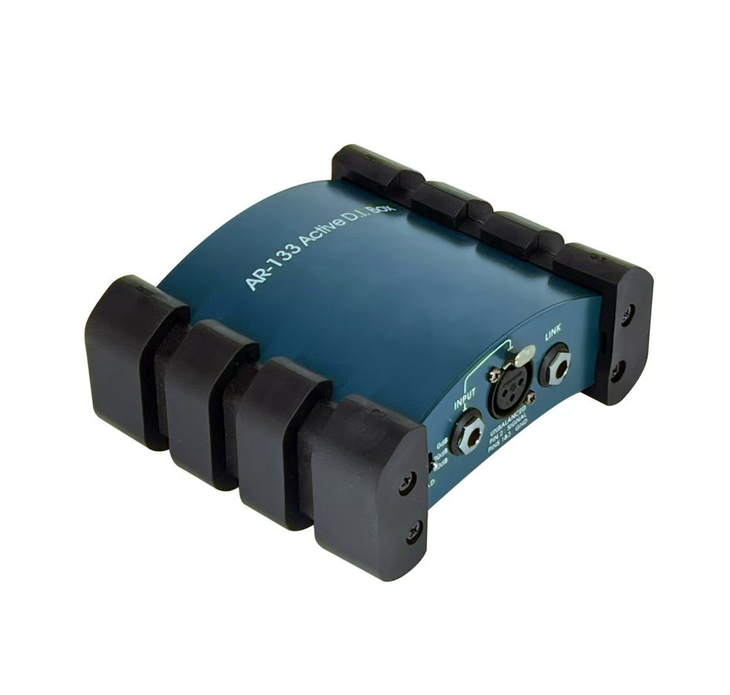

AR-133 Active DI box
AR-133 Active DI Box – Key Selling Points & Detailed Specifications
Key Selling Points:
High-Quality Signal Conversion: The AR-133 Active DI Box offers reliable, high-fidelity signal conversion from unbalanced to balanced, ensuring superior sound quality for live performances and studio recordings.
Wide Compatibility: Ideal for various audio sources including electric guitars, keyboards, and other high-impedance instruments, it provides flexibility for diverse applications.
Durable and Compact Design: Built with a rugged metal chassis, this DI box is designed to withstand the demands of live sound events and touring, while its compact size makes it easy to transport and store.
Enhanced Signal Clarity: Features a low-noise, low-distortion design with a wide frequency response to ensure clean, clear sound in all settings.
Phantom Power Option: Powered by either a 9V battery or 48V phantom power from the mixing console, making it versatile and easy to use in various situations.
Ground Lift Switch: Helps eliminate ground loop hums, ensuring optimal signal clarity without interference.
High Output Level: Capable of handling high-output instruments and providing a solid, clean signal for mixing consoles and PA systems.
Detailed Specifications:
Type: Active Direct Injection (DI) Box
Input Impedance: > 1 MΩ (High Impedance)
Output Impedance: 200 Ω (Balanced XLR Output)
Frequency Response: 20 Hz - 20 kHz (+/- 0.5 dB)
Distortion: < 0.05% THD @ 1 kHz, 0 dB
Input: 1/4" TRS (Instrument Jack)
Output: XLR Male (Balanced)
Power Requirements: 9V Battery (Optional)
48V Phantom Power (from mixing console)
Signal Conversion: Unbalanced (1/4") to Balanced (XLR)
Ground Lift Switch: Yes (to eliminate hum caused by ground loops)
Dimensions: 4.5" x 2.5" x 1.25" (L x W x H)
Weight: 0.5 lbs (approx.)
Construction: Durable Metal Chassis
Application: Ideal for electric guitars, bass, keyboards, and other high-impedance instruments
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Warranty: 1-year limited warranty
