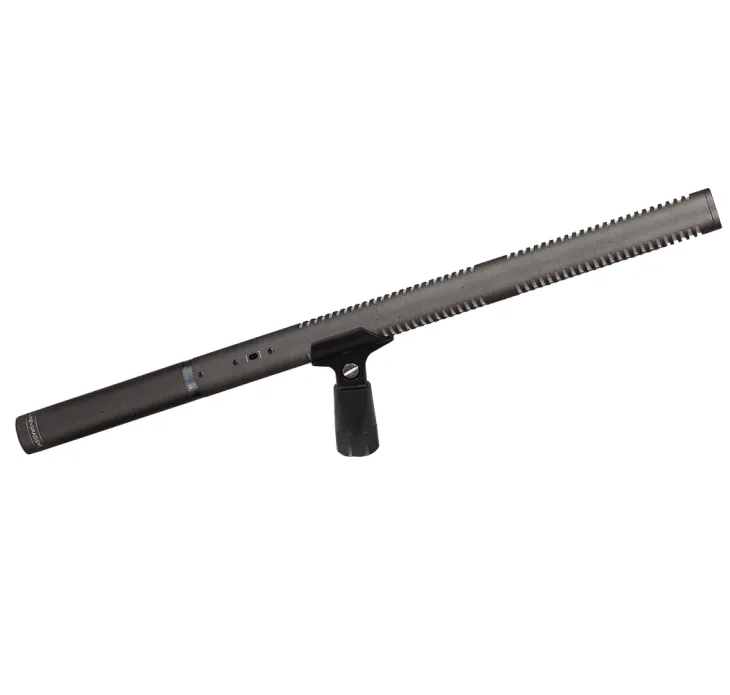

AT-8035 Interview mic
Components: fixed charging backplane, electrostatic capacitive
Directivity: super-directionality
Frequency response: 40~20,000 Hz
High-pass filter: 80 Hz, 12 dB/octave
Open circuit sensitivity, phantom power: -38 dB (12.5 mV) to 1V at 1 Pa Battery: -39 dB (11.2 mV) at 1V at 1 Pa
Impedance, phantom power: 250 ohm battery: 300 ohms
Maximum input sound pressure level, phantom power: 132 dB sound pressure, 1 kHz at 1% T.H.D. Battery: 120 dB sound pressure, 1 kHz at 1% T.H.D.
Dynamic range (typical), phantom power: 110 dB, 1 kHz for highest sound pressure battery: 98 dB, 1 kHz at highest sound pressure
Signal to noise ratio: 72 dB, 1 kHz at 1 Pa
Battery: 1.5V AA type 5th battery
Battery consumption: life of 0.4 mA / 1200 hours (alkaline battery)
Phantom power: DC 11~52V, power consumption 2mA typical
Switch: straight /, high pass filter
Weight: 170 g
Dimensions: 369.0 mm long, 21.0 mm diameter
Plug: Built-in XLRM-3 needle card male head
Standard configuration: microphone x1, sponge cover x1, clip *1
Components: fixed charging backplane, electrostatic capacitive
Directivity: super-directionality
Frequency response: 40~20,000 Hz
High-pass filter: 80 Hz, 12 dB/octave
Open circuit sensitivity, phantom power: -38 dB (12.5 mV) to 1V at 1 Pa Battery: -39 dB (11.2 mV) at 1V at 1 Pa
Impedance, phantom power: 250 ohm battery: 300 ohms
Maximum input sound pressure level, phantom power: 132 dB sound pressure, 1 kHz at 1% T.H.D. Battery: 120 dB sound pressure, 1 kHz at 1% T.H.D.
Dynamic range (typical), phantom power: 110 dB, 1 kHz for highest sound pressure battery: 98 dB, 1 kHz at highest sound pressure
Signal to noise ratio: 72 dB, 1 kHz at 1 Pa
Battery: 1.5V AA type 5th battery
Battery consumption: life of 0.4 mA / 1200 hours (alkaline battery)
Phantom power: DC 11~52V, power consumption 2mA typical
Switch: straight /, high pass filter
Weight: 170 g
Dimensions: 369.0 mm long, 21.0 mm diameter
Plug: Built-in XLRM-3 needle card male head
Standard configuration: microphone x1, sponge cover x1, clip *1
