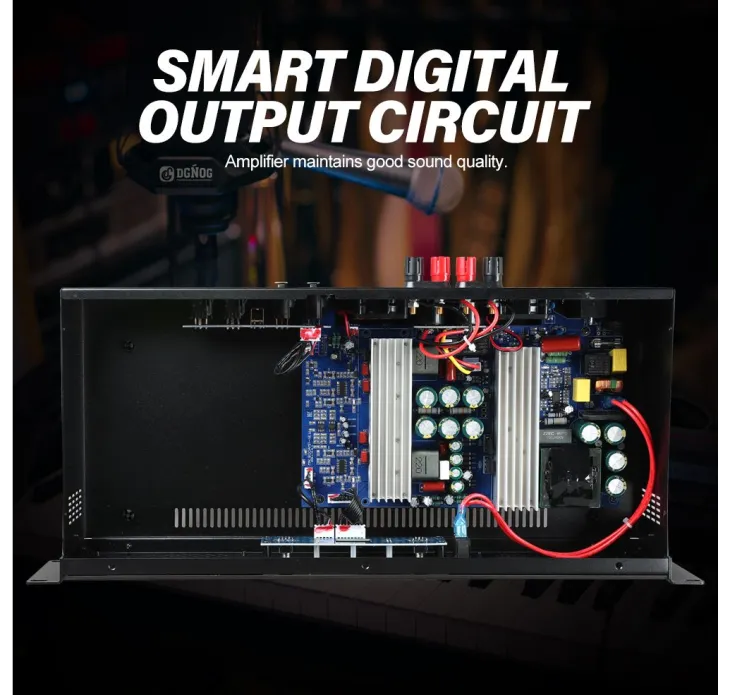

◆ Ultra large capacity switching power amplifier

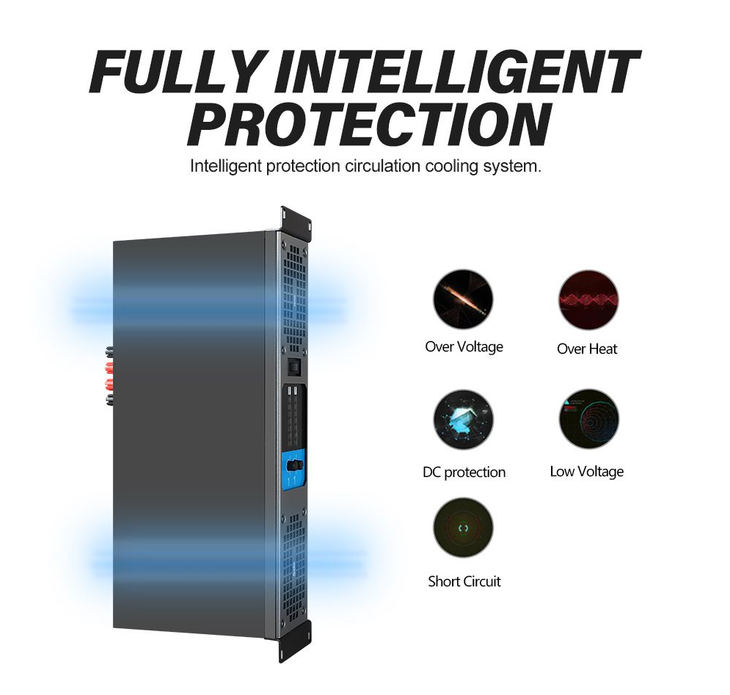

◆ Automatic limiting output, short circuit, overload, over temperature, startup delay and other protection functions

The amplifier is equipped with a delayed start system to protect the speaker from damage caused by impact

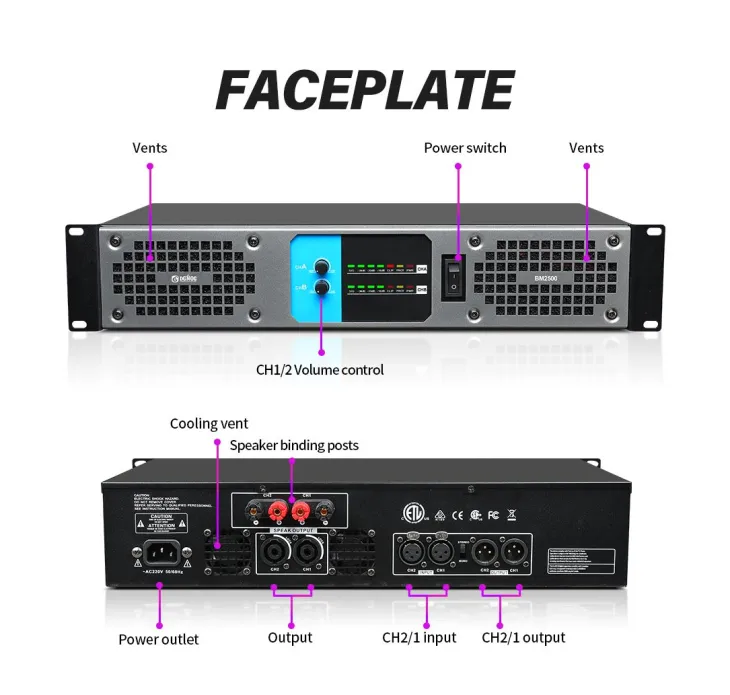

The back panel is equipped with dual channels

◆ Balanced input interface

SPEAKON output connector

483MM standard rack structure

The power amplifier and switch power supply have separate cooling systems

The cooling fan adopts advanced continuously variable transmission circuit control

◆ 1U design, lightweight body, easy to carry and install

Output/Output (8 Ω, 1kHz): 2x350

Output (4 Ω, 1kHz): 2x650W

Frequency response: 20Hz~20kHz ± 3dB

Total Distortion:

1% (at 8 Ω, 350W)

Input Sensitivity:+4dB * (1.23V)

Input Impedance: 10k Ω (Electronic Balanced)

Signal to noise ratio/S/N ratio: ≥ 80dB

Connecting Terminal Connector:

Input (CH1-2): XLR input connector; Output (CH1-2): SPEAKON output terminal; Power supply: AC power supply Input (CH1-2): XLR Input Connector; Output(CH1-2):SPEAKON Output; Power: AC power supply.

Indicator Lights:

Power display light x1 (green); Input display light x 2 (yellow); Peak display light x 2 (red); Protection circuit action display light x 1 (red) Power Indicator x 1 (Green), Input Indicator x 2 (Yellow), Peak Indicator x 2(Red); Feedback Protect Indicator x 1(Red)

Power Supply Voltage:

AC110~120V, 50/60Hz AC220~240V, 50/60Hz (using internal jumper switch/Via inside jumping switch)

1/8 Rated Activity Consumed Power: 50W, 80W, 110W

Working Temperature Range: 0~50 ℃

Working Humidity Range:

Below 90% RH/Under 90% RH (but not able to condense)
