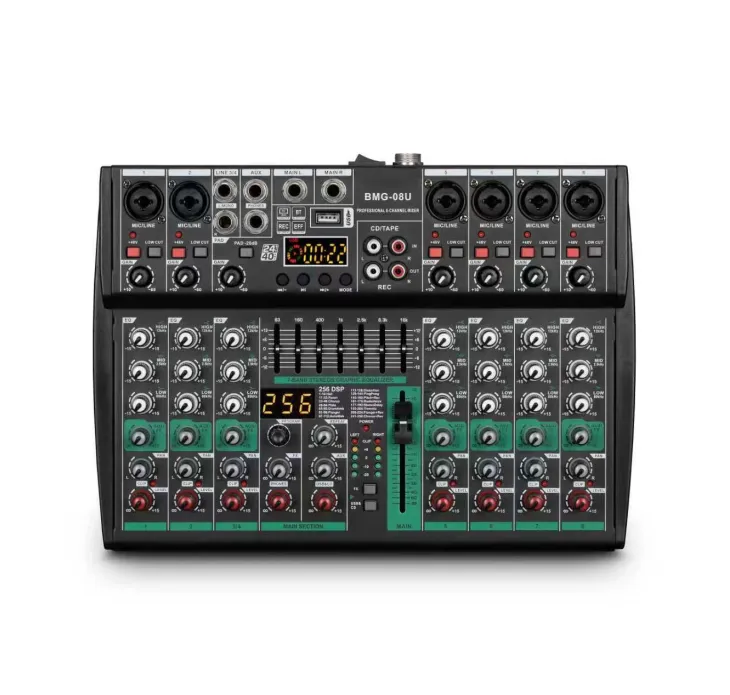

BMG-08U 8 channels professional mixing console
产品参数 / Product Specifications
型号：BMG-04U, BMG-06U, BMG-08U
参数 / Specification 详情 / Details
频响 / Frequency Response +0.5 dB/-1.5 dB (20 Hz - 48 kHz)
THD+N 0.03% @ +14dBu (20Hz-20kHz); 0.005% @ +24dBu (1kHz)
噪音 / Noise 输入: -128 dBu; 输出: -102 dBu
串扰 / Crosstalk -78 dB @ 1kHz
输入通道 / Input Channels Mono: 04U=2, 06U=4, 08U=6; Stereo: 各2路; PHONES: 1路
输出通道 / Output Channels AUX: 1路
PAD 20 dB
HPF 80 Hz, 12 dB/oct
EQ HIGH: ±15dB @ 10kHz; MID: ±15dB @ 2.5kHz; LOW: ±15dB @ 100Hz
PEAK LED 信号距削波3dB时亮起 / Lights at 3dB below clipping
电平表 / Level Meter 2x5 LED: [CLIP, +6, 0, -10, -20 dB]
数字效果 / Effects 256种预置 / 256 Presets
USB 音频 / USB Audio 2.0, 48kHz, 16-bit
幻象电源 / Phantom Power +48V
电源 / Power AC 100-240V, 50/60 Hz
功耗 / Consumption 04U: 36W; 06U: 30W; 08U: 22W
产品参数 / Product Specifications
型号：BMG-04U, BMG-06U, BMG-08U
参数 / Specification 详情 / Details
频响 / Frequency Response +0.5 dB/-1.5 dB (20 Hz - 48 kHz)
THD+N 0.03% @ +14dBu (20Hz-20kHz); 0.005% @ +24dBu (1kHz)
噪音 / Noise 输入: -128 dBu; 输出: -102 dBu
串扰 / Crosstalk -78 dB @ 1kHz
输入通道 / Input Channels Mono: 04U=2, 06U=4, 08U=6; Stereo: 各2路; PHONES: 1路
输出通道 / Output Channels AUX: 1路
PAD 20 dB
HPF 80 Hz, 12 dB/oct
EQ HIGH: ±15dB @ 10kHz; MID: ±15dB @ 2.5kHz; LOW: ±15dB @ 100Hz
PEAK LED 信号距削波3dB时亮起 / Lights at 3dB below clipping
电平表 / Level Meter 2x5 LED: [CLIP, +6, 0, -10, -20 dB]
数字效果 / Effects 256种预置 / 256 Presets
USB 音频 / USB Audio 2.0, 48kHz, 16-bit
幻象电源 / Phantom Power +48V
电源 / Power AC 100-240V, 50/60 Hz
功耗 / Consumption 04U: 36W; 06U: 30W; 08U: 22W
