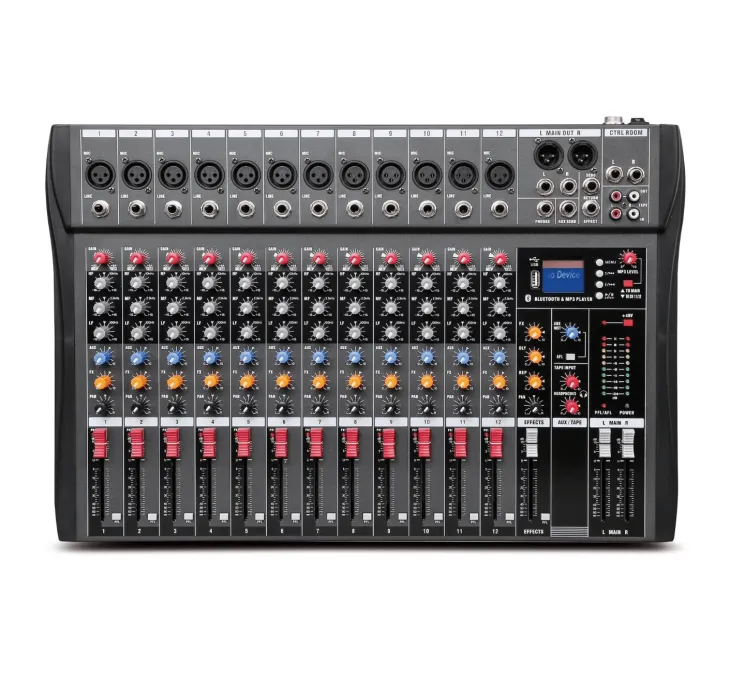

CT-120S 12-channel professional mixer
Ultra-thin design, 12 monophonic channels, three-segment balanced channel, one set of auxiliary send, one set of effect send, built-in digital effector, 60mm precision push-pull potentiometer.
Specification (technical parameters):
▲ Maximum output level: 19dBm (1KHz, THD=0.5%)
▲ Residual noise: -105dB
▲ Signal to noise ratio: ≤ 80dB
▲ Equivalent noise source input electromotive force: -115dBm
▲ Headphone output power: 100mw (1KHz, THD=0.5%, 200Ω)
▲ Equalization: Low frequency: 80Hz ±15dB
Intermediate frequency: 2.5KHz±15dB
High frequency: 12KHz ±15dB
▲ Gain control: Mono: -60dB~-40dB
▲ Frequency response: 20Hz~20KHz(±3dB)
▲ Total harmonic distortion + noise: ≤0.003% (1KHz, 0.775V)
