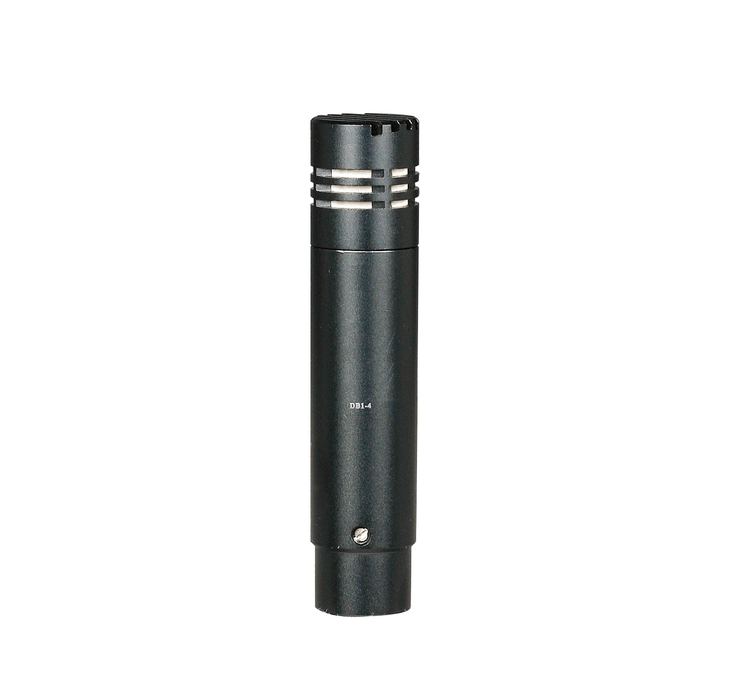

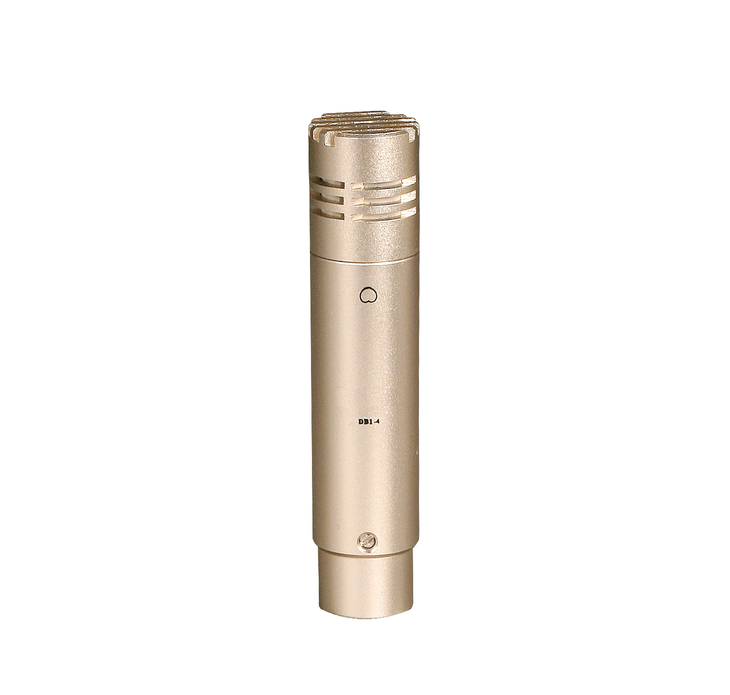

DB1-4 Capacitive recording microphone
Gold-plated, Mylar diaphragm, single-pointing, low noise, low distortion, broadband response, 48V phantom power supply, gold-plated three needles, balanced output, suitable for recording studios and various live performance occasions.
Main parameters:
Directivity: Heart
Sensitivity: 20mV/Pa (-32dB+2dB)
Frequency range: 40-20000Hz
Resistance: <200_
Equivalent noise level: 13dB (A weighting)
SNR: > 96
Maximum Sound Pressure Device: 130dB (1KHz, Distortion < 1%)
Power supply: 48V phantom power supply
Volume: 22 x 100 mm
