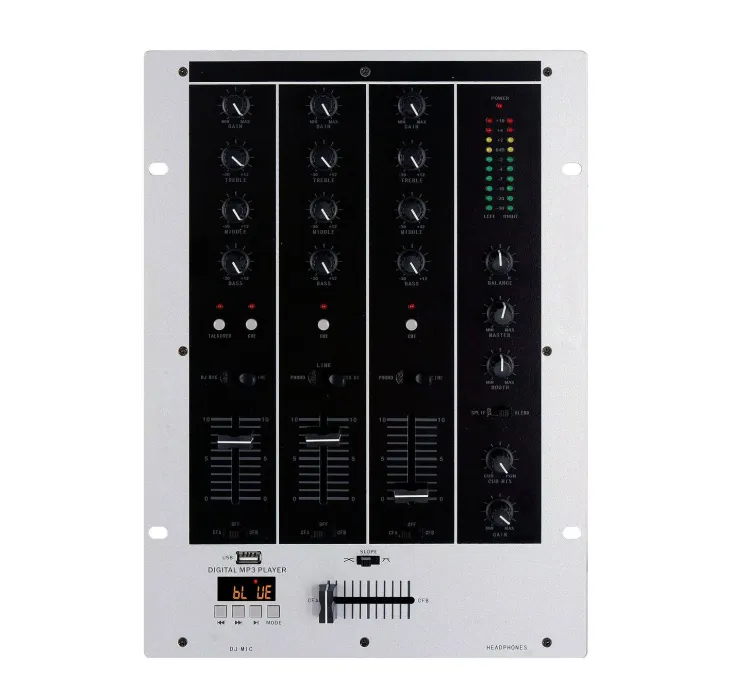

DDJ-3USB 3 Channel DJ Mixer
The DDJ-3USB is a 3-channel mixer with a total of 9 inputs (3 phono, 3 Line and 3 Mic) and gain controls, complete with 3-band system EQ. Also featured are talkover switch, cue button, and headphone jacks for monitoring. The 12V light jack is ideal for working in clubs. The DDJ-3 is a great mixer for beginning or veteran DJs.
With USB, Bluetooth and MP3 functions.
Modes: DDJ-3
Input: 2 Phono, 3 Line, 2 mic
Output: 2 Master, 1 Booth via RCA
Minimum Input Voltage
Output = 1Vrms
Phono: 0.85mV
Line: 50mV
Microphone: 0.4mV
Line: 6.8Vrms
Headphone: 0.3W
Frequency Range: +/-3dB
Phono: RIAA Standard +/-3dB
Line: 20Hz-20kHz
Microphone: 20Hz-18kHz
Distortion: 0.01%
S/N Ratio: With JIS-A Weight
Phono: 82dB
Line: 97dB
Microphone: 89dB
Talkover Attenuation:-16dB
Headphones Impedance: 33 Ohm
Tone Control:- Treble (dB) +10/-30
Middle (dB):+10/-30
Bass (dB):+10/-30
eala (3D Surround): -Bass Effect -
Dimension W X D X H (mm) 254 X 355 X 99
Weight 4.5 Kgs
Gross Weight: 5 Kgs
