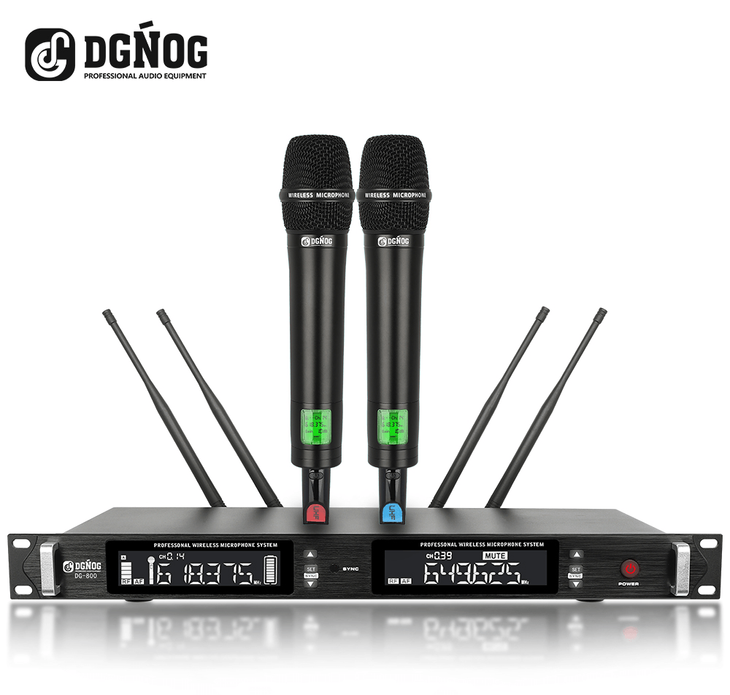

DG-800 2CH UHF wireless microphone
window intercom systemDG-800 system uses UHF frequency band to transmit signals, which can prevent wireless microphones from being blocked by signals or being interfered by signals of other frequencies. The automatic frequency adjustment device receiver with patented technology automatically scans the entire receiving frequency band, and automatically adjusts to the outside world. The disturbed frequency, and then use the infrared transmission method to send the frequency setting parameters to the transmitter, so that the transmitter will lock according to the frequency set by the receiver. the
LCD display, using infrared frequency matching technology, 80 frequencies are optional for each channel, a total of 200 frequencies. Chassis specification: standard 1U chassis
Number of Channel Groups: Dual Channel
Carrier frequency band: UHF 513~558MHz / 615-665MHz/ 780-820MHz
Modulation method: FM
Oscillation mode: PLL phase-locked frequency synthesizer
Frequency stability: ±0.0005%
Sensitivity: When the offset is equal to 25KHz and the input is 6dBμV, S/N>60dB
Maximum offset: ±45kHz
Frequency bandwidth: 40MHz
Comprehensive S/N ratio: >108 dB
Combined T.H.D. : <0.4% @ 1 KHz
Integrated frequency response: 65Hz~18kHz ± 3dB,
Maximum output voltage: balanced: -20dBV/100Ω,
Unbalanced: -4dBV/5KΩ.

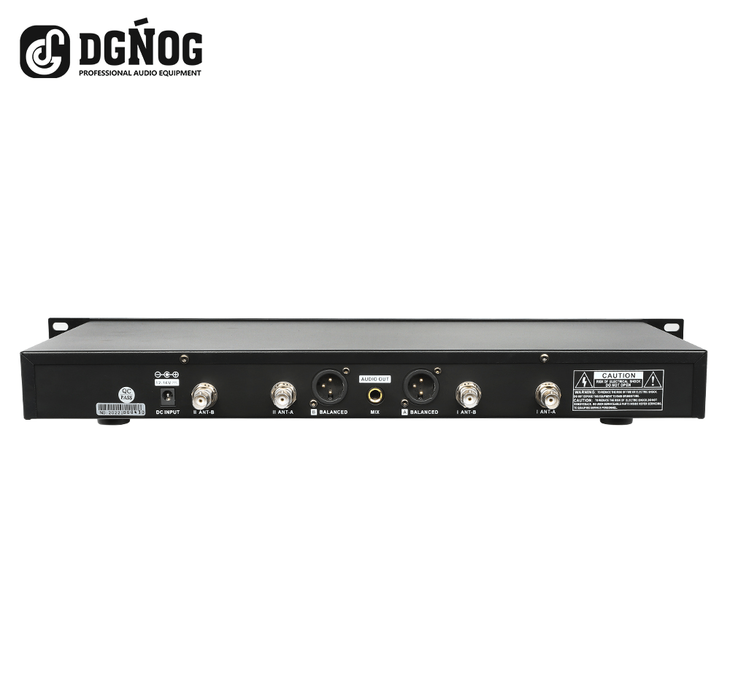

Output socket: XLR balanced and 6.3φ unbalanced socket
Effective working distance: generally 100 meters (open space)
Power supply: 100 - 240V AC50/60Hz, 10W
Weight: 4.3KG

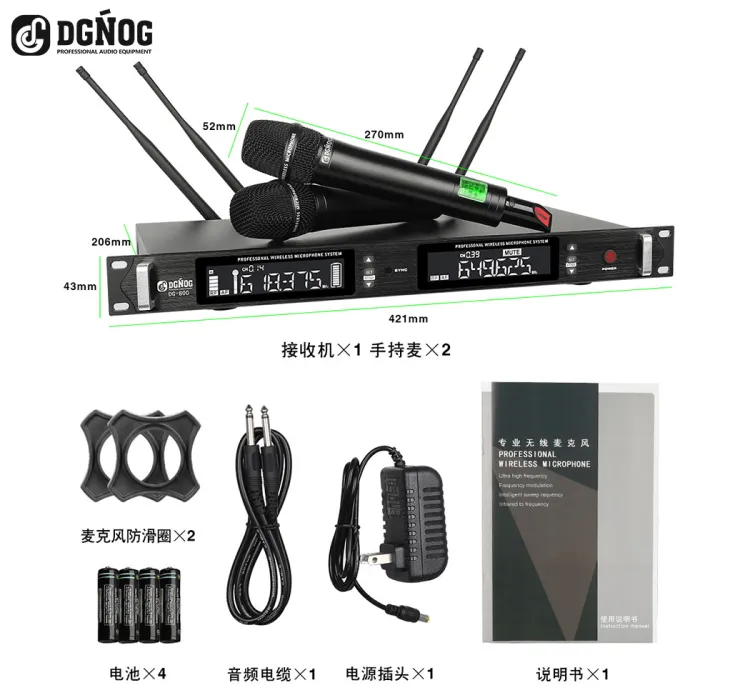

Dimensions (mm) : 421 ( L ) × 43 ( H ) × 206 ( W ) Carrier frequency band: UHF 513~558MHz / 615-665MHz/ 780-820MHz

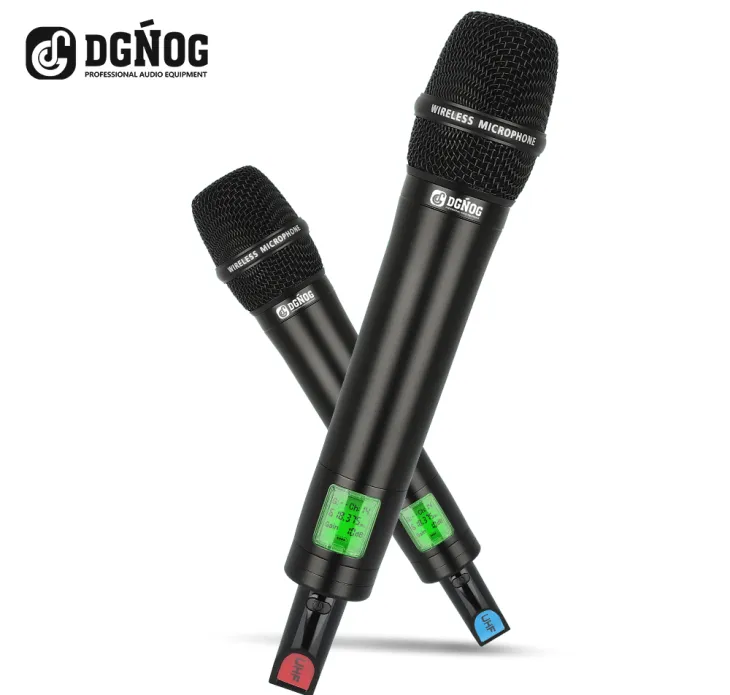

Oscillation mode: PLL phase-locked frequency synthesizer
Harmonic radiation: < -63dBm
Frequency bandwidth: 80MHz
Maximum offset: ± 45KHz
Power output: 3 0mW
Frequency response: 50Hz~18KHz
Maximum input sound pressure: 130dB SPL

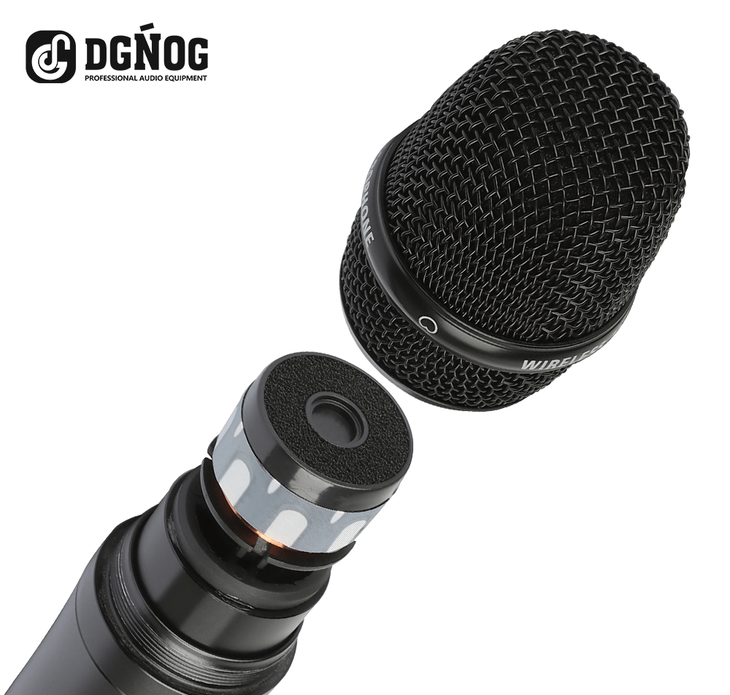

Sound head: moving coil
Battery: AA×2
Current Consumption: <110 mA
Dimensions (mm) : 265mm lo× 56mm diameter
