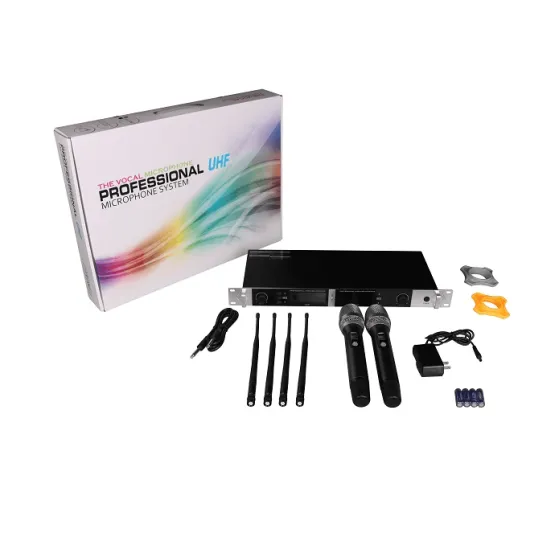

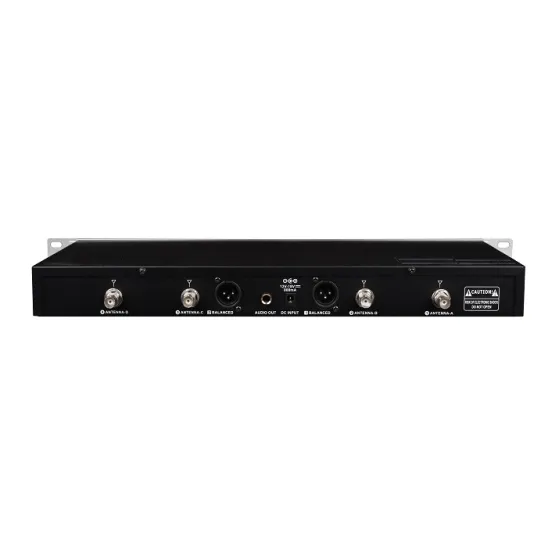

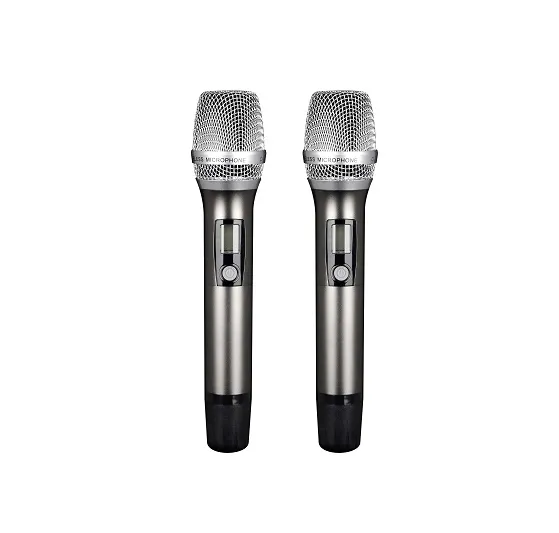

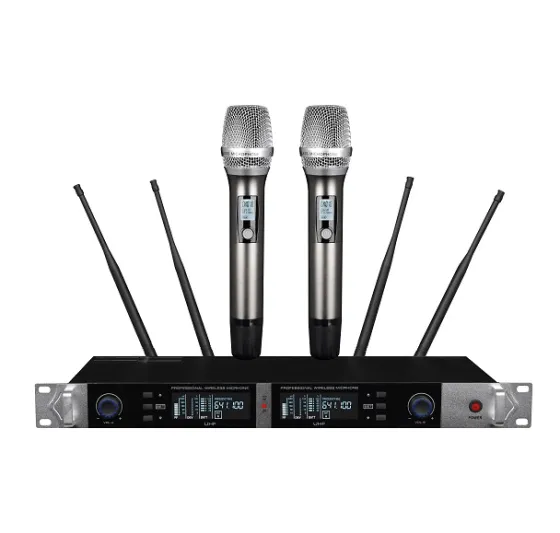

DG-8002 2 Channel Wireless Microphone
The product uses the latest transmitter chip Bk9531, the maximum transmission power is 14dBm
Microphone gain range: o~47.5dB per step 0.5dB audio AGC and limiter
Dedicated GplO indicates the energy of the transmitted audio signal (GP丨o3), automatic noise suppression
Support dual-frequency diversity transmission, support external PCM/l|s dual-mode digital audio interface
Working voltage 2.8~3.6V
Working frequency 515~580MHz
Digital modulation method Pi/4DQpsk occupies bandwidth,
<300KHz transmission rate 204.8ksps,
Audio signal-to-noise ratio is 96dB, frequency response is 30~20kHz,
1 byte dedicated data channel 7kbpS,
The internal CRc check audio and data are transmitted with 32-bit encryption.
Features of receiver chip B9532:
Receiving sensitivity: 99dBm
Maximum support 4 antenna diversity
Antenna automatic selection
RF AGC and AFC,
Dedicated GPlO indicates the energy of the received audio signal
Dedicated GPl0 indicates the synchronization status of sending and receiving
Two-band digital reverb, 15-band digital audio equalization
Active/passive anti-howling and packet loss compensation mechanism.
In normal use, the receiving distance can reach 200 meters.
The product uses the latest transmitter chip Bk9531, the maximum transmission power is 14dBm
Microphone gain range: o~47.5dB per step 0.5dB audio AGC and limiter
Dedicated GplO indicates the energy of the transmitted audio signal (GP丨o3), automatic noise suppression
Support dual-frequency diversity transmission, support external PCM/l|s dual-mode digital audio interface
Working voltage 2.8~3.6V
Working frequency 515~580MHz
Digital modulation method Pi/4DQpsk occupies bandwidth,
<300KHz transmission rate 204.8ksps,
Audio signal-to-noise ratio is 96dB, frequency response is 30~20kHz,
1 byte dedicated data channel 7kbpS,
The internal CRc check audio and data are transmitted with 32-bit encryption.
Features of receiver chip B9532:
Receiving sensitivity: 99dBm
Maximum support 4 antenna diversity
Antenna automatic selection
RF AGC and AFC,
Dedicated GPlO indicates the energy of the received audio signal
Dedicated GPl0 indicates the synchronization status of sending and receiving
Two-band digital reverb, 15-band digital audio equalization
Active/passive anti-howling and packet loss compensation mechanism.
In normal use, the receiving distance can reach 200 meters.
