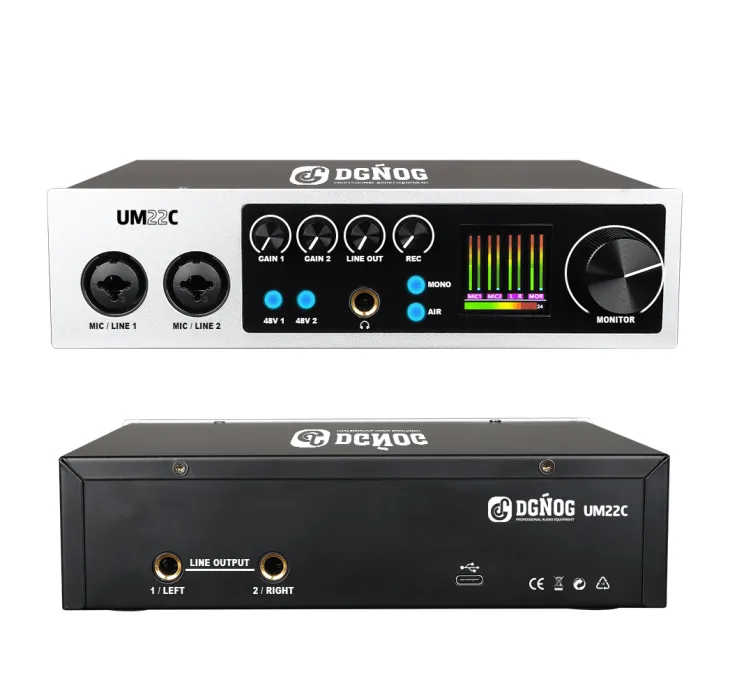

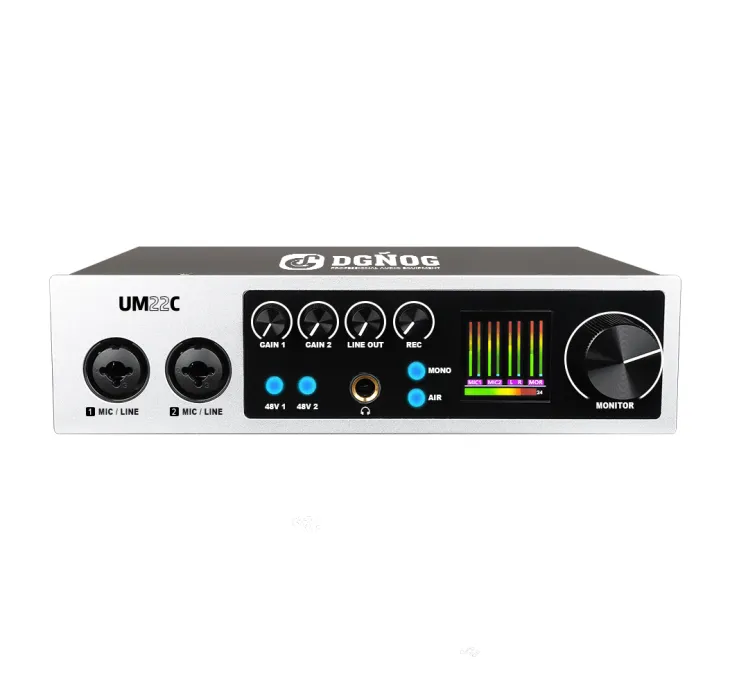

DGNOG UM22C USB-C Audio-Interface
Summary of selling points of DGNOG UM22 USB-C audio interface
1. High-quality audio performance: high-end A/D and D/A converters, supporting up to 192kHz sampling rate and 32-bit depth, suitable for professional recording needs.
2. User-friendly control panel: Intuitive and easy-to-use control panel, including gain, volume, sample rate, depth, etc., makes audio recording and editing easy for novices.
3.Flexible input and output: 2 analog inputs and 2 analog outputs, supporting multiple interface types, including XLR, TRS and RCA, to meet various recording needs.
4.Low Latency: Digital DSP chip provides dynamic balance, ultra-low latency and clear sound quality, suitable for professional recording and performance.
5.Durable Design: Sturdy metal housing and high-quality components provide excellent durability and stability, independent power adapter ensures stable operation.
6.Latest driver chip technology: support Windows 10 and Apple's plug-and-play, no need to install any driver, and provide ASIO driver.
7.Free software packages: including free audio software packages such as Pro Tools First, Tracktion T7 and BIAS FX LE, it is convenient for users to record and produce professional-level audio.
Technical Parameters:
AD/DA conversion IC of Japan AsahiKASEI company, fully differential input, the highest sampling rate reaches 768 kHz, 32bit;
The digital DSP chip of American ADI company has good dynamic balance, ultra-low delay and clear sound
USB interface chip from Taiwan Comtrue company, support IOS, Android, Windows, OS system, professional sound card ASIO driver; sampling rate supports 44.1KHz ~192KHZ; 16bit~32bit;
Output parameters:
L-R output up to 5V;
Monitor supports 16 ohm or 32 ohm headphones, the maximum power is 220mW
Mic S/N (Signal to Noise Ratio): 115dB/Signal to Noise Ratio: 115dB;
Mic adjustable gain:+40dB/Microphone maximum gain: 40dB;
S/(N+D): 106 dB/Signal to Noise and Distortion Ratio: 106db
Process parameters:
All metal construction, the control panel adopts aluminum sandblasting process
The knob is made of metal aluminum with precision workmanship
The display adopts 1.54 inch LCD isp full viewing angle
