Basic Specifications

• Host Dimensions: 258 × 166 × 43 mm

• Weight: Not Provided

• Color: Not Provided

Audio Performance

• Overall Frequency Response: 50 Hz - 18 kHz

• Receiving Sensitivity: -98 dB

• Maximum Frequency Deviation: ±25 kHz

• Microphone Capsule Type: Dynamic

Wireless System

• Carrier Frequency Band: UHF 470 - 960 MHz

• Modulation Method: PLL Synthesized Control

• Reception Method: Digital Transmission

• Frequency Adjustment: Digital Tracking Adjustment

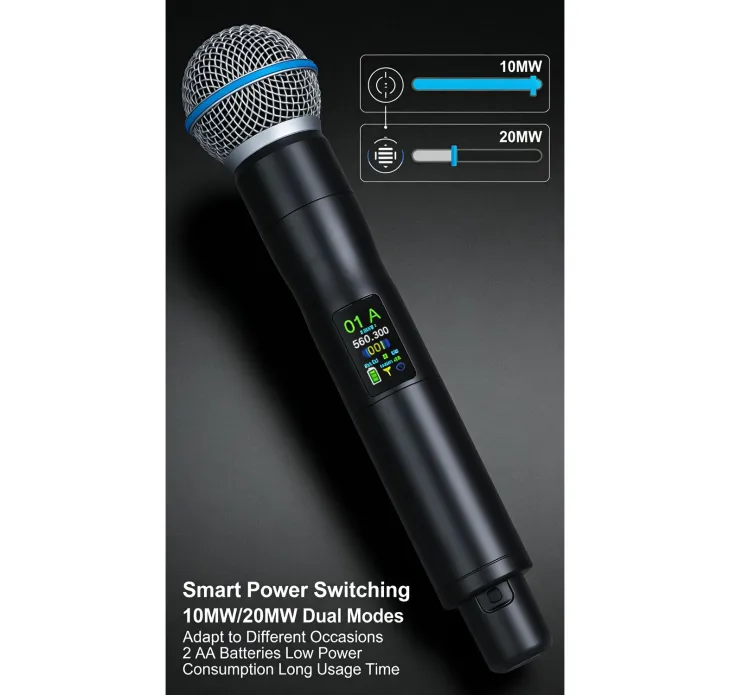

• Transmitter Power Output: 10 mW / 20 mW (Switchable)

• Operating Range: Approx. 100 meters (open area)

Power Supply & Consumption

• Receiver Power: DC 12-15V, 500 mA

• Transmitter Power: 2 × 1.5V AA Batteries

• Transmitter Current Consumption: 120 mA

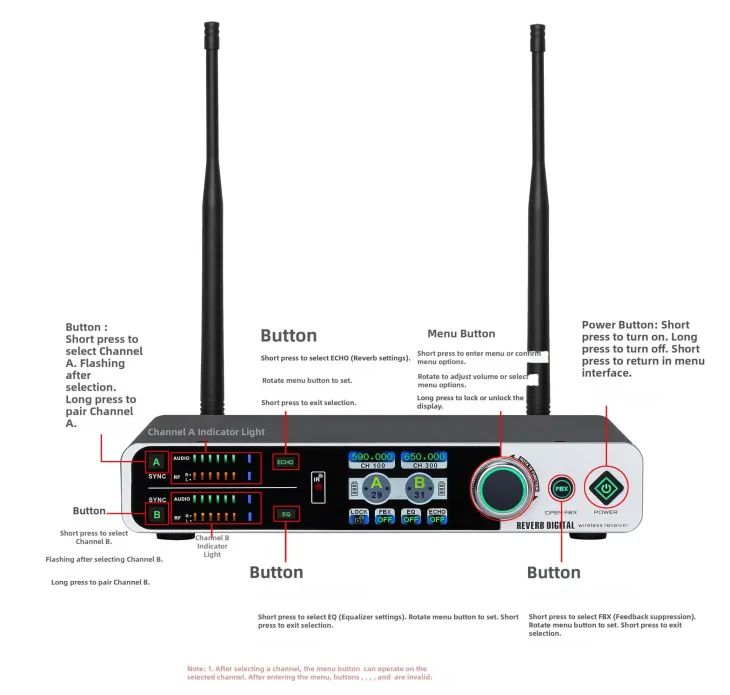

Connections & Features

• Output Connectors: Parallel/Mixed Output

• Display Panel: Color TFT Screen with Auto Frequency Scan

• Built-in Spectrum Analyzer: Real-time interference frequency scanning

• Audio Processing: Built-in Feedback Suppressor, Adjustable Reverb, Equalizer (EQ)
