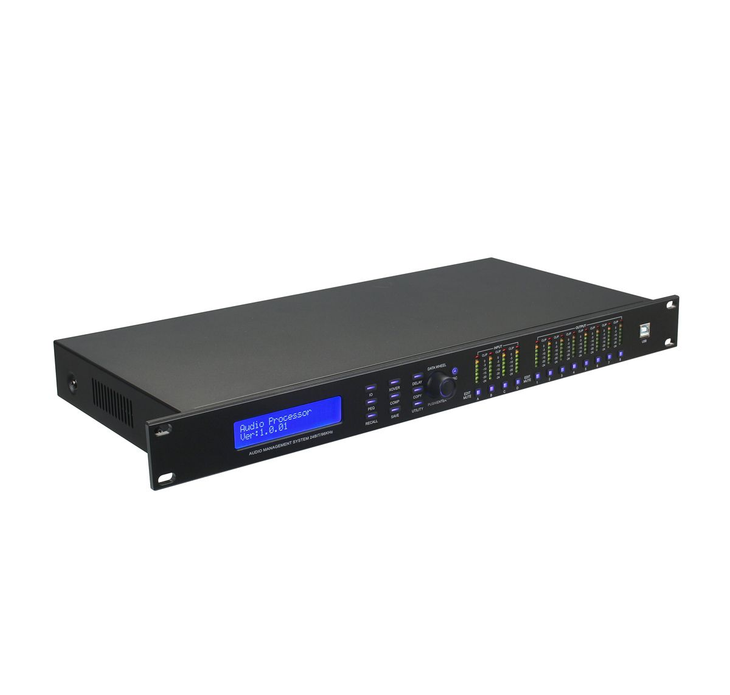

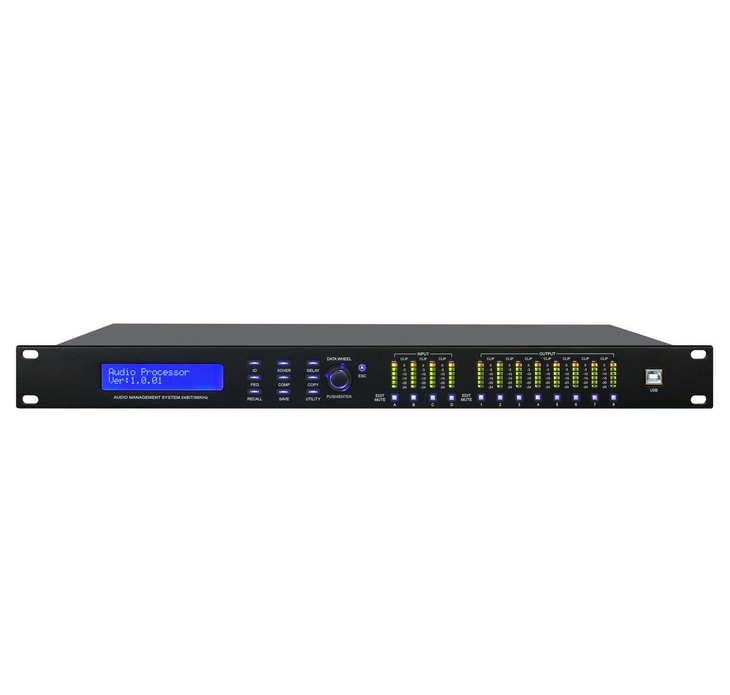

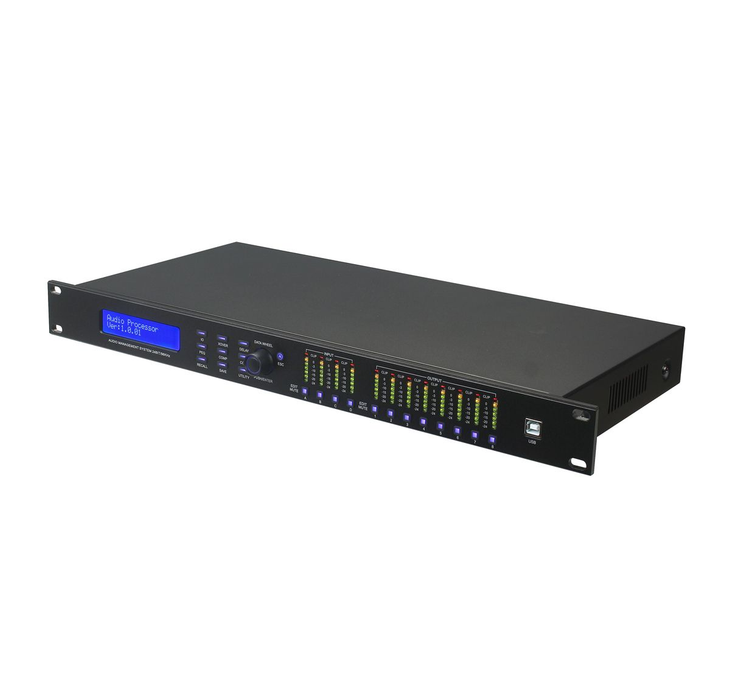

DSP-408 Audio Processor
DSP-408
Introduction:
Based on XMOS advanced 16-core processor, 96K/24-bit audio sampling.
Ultra-low loop latency (Round trip latency), below 0.8ms.
Utilizes AKM Premium ADC AK5554 and DAC AK4458, 96K/24-bit audio sampling, with a measured audio SNR of 108.6dB unweighted (112dB A-weighted), and THD+N: < -103dB.
4 inputs and 8 outputs, allowing flexible configuration for various audio systems.
Each input channel features gain, phase, delay, mute, dynamic expansion, 10-band parametric EQ, while each output channel includes gain, phase, crossover, compression/limiting, mute, delay, and 8-band parametric EQ.
Maximum input/output delay of up to 1000ms, with delay units selectable as milliseconds (ms) or meters (m). Full routing between input and output channels is supported, with synchronized parameter adjustment across multiple output channels and channel parameter copy functionality.
Adjustable high/low-pass filter slopes: Bessel (6dB, 12dB, 18dB, 24dB, 30dB, 48dB per octave), Butterworth (6dB, 12dB, 18dB, 24dB, 30dB, 48dB per octave), and Linkwitz-Riley (6dB, 12dB, 18dB, 24dB, 30dB, 48dB per octave).
Maximum input/output level: 14dBu.
Multi-level user permission management, with superuser rights to manage other user permissions.
Scene editing and saving functionality, supporting up to 32 scenes.
Independent editing of scene and channel names, supporting both Chinese and English.
Multi-device cascading capability, supporting up to 65,534 devices, each with a unique MAC address.
RS485 remote parameter control, tested for distances over 500 meters.
USB control panel, no driver installation required, compatible with Windows XP and Windows 10 (32-bit/64-bit).
Technical Specifications:

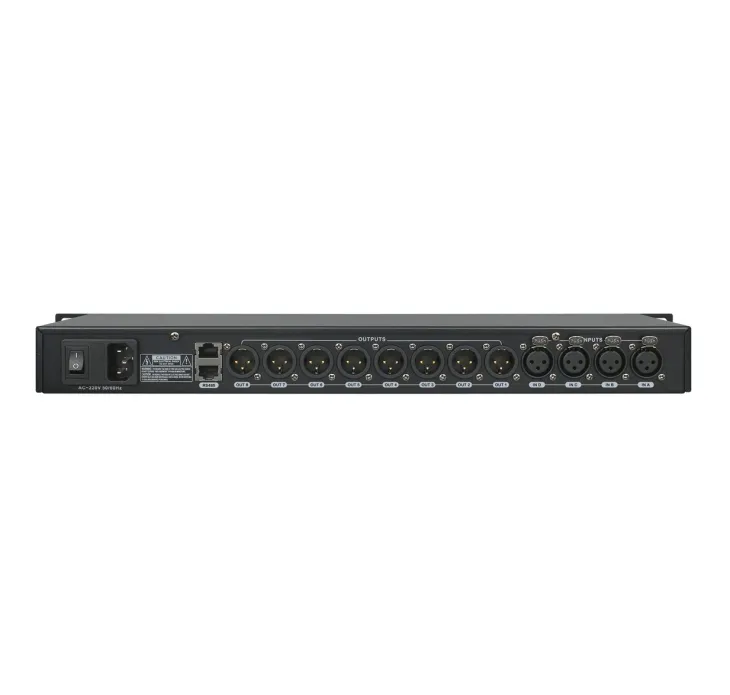

Input Interface: XLR balanced input
Maximum Input Level: +8dBu/2Vrms
Input Impedance: 20kΩ
Crosstalk: < -100dB
Output Interface: XLR balanced output
Maximum Output Level: +8dBu/2Vrms
Output Impedance: 33Ω
Crosstalk: < -100dB
THD+N: < -103dB
SNR: 112dB A-weighted, 108.6dB unweighted
Frequency Response (20Hz-20kHz): ±0.5dB
Input/Output Gain (all software parameters reset to factory settings): ±0.5dB
Power Supply: AC 220V ±10%, 50Hz/60Hz
Rated Power Consumption: <20W
Weight: 3.5kg
Dimensions: 480mm × 205mm × 45mm
