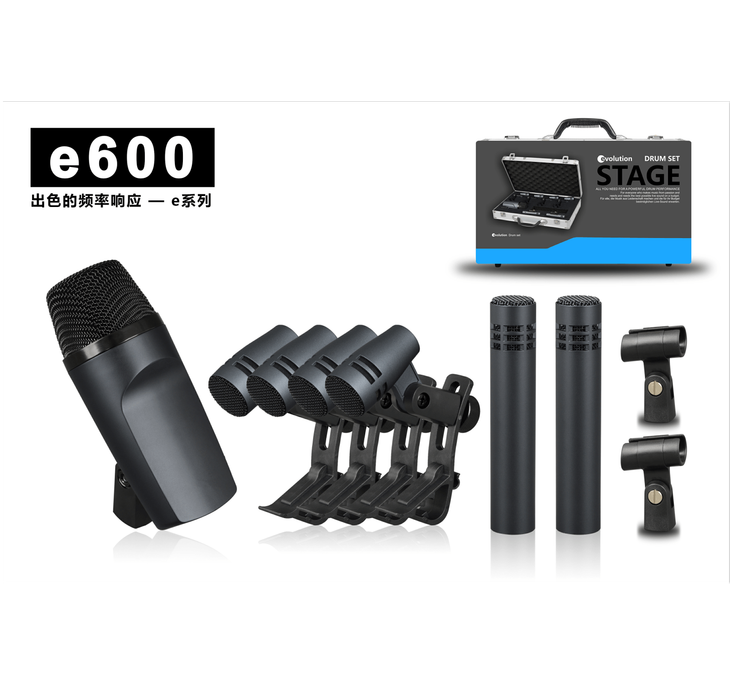

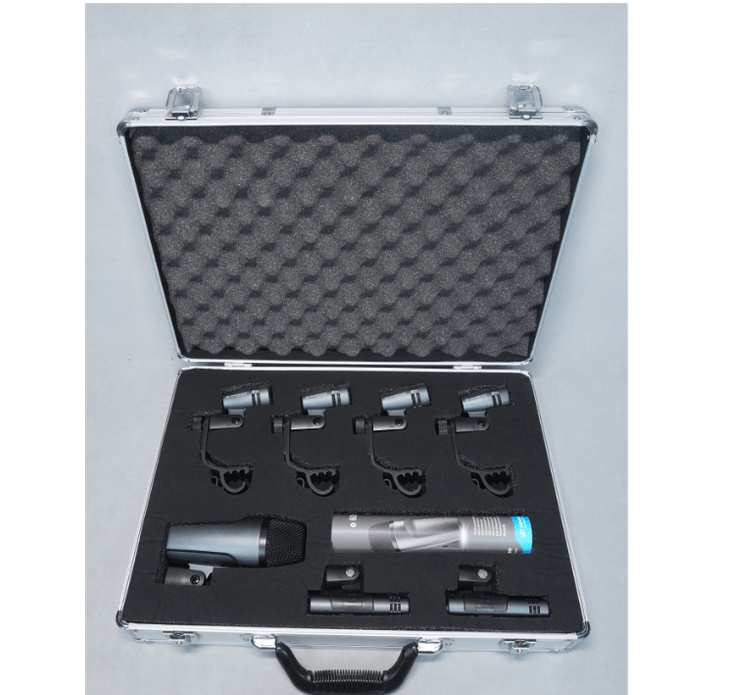

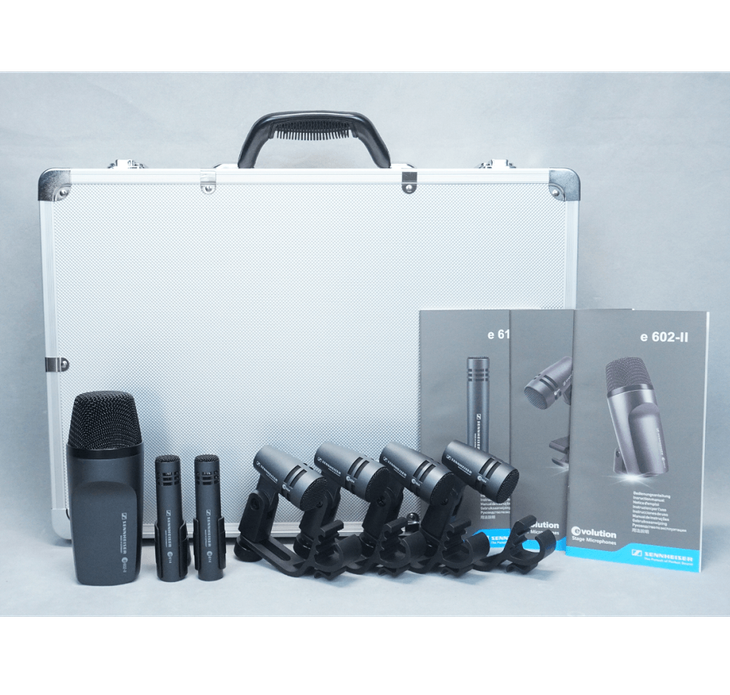

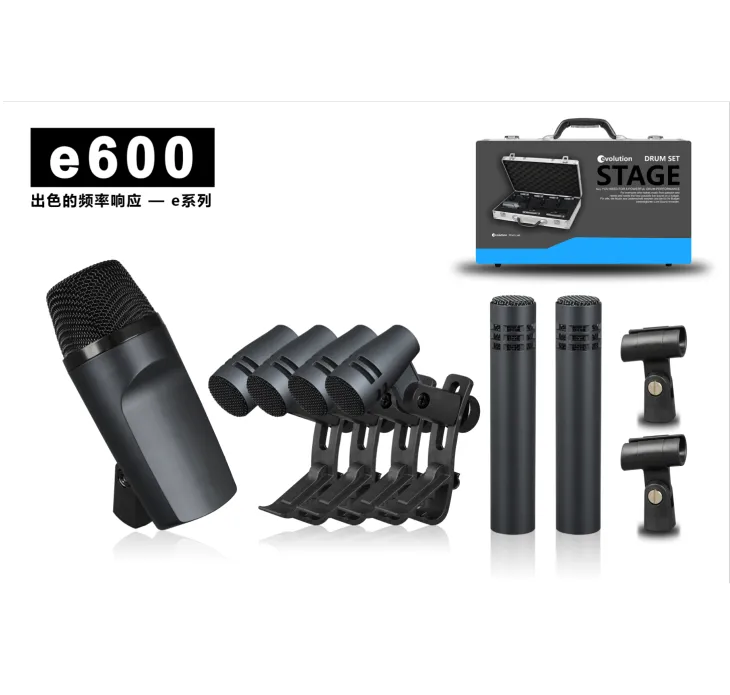

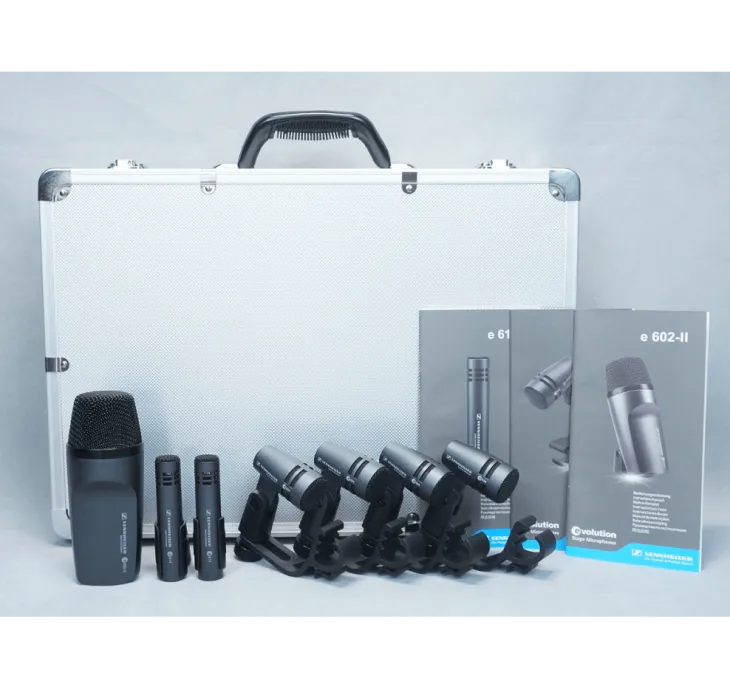

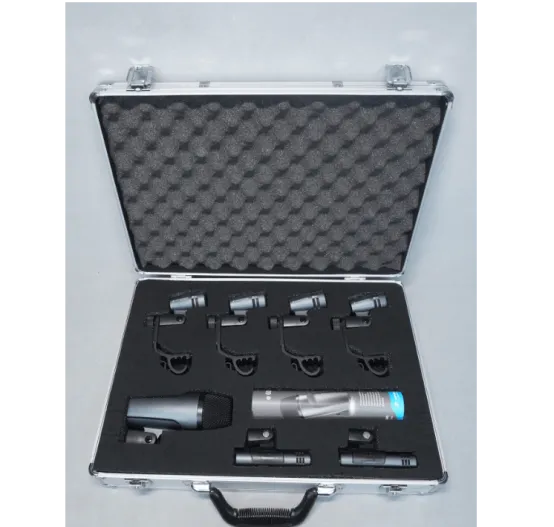

e600 Drum MIC set concertl
e600Technical parameters
Type:e602-II bass
Dynamic microphone
Technical Parameters:
Directional:Hypercardioid at 1KHz
Frequency response:60-13KHz
Weight): 22(±1)g
Measurement condition)
Ambient temperature): 20 ± 2 ℃
Reference sound pressure level:1Pa ( 94 dB SPL at 1 KHz )

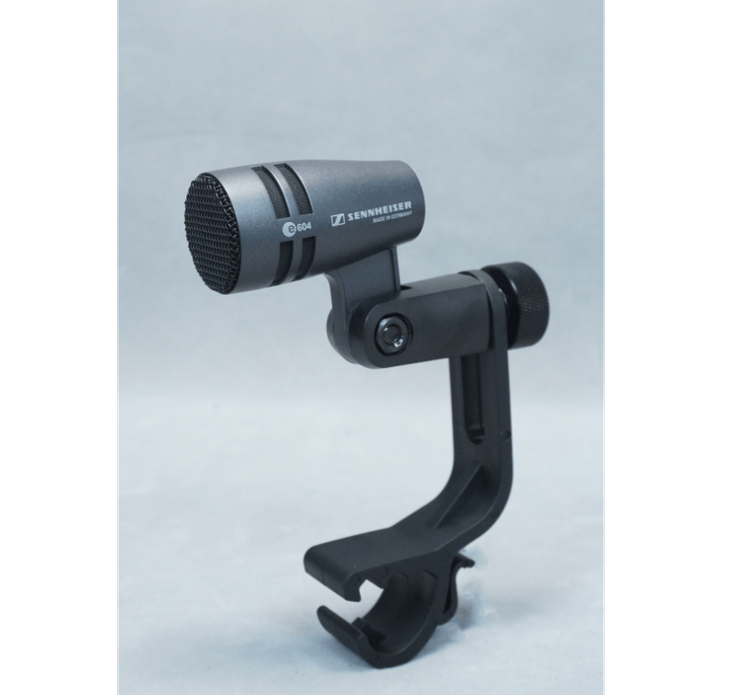

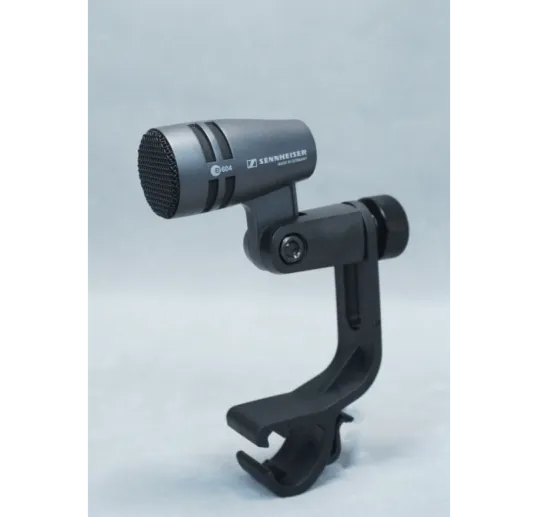

Type:e604 sanre or tom/toms
Dynamic microphone
Technical Parameters:
Sensitivity): -50(±3)dB(at 1KHz)(0dB=1V/Pa)
Impedance): 600(±15%)Ω(at 1KHz)
Directional): Hypercardioid(at 1KHz)
Frequency response:80-18KHz
Weight: 22(±1)g
Measurement condition
Ambient temperature): 20 ± 2 ℃
Reference sound pressure level:1Pa ( 94 dB SPL at 1 KHz )

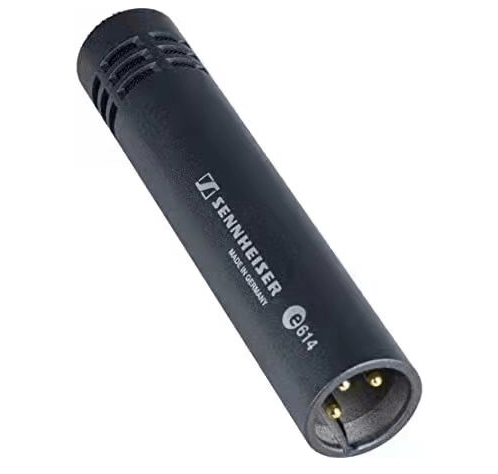

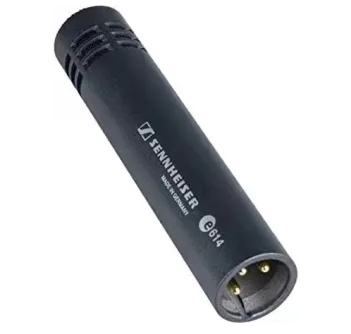

Type:e614 : condenser instrument mic
Directivity: heart-shaped (single point)
Output impedance: ZOUT, f = 1 KHZ, the maximum 680 Ω
Frequency range: 50 hz - 20 KHZ
Sensitivity: f = 1 KHZ. S.P.L = 1 Pa. 0 db = 1 v/Pa, minimum - 44 db, center value - 42 db, the maximum - 40 db
Current consumption: the Vcc = 1.5 v, RL = 680 Ω, minimum 150 ua, maximum 500 ua
Operating voltage: 1.5 V to 10 V
