FX50 Pre-effector

SKU:
V10018
Available:
In stock

◎ Professional pre-amplifier adopts dual-mode reverb processing, which makes the vocal effect more abundant, natural and transparent. It is a high-fidelity smooth natural sweet style stereo dual reverb and multi-purpose karaoke effect. The output has front (rear) left and right channels, center channel, and subwoof frequency channel. And it is very simple and convenient to use like karaoke amplifier.

◎ High-grade aluminum alloy panel is transported, 1U ultra-thin design, using karaoke adjustment to make debugging more convenient and easy.

◎ The microphone is equipped with 6-band parameter equalization adjustment, the adjustment range is wider, the sound is more delicate and soft, and the original tone is not damaged, the single-band sound quality effect is improved, and the howling frequency is effectively processed.

◎ Subwoof channel output design with crossover point and adjustable output gain; Subwoof channel has a perfect anti-low-frequency self-excitation circuit, when entering the MIC, the low-frequency signal output port is automatically attenuated by half to prevent low-frequency howling and damage to the device ; With microphone does not enter the Subwoof channel function.

◎ The center output channel design can choose music/reverb ratio or pure human voice; and can independently control the volume and high, medium and low frequency adjustment.

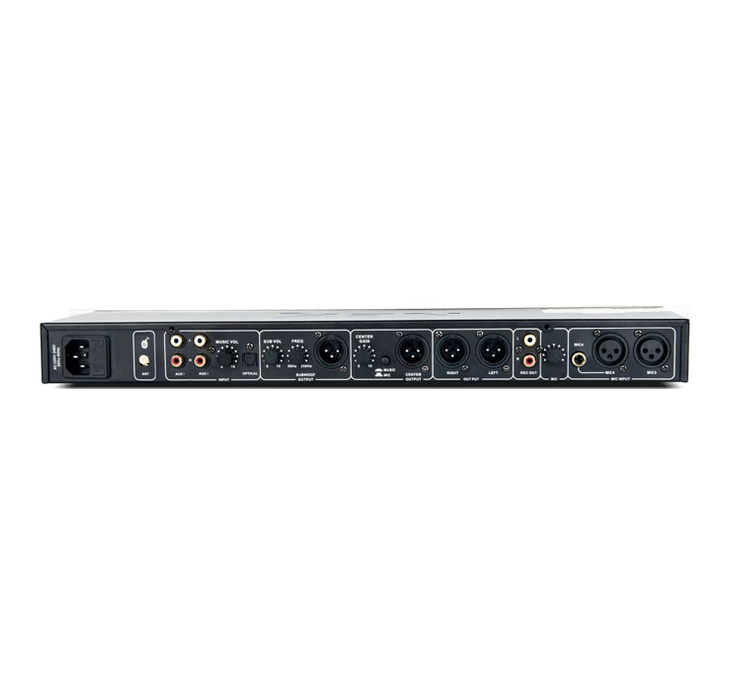

◎ There are 5 channels of MIC input, 2 channels on the front and 3 channels on the rear panel.

◎ This machine has Bluetooth audio input, optical fiber input, USB input.

◎ LED display screen, switch on/off display trademark, four sets of output with spectrum jump.

◎ Signal to noise ratio/left and right channels (1KHZ, 0dB): 90dB

◎ Total harmonic distortion: 1KHz-3dB 0.03%

◎ Sensitivity: MIC: 6mv/4KΩ AUX: 280mv/30KΩ

◎ Frequency: MIC: 40Hz-15kHz + 1 / -6dB

◎ Tone: Music: Bass: + 10dB (100Hz)

◎ Center channel: 87dB

◎ Subwoof channel: 87dB

◎ Separation: 75dB

◎ Sound quality adjustment range/music bass: ±10dB(100HZ)

Treble: ±10dB(10KHZ)

◎ Microphone bass: ±10dB(100HZ)

Treble: ±5dB(10KHZ)

◎ Double echo effect: output level: 2.8V/KΩ

◎ Microphone squelch threshold: over-voltage 3MV, start-up time 3S

◎ Distortion (1KHZ, 30MV): 0.03%

◎ Power: 25W

◎ Dimensions: 482 (length) x47 (height) x163 (width) mm

◎ Net weight: 2.1KG

◎Total weight: 2.5KG
