Chassis specifications: standard 1U chassis

Number of channel groups: single channels

Carrier frequency band: 513-558HHZ 615-665MHZ 780-820MHZ (other frequency bands can be customized)

Modulation: FM

Oscillation mode: PLL phase locked frequency synthesizer

Sensitivity: S / N> 60dB when the offset is equal to 25KHz and input 6dBuV

Offset; ± 45kHz

Band width: 24MHz

Comprehensive S / N ratio:> 100 dB

Comprehensive T.H.D .: <0.5% @ 1 KHz

Comprehensive frequency response: 50Hz ~ 18kHz ± 3dB.

Input voltage: balanced: -20dBV / 100Q unbalanced: -4dBV / 5KQ

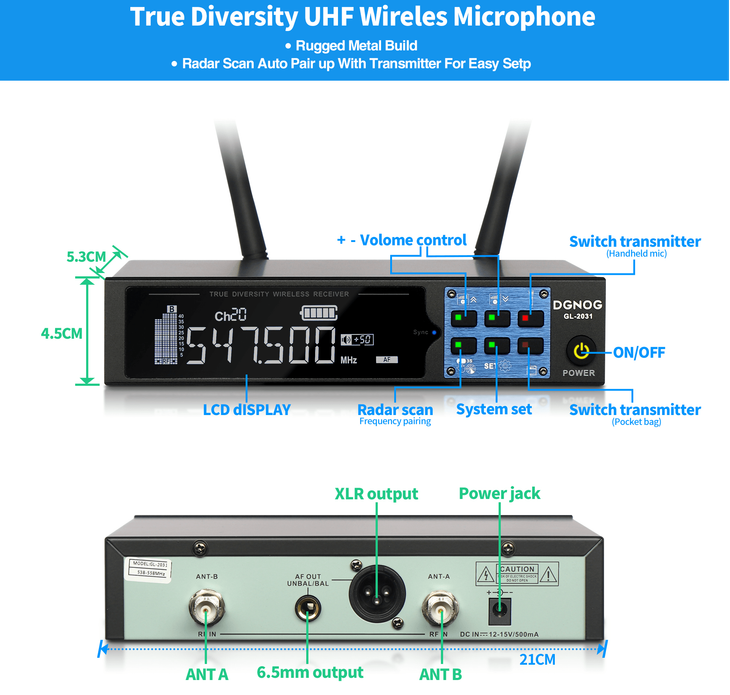

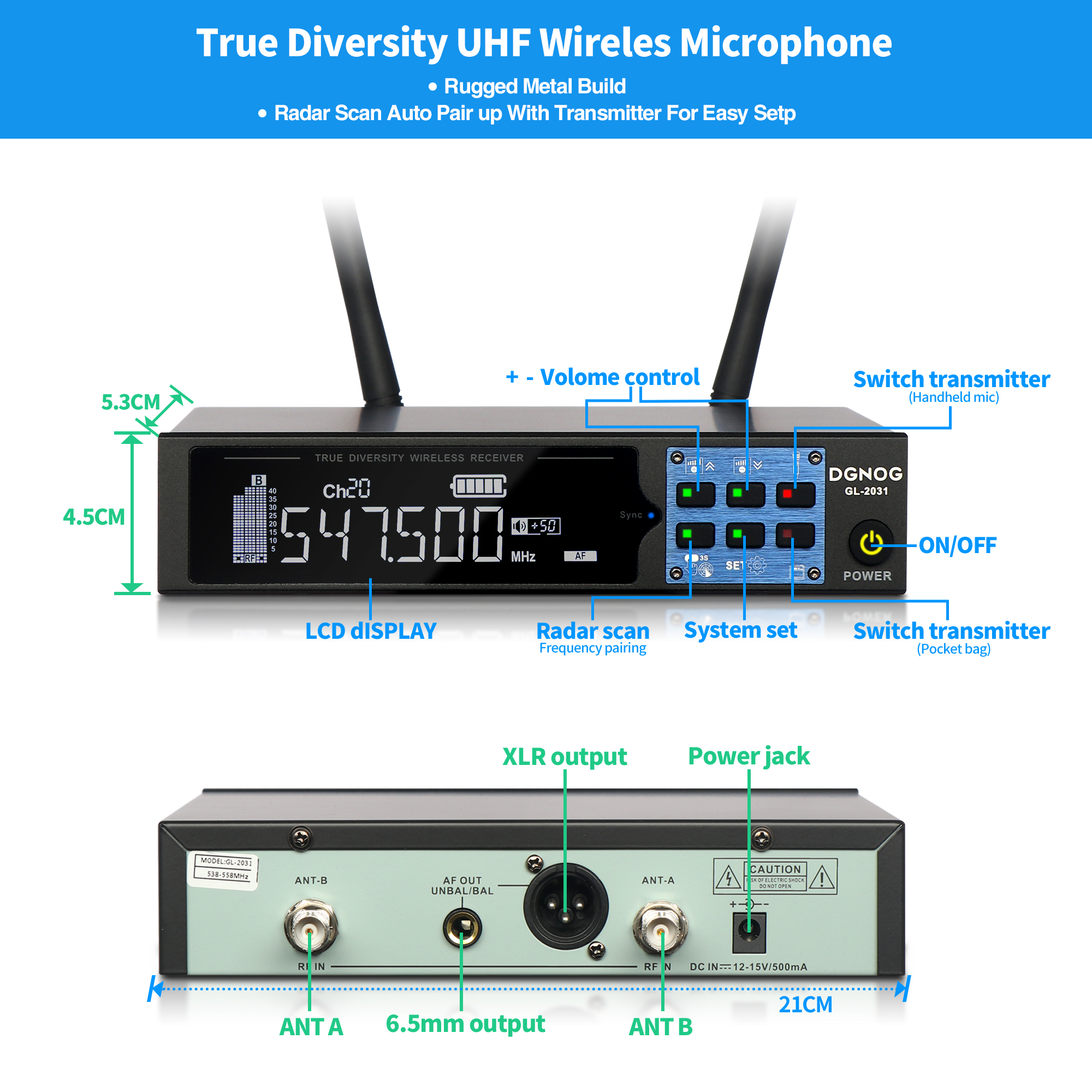

Output socket: XLR balanced and 6. 3 0 unbalanced socket

Temperature range: -10 ° C to + 55 ° C

AC power supply: 0.5-1A, 12-15V DC

Heavy; Digital Pilot True Diversity Edition Size: Digital Pilot True Diversity Edition Approx. 2500g Approx. 480 (W) X45 (H) X190 (D) mm

Thinning mode: PLL phase lock rate synthesis 8S

Power output: 10mW

Frequency response: 50Hz ~ 18KHz

Input sound pressure: 130dB SPL

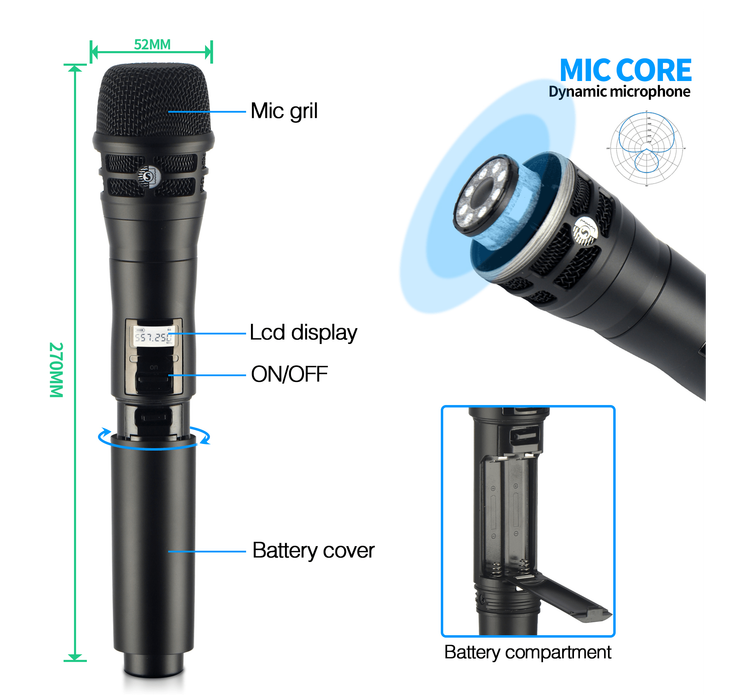

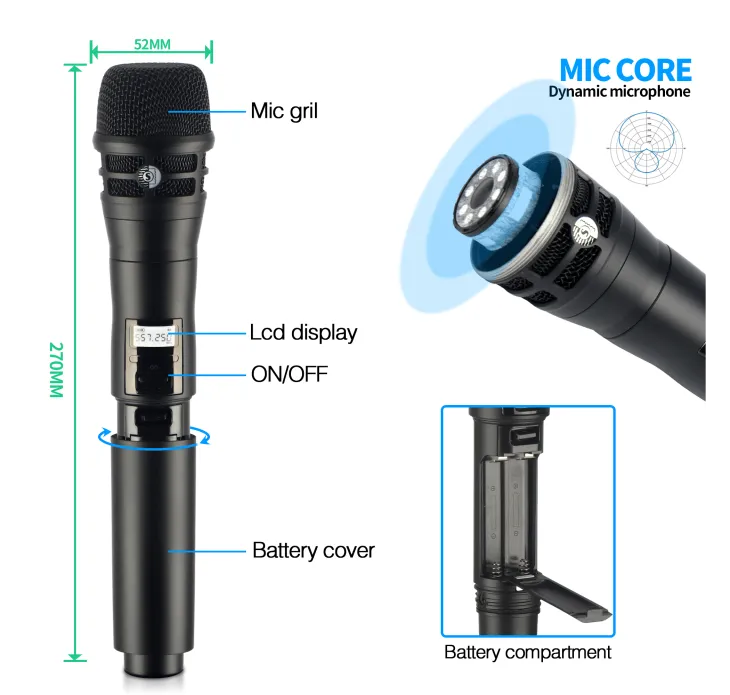

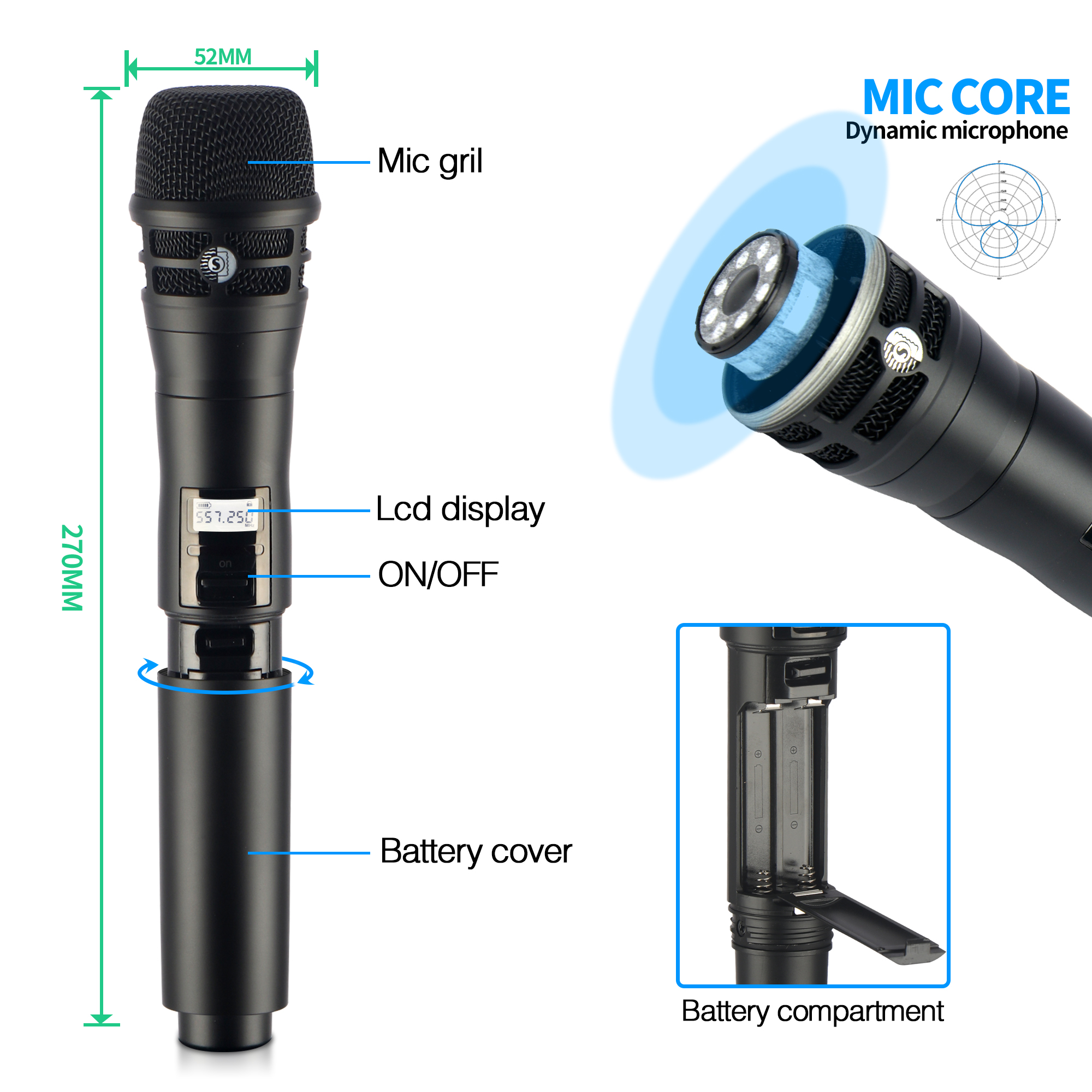

Voice head: dynamic coil type

Battery: AAX2

Current consumption: <110 mA
