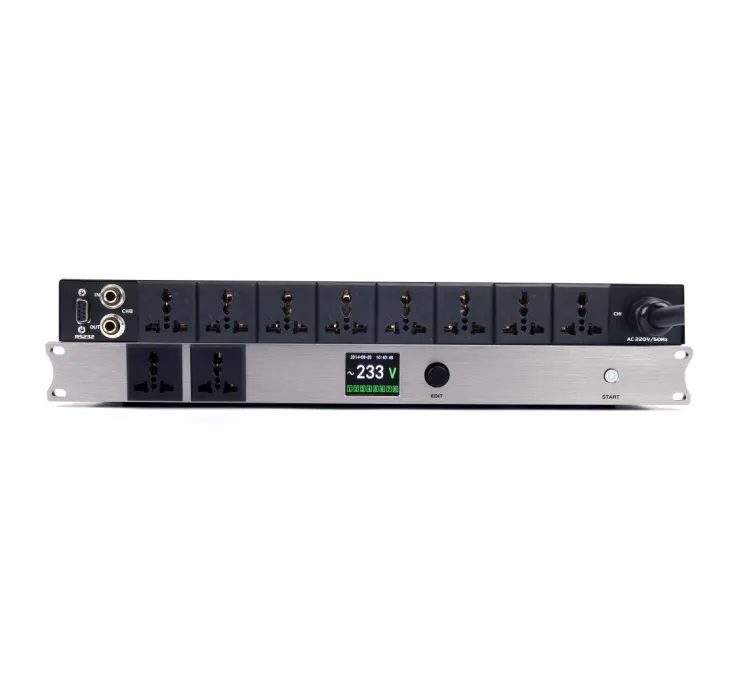

H10 Power sequencer

In stock

1. Panel: Aluminum

2. Number of channels: 8-way universal socket relay controlled and 1-way universal socket through

3. Single power / total power / output current: 2000W / 10000W / 30A 277VAC

4. Specification of output power socket: flame retardant ABS material, can withstand a maximum of 13A current phosphor copper material, standard universal socket

5. Circuit board specifications: double-sided fiberboard, secondary thickening and thickening of main power supply wiring

6. Power supply specifications: built-in switching power supply, suitable for global voltage AC90-260V 50-60HZ

7. Main cable specification: 3 * 4 square cable, total length is 1.5 meters (without power output plug)

8. Opening type: push-button touch switch

9. Short circuit and over current protection circuit breaker configuration: circuit breaker live wire control, over current protection, (40A short circuit protection) 10. Time switch

11. Features:

①. Open sequentially and close in reverse

③. PASS key can be opened simultaneously in all channels

④. RS232 COM port access to central control control (command control)

⑤. Interval time / timing time of each switch: default 1 second (free setting)

⑥. Cascade stacker ID: 0-255

⑦. Overcurrent protection

⑧. Support panel to control each channel independently (can be controlled by software setting). The panel channel is closed independently ⑨. 2.0 inch color screen display
