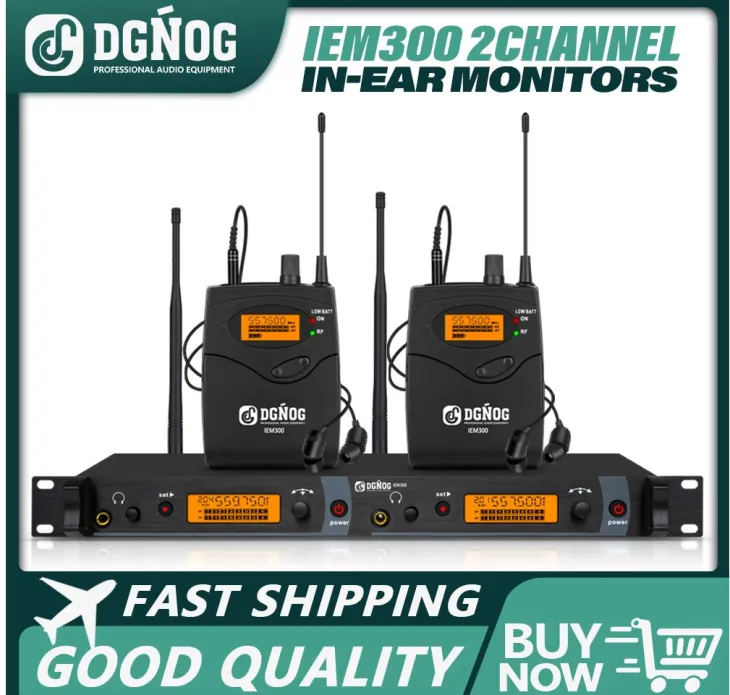

IEM300 2 Channel Wireless In-Ear Monitoring System
Description
Features:
UHF 2Channel Wireless In-Ear Mono Monitor System

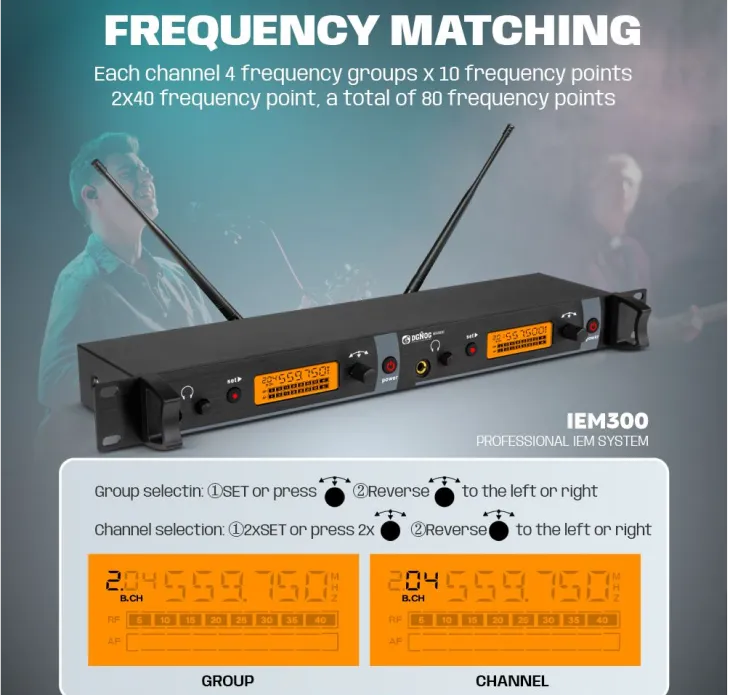

40 Preset Channels in 4 Groups (10 Channels per Group)
Single Gearbox for Simplified Operation
Versatile for Stage Monitoring, Tour Guides, etc.
Easy Installation with Standard Rack Unit Design

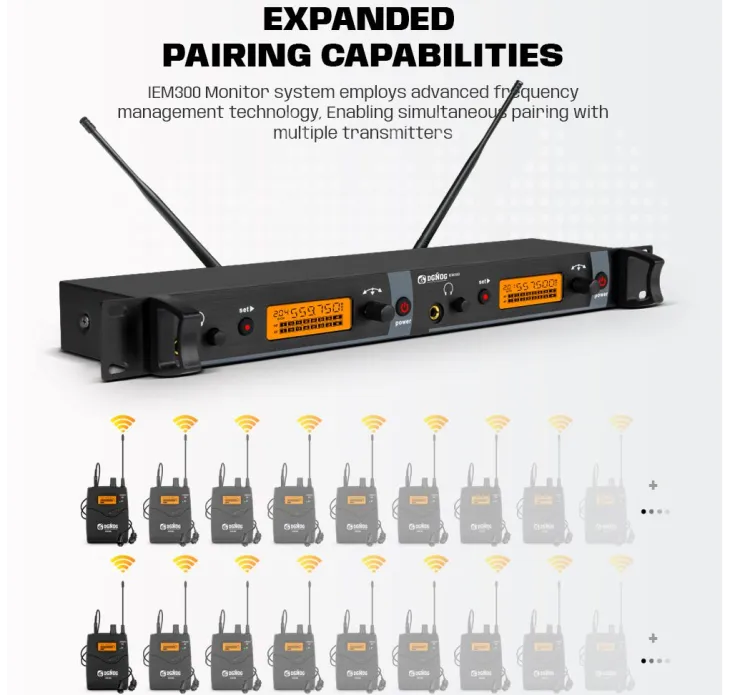

Dual Transmitter and Receiver Design for Enhanced Flexibility
Transmitter Specifications:
All-Metal Drop Design Shell
Vibration Mode: PLL Synthetic
Frequency Stability: +/-0.005%
Frequency Range: UHF 550-580MHz
Frequency Change: 32MHz
Operating Mode: Manual Setting
Sensitivity Deviation: 25KHz, 7 dBuV, S/N 78dB
Maximum Deviation: +/- 48KHz
Frequency Response: 50Hz to 15KHz +/- 3dB
Actual Output: 100mW AF
Input: XLR, 6.3mm, F
Headphone Output: 6.3mm, F
Electrical Stream Input: DC 12V/250mA
Antenna Jack: BNC Jack
Receiver Specifications:
Oscillation Mode: PLL Synthetic
Frequency Stability: ±0.005%
Frequency Range: UHF 550-580MHz
Frequency Interval: 32MHz
Preset Channels: 40 Channels in 4 Groups
Operation Modes: Manual Adjustment
Receiving Mode: Single Tuning
Sensitivity: Deviation 25KHz, Connection 7dBuV, S/N >78dB
Max Deviation: ±48KHz
Comprehensive S/N Ratio: >94dB (1KHZ-A)
Comprehensive T.H.D: <1% at 1KHz
Frequency Response: 80Hz to 15KHz, Main 3dB
Output Power (32Ω): 2x35mW at 1KHz
Earphone Load Impedance: ≥16Ω
Output Socket: 3.5mm Headphone Socket
Vol
