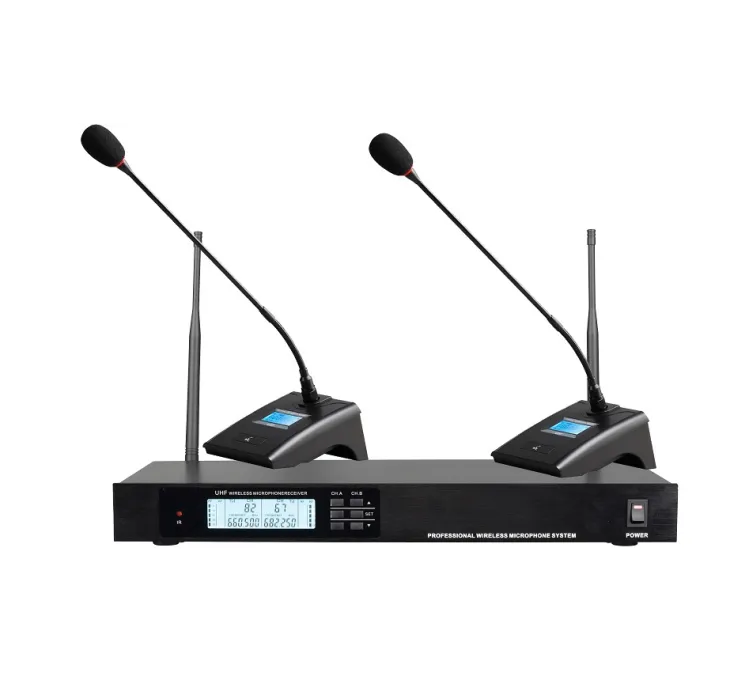

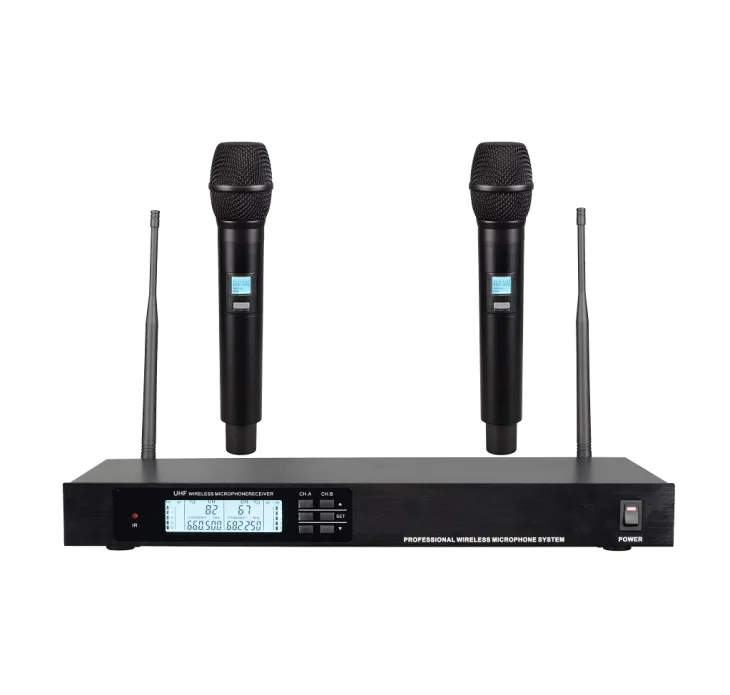

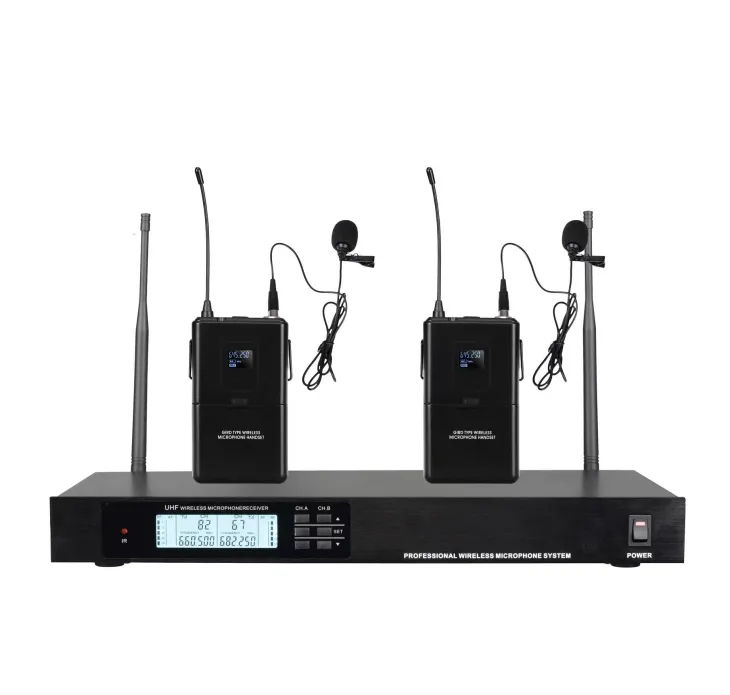

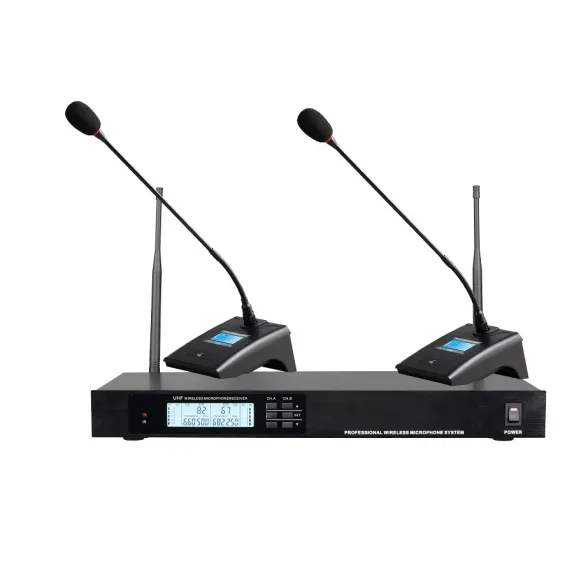

K-230S 2 channel wireless microphone
Features:
●UHF high frequency band, less interference, more reliable transmission
●Using multi-channel frequency synthesis technology to easily provide more than 200 channels to avoid various interference when multiple units are used at the same time
●Advanced adjustable frequency technology, you can easily adjust the frequency to continue to use even if you are disturbed by the on-site frequency
●One-key pairing of frequencies, rejecting cumbersome operations, and continuing to use after easily adjusting the frequency
●Lock function. avoid misuse
●Sensitivity is adjustable. Improve the anti-interference ability of the system
●LCD liquid crystal display, more intuitive
technical parameter
System metrics:
Carrier frequency range: 470MHz - 960MHz
(Frequency range and frequency points can be customized according to customer requirements)
Bandwidth: 50MHz
Modulation method: FM frequency modulation
Modulation range: 50MHZ
Number of channels: 2×100CH
Channel Spacing: 250 Khz
Maximum frequency deviation: ±100KHz
Frequency stability: ±0.005%
Dynamic range: >100dB
Overall Distortion: < 0.5%
Comprehensive signal-to-noise ratio: >100dB
Frequency Response: 50 - 18 KHz (±3dB)
Receiving distance: 2-60 meters
(The above test is in an ideal environment, subject to actual use)
Receiver Specifications:
Receiver power supply: 11-15V (rated 12V)
(using >500mA adapter)
Input power: AC 100-240V, 50/60HZ
Output mode (transmitter MIC input 50mV/1KHZ):
Independent Balanced Output (XLR): 230mV±15mV
Mixed output (6.35mm): 230mV±15mV
Receiver working current: <200mA,
Transmitter Specifications:
Oscillation Mode: PLL (Digital Frequency Synthesizer)
Frequency Error: <15ppm
Power output: 10mW max (depending on applicable country codes),
Dynamic range: ≥100dB(A)
Frequency Response: 50—18 KHz (±3dB)
Transmitter working current: <135mA
Microphone pickup: Handheld: Dynamic, Lavalier, Head mounted, Conference: Condenser
Transmitter power supply: 1.5V X 2 (2 AA batteries)
Oscillation Mode: PLL (Digital Frequency Synthesizer)
Antenna interface: BNC socket
Receive sensitivity: < -107dBm@20dB SINAD
