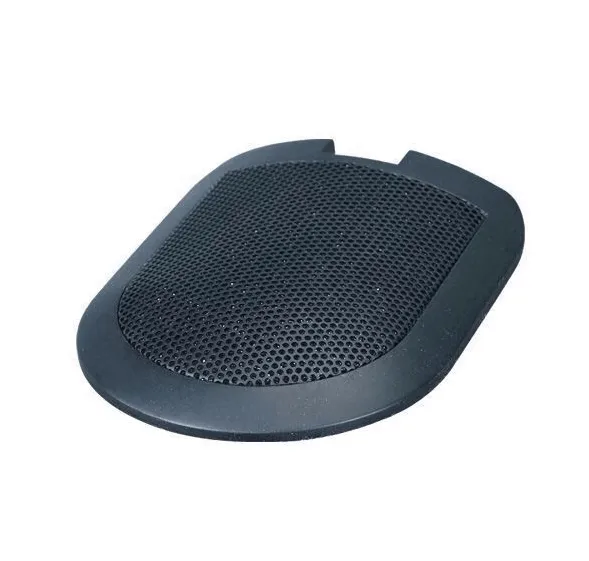

K-525 Interface microphone
Radio head: fixed charging back board, electrostatic type capacitive
Directivity characteristics: hemispherical supercardioid unidirectionality
Frequency response: 30-20.000Hz
Turn-on sensitivity: -34dB (19.9mV) at 1V at 1Pa
Output impedance: 200Ω
Maximum sound pressure: 133dB, 1kHz at 1%T.H.D.
Dynamic range (typical): 103dB, 1kHz at the highest sound pressure
Signal to noise ratio: 67dB, 1kHz at 1Pa
Phantom power supply: DC 48V, power consumption 2mA typical
Output connector: TB3M-3 pin card 侬 public seat
Connecting cable: 8m long, connecting cable, 2 core wires with shielded wires,
Connect with TA3F plug and 3-pin plug male plug
● Designed to place applications in the plane
● Hemispherical single directivity, which can suppress rear noise and clearly illuminate in front
● Small series of radio heads to eliminate reflective phase distortion and provide clear
and high signal audio output
● Flat and unobtrusive design with low-reflective color paint
● Built-in mic preamplifier power supply component, no need to use external power supply module
● This series of microphones only for DC 48V phantom power operation
8mettes cable
