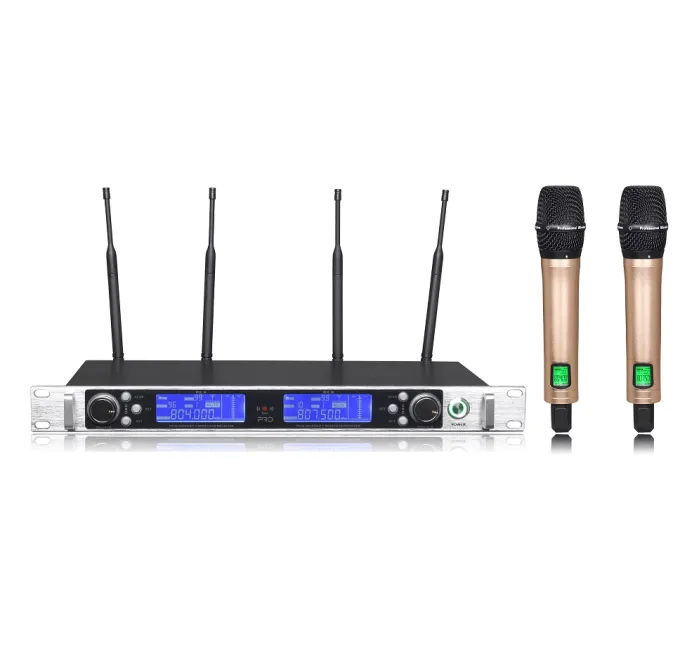

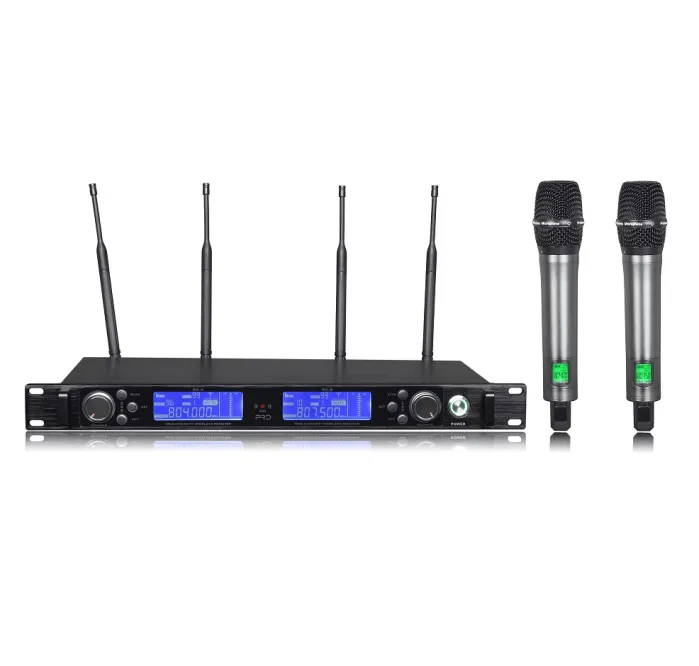

K-910 single Channel UHF Wireless Mic with True Diversity

SKU:
A10028
Available:
In stock

K-910 Dual Channel UHF Wireless Mic with True Diversity

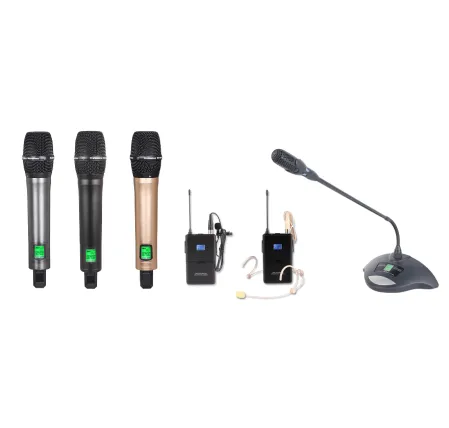

Re: with IR synchronization, PLL technology, true diversity available for handheld transmitters, bodypack transmitters.

Specification:

Receiver

Frequency Range: 780-830MHz

Oscillation Mode: PLL

Channel: 200

Frequency Response: 30Hz~15 KHz

Working Range: 250M

Carrier Stability: ±5PPm≤10KHz

Flase interference ratio: >80dB

S/N Ratio: >105dB (1 KHz-A)

Audio output Impedance: 2.2KΩ

Power Supply: DC12V-18V 1000mA

Transmitter:

Dynamic Range: >110dB

Max Deviation: ±48KHz

Subharmonic: <-60dBc

RF output Power: 10mW

Current Consumption: ≤100mA/3V

Power supply: AA 1.5V×2
