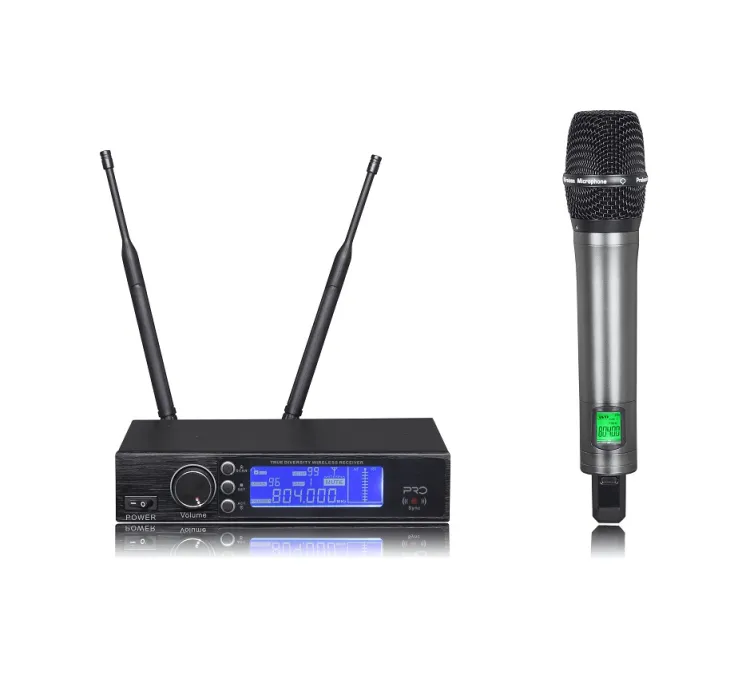

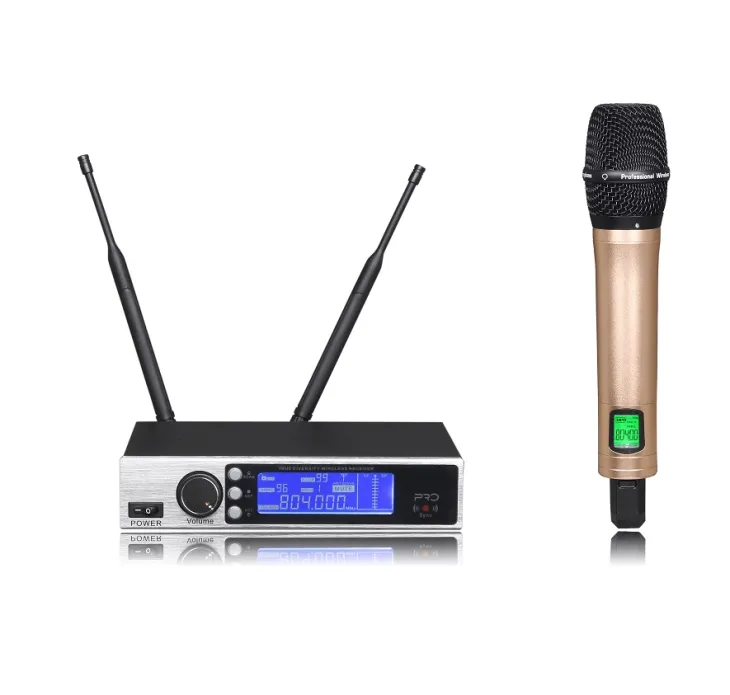

K-911 single Channel UHF Wireless Mic with True Diversity
K-911 single Channel UHF Wireless Mic with True Diversity

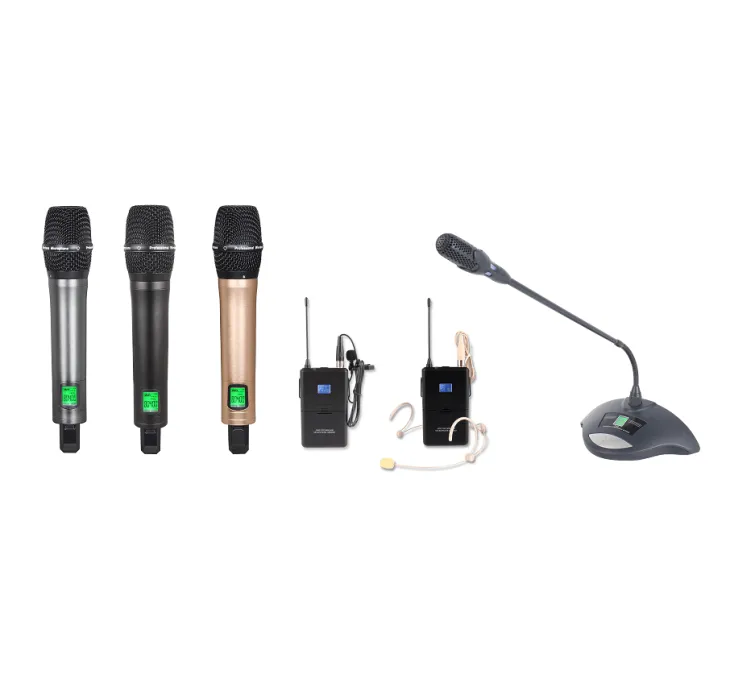

with IR synchronization, PLL technology, true diversity available for handheld transmitters, bodypack transmitters.
Specification:
Receiver
Frequency Range: 780-830MHz
Oscillation Mode: PLL
Channel: 200
Frequency Response: 30Hz~15 KHz
Working Range: 250M
Carrier Stability: ±5PPm≤10KHz
Flase interference ratio: >80dB
S/N Ratio: >105dB (1 KHz-A)
Audio output Impedance: 2.2KΩ
Power Supply: DC12V-18V 1000mA
Transmitter:
Dynamic Range: >110dB
Max Deviation: ±48KHz
Subharmonic: <-60dBc
RF output Power: 10mW
Current Consumption: ≤100mA/3V
Power supply: AA 1.5V×2
