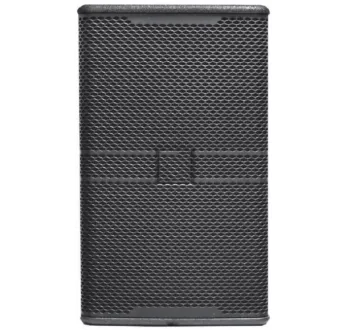

System type: 12 inches, divided by 2, incident reflection type frequency range (-10 dB) 1: 47 Hz-20 KHz

Frequency response (±3 dB) 1: 80 Hz-20 KHz

Sensitivity (1w / 1m) 1: 97.5 dB

Rated impedance: 8 Ohms

Sound pressure level output: 125 dB (peak: 131 dB)

Rated input power 2: 350 W / 700 W / 1400 W

(Continuous/music signal/expected) coverage angle: 70°x 100°(H x V)

Dimensions (height x width x depth): 600 mm x 360 mm x 382 mm

Net weight: 18.5Kg (40.7 pounds)

Woofer: 1 12-inch woofer, 2.5-inch voice coil, ferrite magnet

Tweeter: 1 2408H-2 compressed tweeter, 1.5 inch voice coil,

NdFeB magnet input connector: 2 Neutrik®Speakon®NL4MP

Box structure: trapezoid, 15 mm thick plywood
