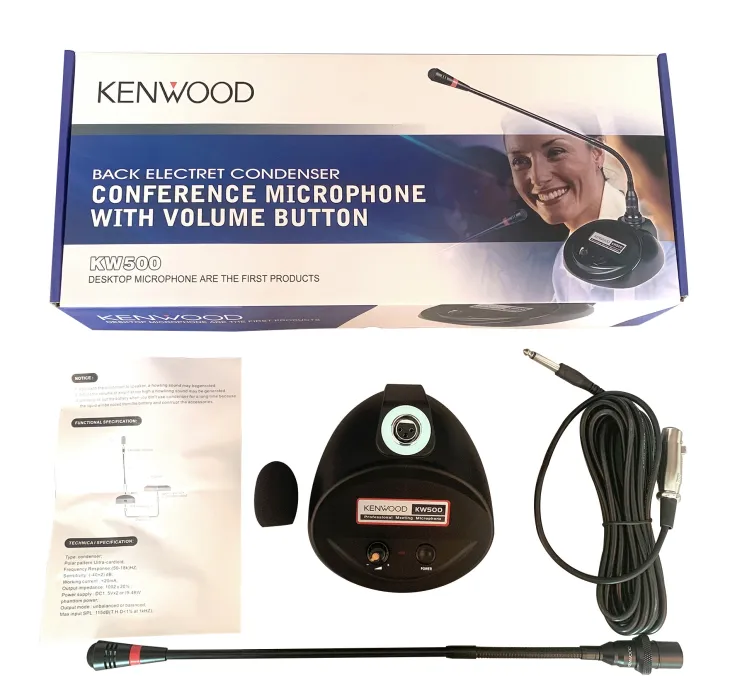

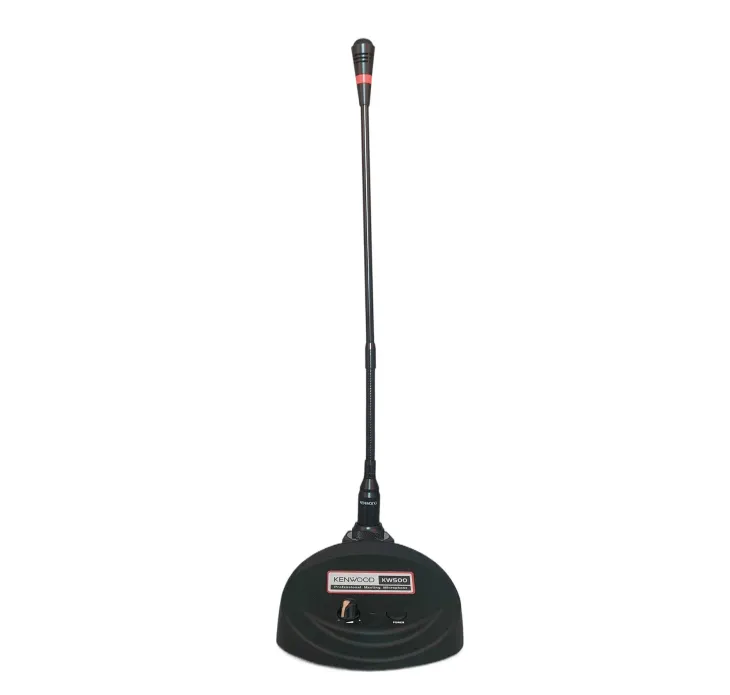

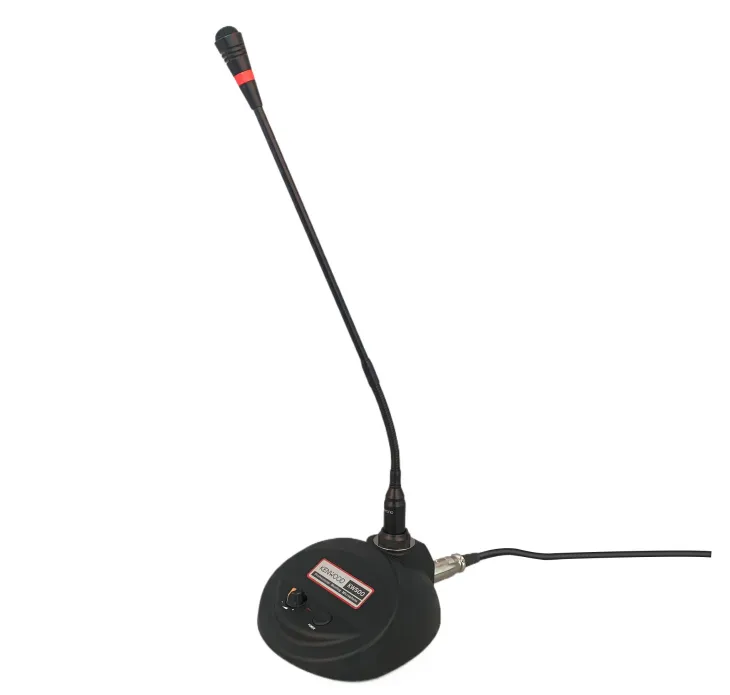

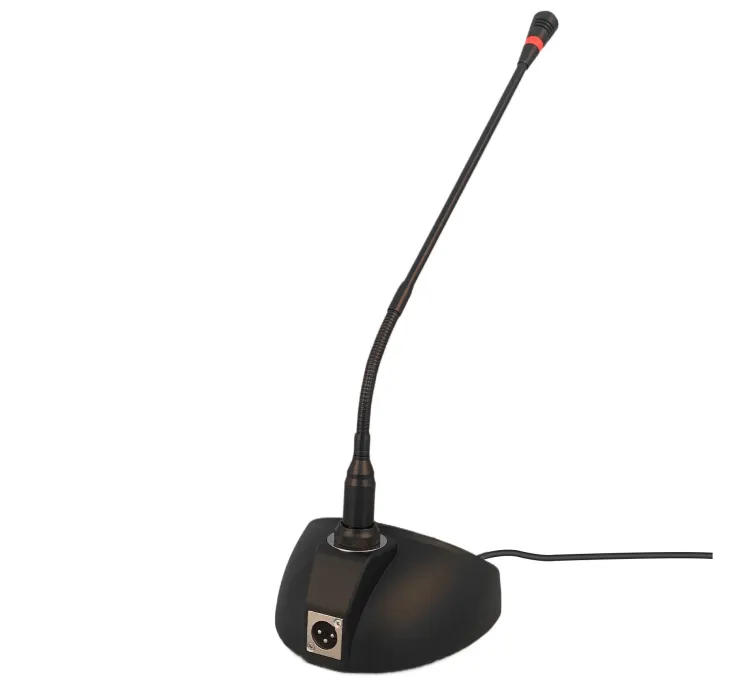

KW500 Wired Conference Microphone
FUNCTIONAL SPECIFICATION
No specific parameters, mainly usage precautions:
1. A howling sound may be generated when the microphone approaches the speaker.
2. A howling sound may be generated if the amplifier volume is too high.
3. Please remove the battery when not in use for a long time to prevent battery leakage from damaging accessories.
TECHNICAL SPECIFICATION
- Type: condenser
- Polar pattern: Ultra-cardioid
- Frequency Response: 50 - 18kHz
- Sensitivity: (-40±2) dB
- Working current: < 20mA
- Output impedance: 100Ω±20%
- Power supply: DC 1.5V×2 or phantom power 9 - 48V
- Output mode: unbalanced or balanced
- Max input SPL: 115dB (T.H.D < 1% at 1kHz)
FUNCTIONAL SPECIFICATION
No specific parameters, mainly usage precautions:
1. A howling sound may be generated when the microphone approaches the speaker.
2. A howling sound may be generated if the amplifier volume is too high.
3. Please remove the battery when not in use for a long time to prevent battery leakage from damaging accessories.
TECHNICAL SPECIFICATION
- Type: condenser
- Polar pattern: Ultra-cardioid
- Frequency Response: 50 - 18kHz
- Sensitivity: (-40±2) dB
- Working current: < 20mA
- Output impedance: 100Ω±20%
- Power supply: DC 1.5V×2 or phantom power 9 - 48V
- Output mode: unbalanced or balanced
- Max input SPL: 115dB (T.H.D < 1% at 1kHz)
