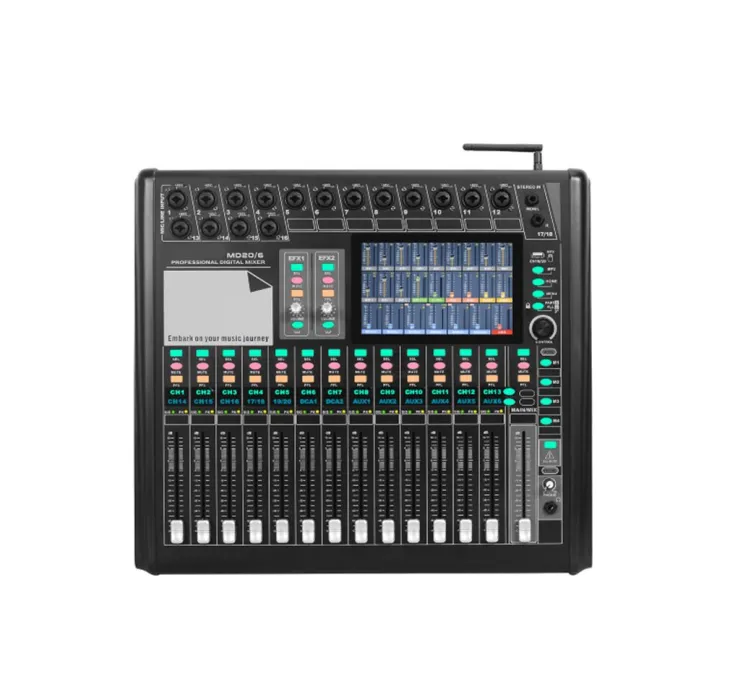

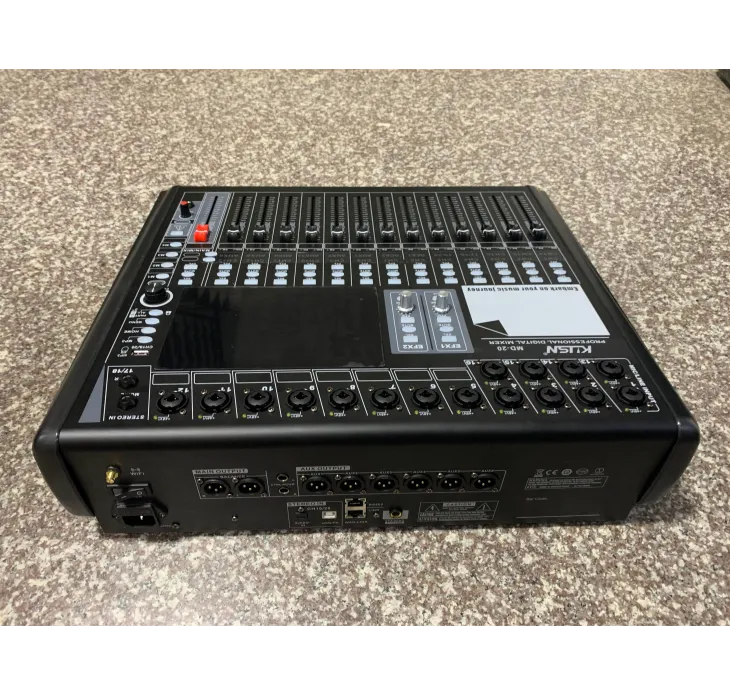

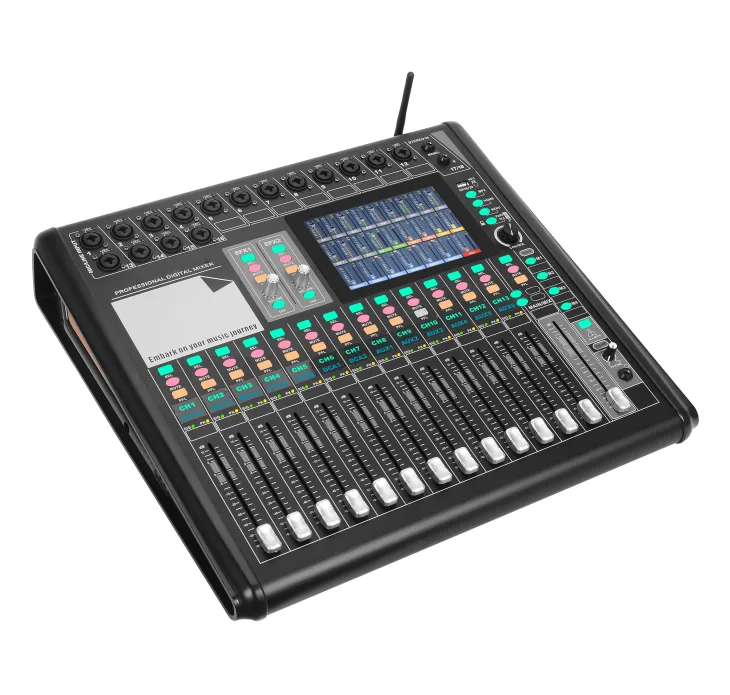

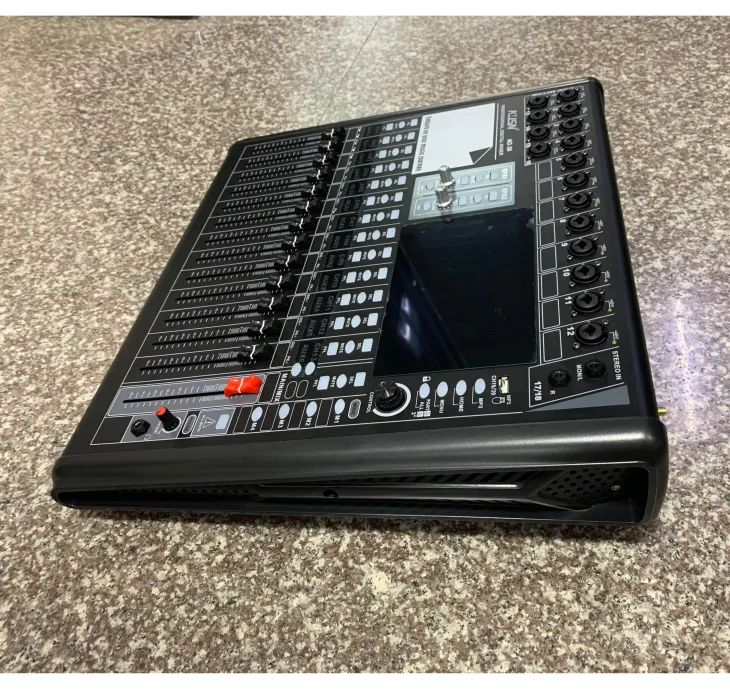

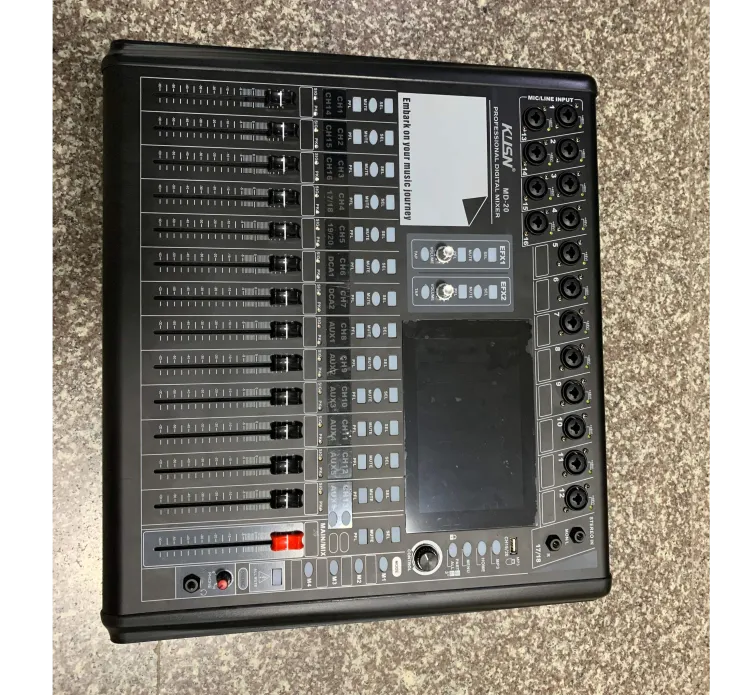

MD20 20 channel professional digital mixing console
•20 channel inputs include: 16 microphone inputs,2 stereo inputs and 2 digital stereo inputs (USB playback, USB sound card/ optical fiber input
•6 AUX output channels: 1 stereo main outpurt,1 stereo monitor output,2 stereo digital outputs (USB sound card, USB recording)
•All input channels have independent high-pass,low-pass, PEQ, compressor, noise gate, and phase processing.
•All microphone input channels have high-quality, programmable digital gain control and independent phantom power control.
•All AUX output channels have independent frequency divider, PEQ, compressor, delay processing, 3-stage anti-howling frequency shift function and output fader front and rear selection.
•The stereo main output channed has independent frequency divider,PEQ, compressor, delay processing, and Level 3 anti-howling frequency shift function.
•The preset names of all channels can be customized and the names can be rewirtten.
•All input and output channel s can support any custom replication.
•All setting parameters of this machine can be stored and functions can be called. Built-in two independent professional stereo effects, with independent transmission bus, and a variety of effect types are optional. At the same time, it spports 16 custom effect modes edited by users. •Built-in U disk player,supports real-time stereo recording and playback functions. Built-in USB sound card, supports real-time recording and playback functions connected to the PC.
•Support the user's scene storage and invocation functions.
•It has an independent administrator password and a customizable user password protection function.. The administrator password protection is valid for local operations and mobile terminal access at the same time.
•7-inch high-definition 1280*800 capacitive touch screen, which supports multi-touch operation. Built-in Web server based on HTM.5 technology, built-in Wi-Fi hotspot, cross-platform support for Apple, Android, Windows and other mobile terminal access,support multi-screen interaction, full-featured operation. Support the central control management protocol and realize the system intergration application.
