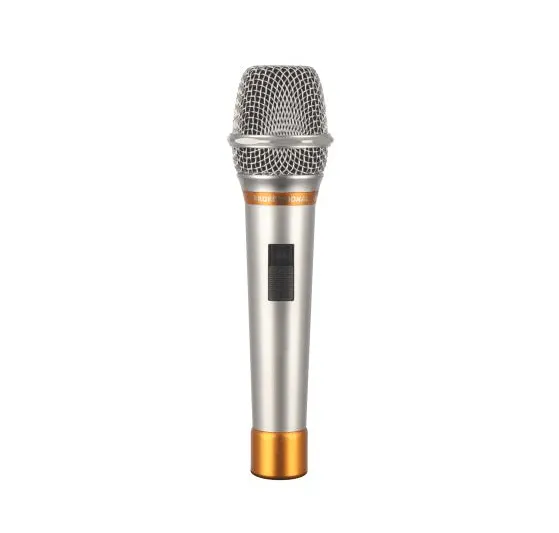

P8 Wired microphone

SKU:
C20012
Available:
In stock

Vocal microphone provides a detailed sound due to its tailored frequency response and supercardioid polar pattern.

Type: Dynamic (moving coil)

Frequency Response: 50 to 16,000 Hz

Polar Pattern: Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency.

Output Level (at 1,000 Hz): Open Circuit Voltage: -51.5 dBV/Pa (2.6 mV) 1 Pa = 94 dB SPL

Impedance

Rated impedance is 150 ohms (290 ohms actual) for connection to microphone inputs rated low Z Phasing.

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3.

Case

Silver blue enamel-painted die cast metal with hardened, matte-finished, spherical steel mesh grille.

Adjustable, Stand Adapter

Slip-in microphone mounting, unbreakable, adjustable through 180 degrees with standard 5/8"-27 thread, black finish.

Net Weight 278 grams
