PSM-200T Stereo Professional UHF Wireless In-ear Monitoring System. Suitable For Stage Performances

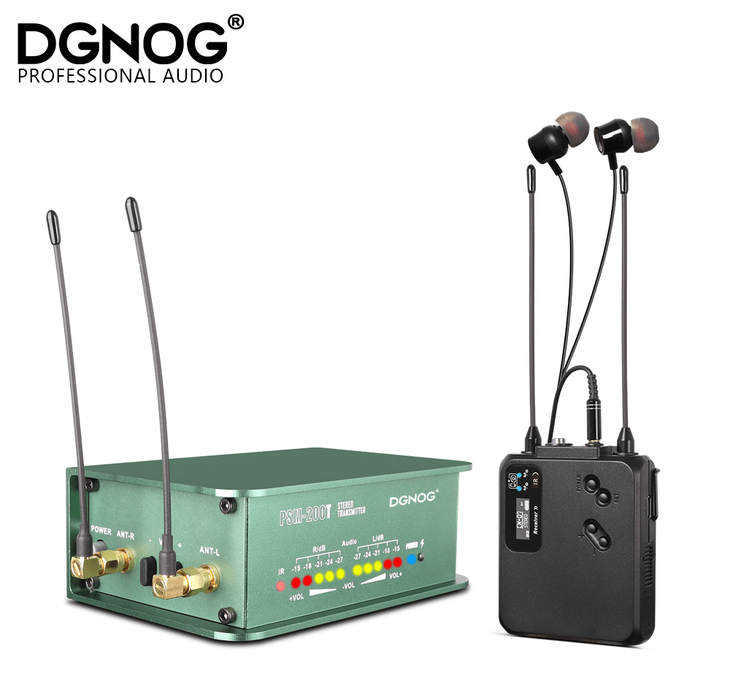

This a cost-effective stereo wireless monitoring system. Simple display interface, easy operation, and long transmission distance, it is the first choice for small and medium-sized stage performance and musical instrument combinations. The transmitter is an all-metal body with a built-in lithium battery for outdoor portable use. It equips XLR and Ф6.3 composite high dynamic range stereo audio input interface, supporting mixer output. The panel has simple and bright LED to indicate audio level input, volume, low battery and charging status and volume adjustment. The receiver is designed with an OLED display and displays relevant product information. It also has switchable stereo and mono output function. Equipped with Ф3.5 stereo headphone jack output, the output power of the left and right channel is 80mW@16Ω each. There are multiple preset frequency groups that do not interfere with each other, and the frequency synchronization to the transmitter will be done via IR port.
1.UHF wireless stereo audio transmission, providing high-fidelity monitoring effect.
2.Apply to musical instrument combination, small and medium-sized stage monitoring.
3.DSP digital audio companding, adopting 48KHz audio sampling rate to reduce the noise in the wireless transmission system to the best
4.Adopt innovative dual-channel technology, separate the stereo completely.
5.The output volume of the transmitter and receiver can be adjusted independently.
6.Multiple switchable frequency for selection and automatic frequency scanning to realize operation without environmental interference
7.Infrared frequency synchronization and lock on to the corresponding frequency.
8.Adopt OLED display and show the corresponding product information.
Product Technical Index
System Technical Index:
RF Carrier frequency range: 470MHz~960MHz
Frequency stability: 0.005%
Effective working distance(ideal environment): ≥60 meter
Audio companding: DSP digital audio companding
Audio sampling rate: 48KHz
Audio frequency response:50Hz~1800Hz ±3dB
Dynamic range: 92dB
S/N: 105 dB
T.H.D.: ≤0.8%,@1KHz
Working temperature range:-10℃~ +50℃
Receiver Technical Index:
Receiving frequency range: 470MHz~960MHz
Receiving mode: dual channel, Superheterodyne
Image suppression: 45dBm
RF sensitivity: when input is 10dBu, S/N ≥ 45dB
SQ adjustment: built-in setting parameters
Frequency sync way: manual button setting
Headphone output power: 80mW@16Ω
Output level adjustment range: 9 levels adjustable,
