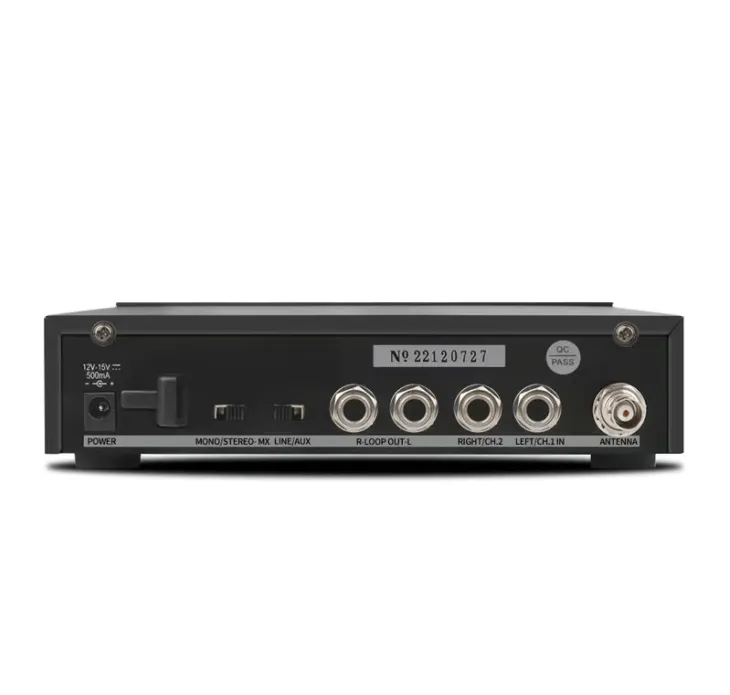

"Transmitter technical specifications

RF carrier range: 566-590 H

Number of channels: G9*C16 RF output power: 100mW

RF output impedance: 50Q

RF interface: BNC

Tuning bandwidth: 24 H

Modulation: digital modulation (GFSK)

Sampling rate: 46.875KHz

Resolution:24Bits

Audio dynamic range: 103dB+A

Audio signal-to-noise ratio: 109dB+A Delay typical value: 6ms

Audio processing method: DSP

Audio response:20-20KHz

FM mode: manual + infrared

Audio input: 6.35(1/4) TRS

Power Requirements: 12-15 Volts (DC), 0 An

Operating temperature range: -30C to 58C

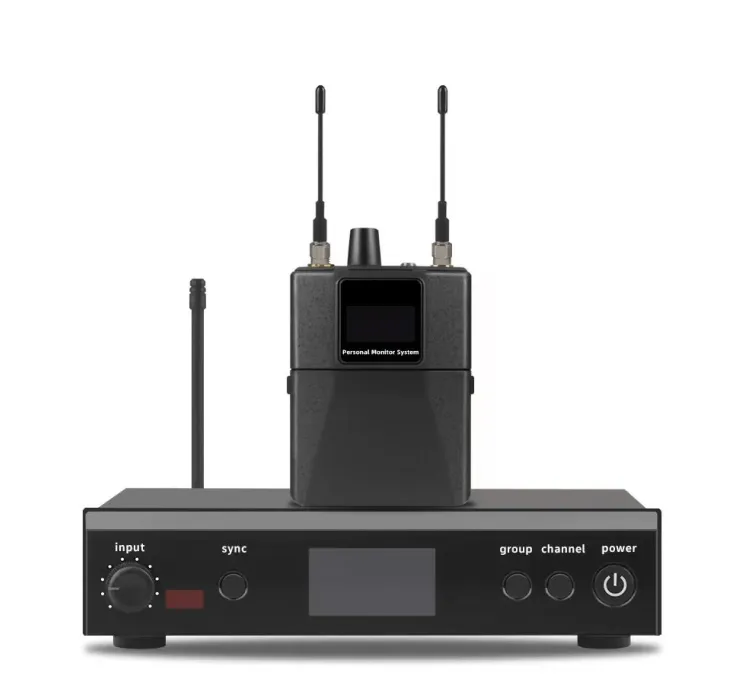

Receive bodypack technical indicators

RF carrier range: 566-590 HA

Number of channels: G9*C16 Tuning bandwidth: 24 H2

Demodulation: digital demodulation (GFSK)

Sampling rate: 46.875KHz

Resolution: 24Bits Audio processing method: DSP

Audio response:20-20KHz

FM mode: manual + infrared

Audio output power: 80 M1kHz @% distortion, power, @320 8 M) Minimum load impedance: 16 2

Headphone output: 3.5mm (1/8 inch) sound

Audio dynamic range: 110dB+A (200Kohm)

Audio total harmonic distortion: -94dB

Receiving sensitivity: <-95dB Antenna interface: SMA

Working current: 3V 4D+10MA (conversion efficiency 94%) Battery usage time: 3-4 hours (use) No. 1 battery (depending on battery capacity and headphone output power)

Operating temperature range: -30 C to 85 C"
