PSM800 Stero 1 ch wireless in-ear monitor system
1 channel stero wireless in-ear monitor system

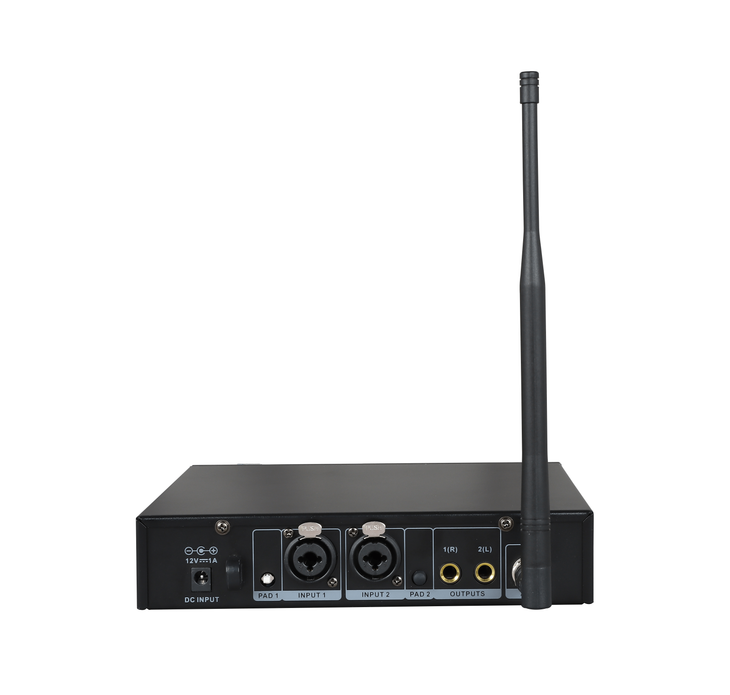

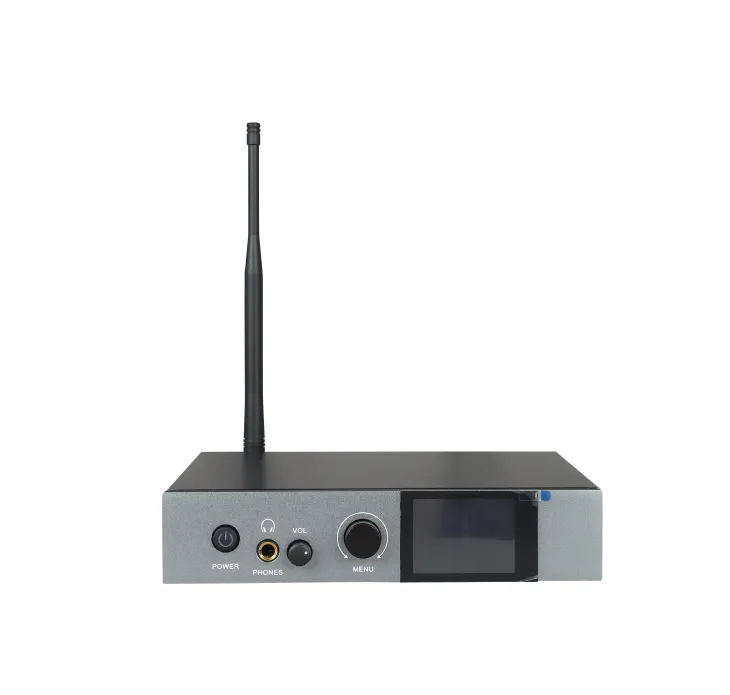

transmitter
Frequency range…470-950 MHz
Audio input…Max input+18dBu
Powered by…12-15 VDC
Consumption…15V 300 mA
Transmit power...10mW~50mW (optional)

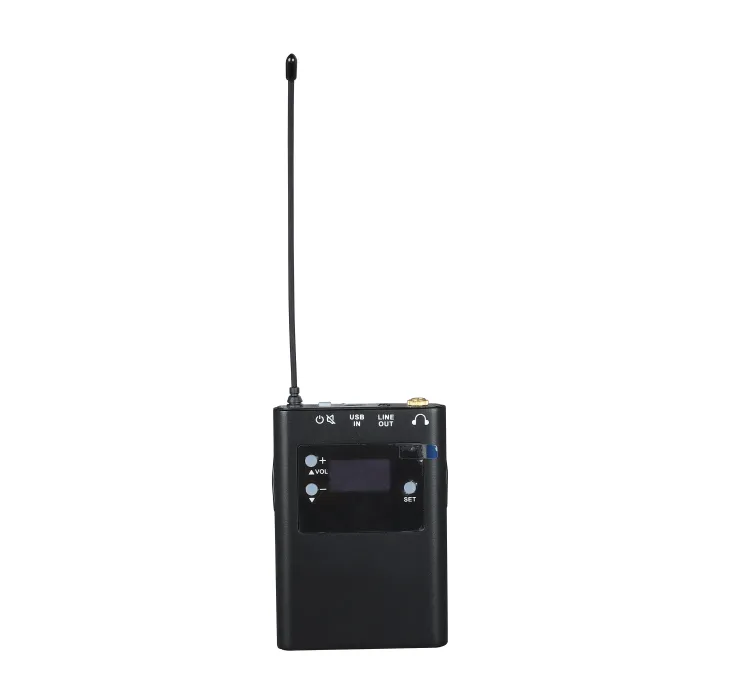

take over
Frequency range…470-950 MHz
Receiving sensitivity...-95dBm
Battery…lithium battery 4.2V
Frequency response…20-20,000 Hz
Audio output power...100mW (1kHz@<1% distortion, peak power,@16)
Consumption…200 mA
system
Distortion...<0.1%
Signal to noise ratio…100dB
Frequency range…470-950 MHZ
Bandwidth…2MHz
Dynamic range…100dB
Audio sampling…24 bit/192 kHz
Transmission system…digital modulation
Audio response time…<5ms
Audio encoding…digital encoding
Frequency response…20-20,000 Hz
Use distance...50 meters"
