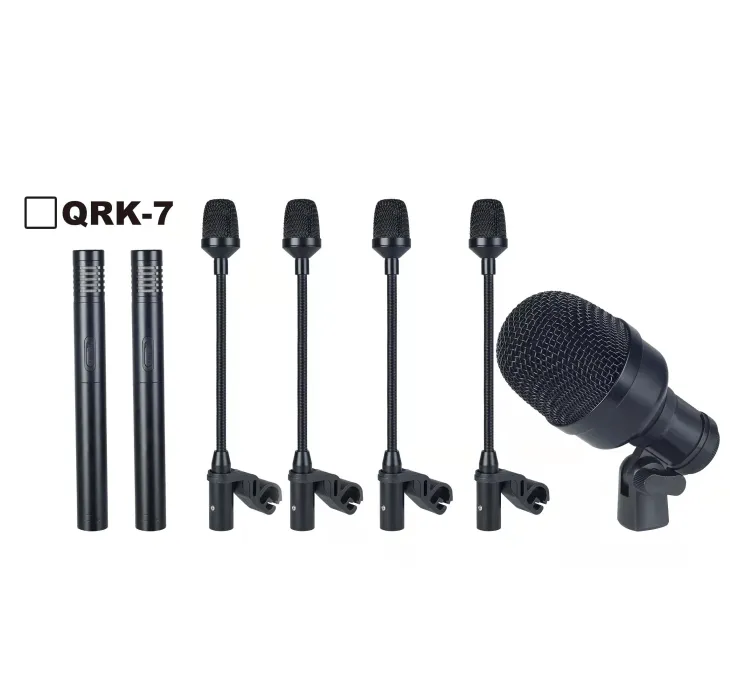

QRK-7 Drum microphone kit
Frequency response: 50-12khz
Single weight: 25 (± 1) g

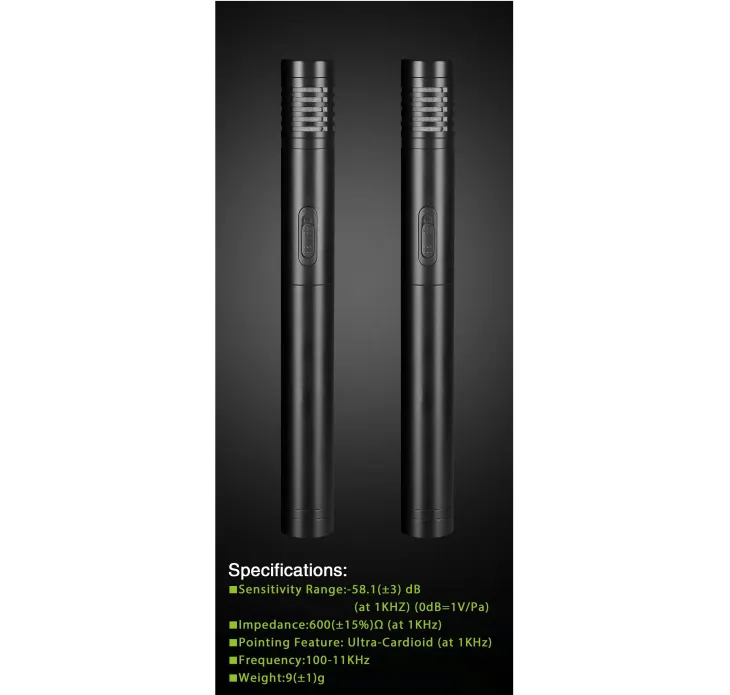

Drum parameters:
Sensitivity range: - 58.1 (± 3) DB
(1KHZ)(0dB=1V/Pa)
Impedance: 600 (± 15%) Ω (at 1kHz)
Pointing function: supercardioid (1kHz)
Frequency: 100-11khz
Weight: 9 (± 1) g

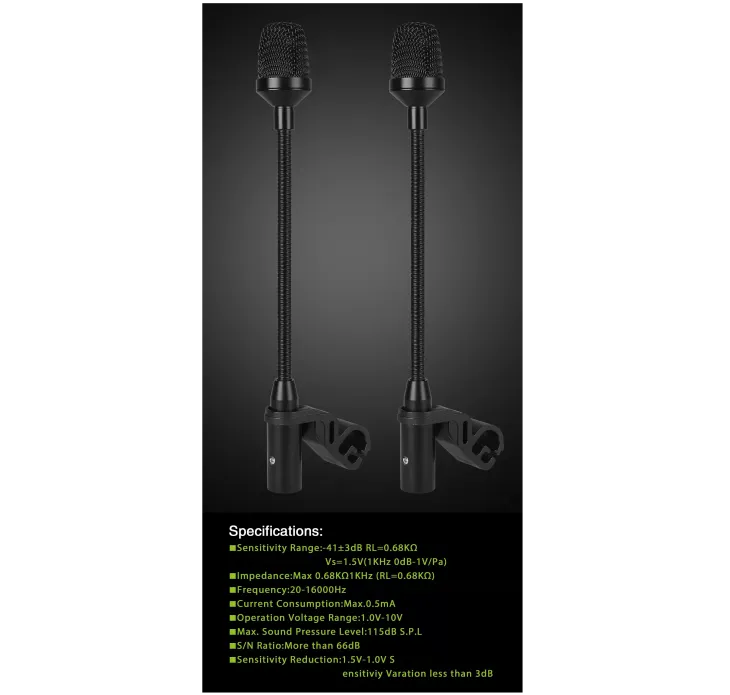

■ sensitivity range: - 41 ± 3dB RL = 0.68kq
Impedance: maximum 0.68k Ω 1kHz (RL = 0.68kq) frequency: 20-16000hz
Current consumption: maximum 0.5mA working voltage range: 1.0v-10v
Maximum sound pressure level: 115dB s.p.l signal-to-noise ratio: more than 66 DB
Lucent: 1.5v-1.0v s
Sensitivity reduction: 1.5v-1.0v
The sensitivity change is less than 3dB
Frequency response: 50-12khz
Single weight: 25 (± 1) g
Drum parameters:
Sensitivity range: - 58.1 (± 3) DB
(1KHZ)(0dB=1V/Pa)
Impedance: 600 (± 15%) Ω (at 1kHz)
Pointing function: supercardioid (1kHz)
Frequency: 100-11khz
Weight: 9 (± 1) g
■ sensitivity range: - 41 ± 3dB RL = 0.68kq
Impedance: maximum 0.68k Ω 1kHz (RL = 0.68kq) frequency: 20-16000hz
Current consumption: maximum 0.5mA working voltage range: 1.0v-10v
Maximum sound pressure level: 115dB s.p.l signal-to-noise ratio: more than 66 DB
Lucent: 1.5v-1.0v s
Sensitivity reduction: 1.5v-1.0v
The sensitivity change is less than 3dB
