Technical Parameter

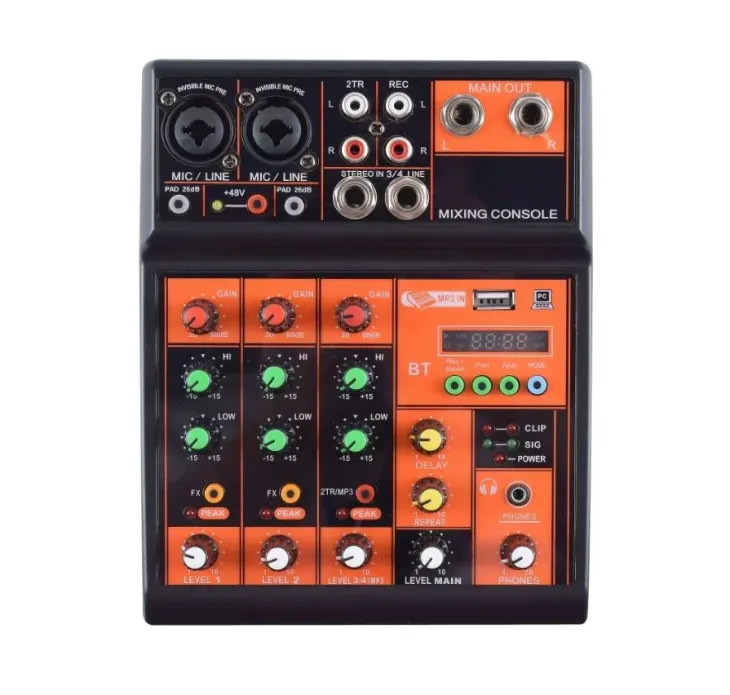

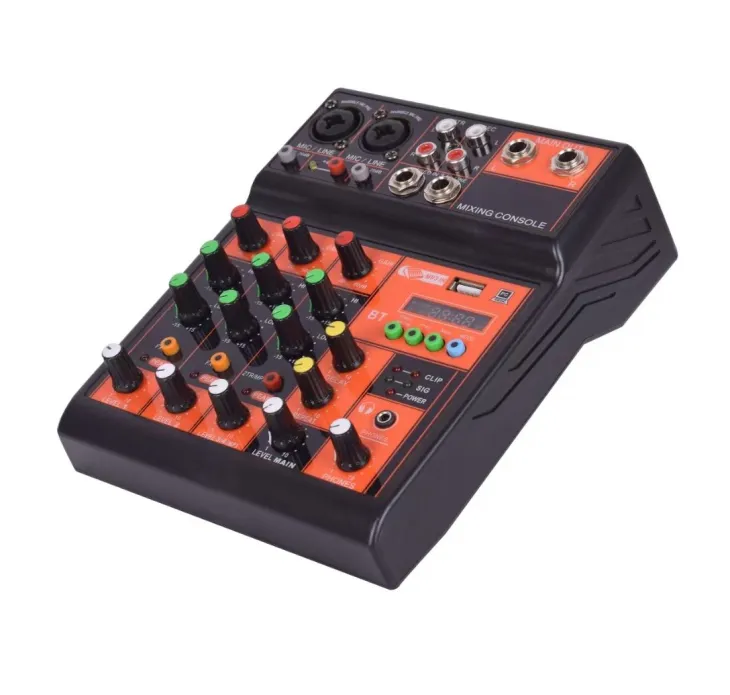

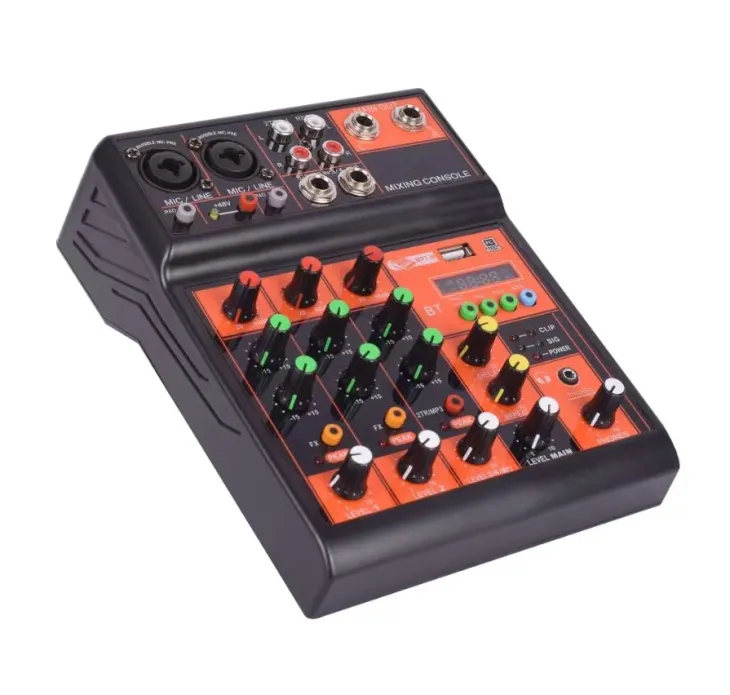

Type: Live four channel mixing console

Features: Equipped with USB sound card, computer powered audio input and output, USB power bank powered

Input method: four-way (two-way composite plug, two-way 6.5 input)

Music input: USB sound card input, USB drive input

Display playback: MP3 LCD display screen

Output mode: USB sound card output, 6.5 channel output, REC recording output

Phantom power supply: Single independent switch 48V capacitor microphone power supply

Music playback: Bluetooth music input mixing console

Reverberation mode: Independent single channel reverberation size adjustment

Monitoring output: 3.5mm headphone output monitoring port

Harmonic distortion+noise:< 0.003%

Frequency response: 20Hz-20kHz (+30B)

Gain control: Mono -60dB~40dB

Noise ratio:< 80dB

Output level: 19dBm

Equivalent noise source input electromotive force:- 115dBm

Balance: Two stage balanced high and low frequency adjustment

Remaining noise:- 105dB

High frequency 12KHz+15dB

Low frequency 80Hz+15dB

Power supply method: 5V USB power supply

Weight: 0.85KG

Size: 19cm 14cm 6cm
