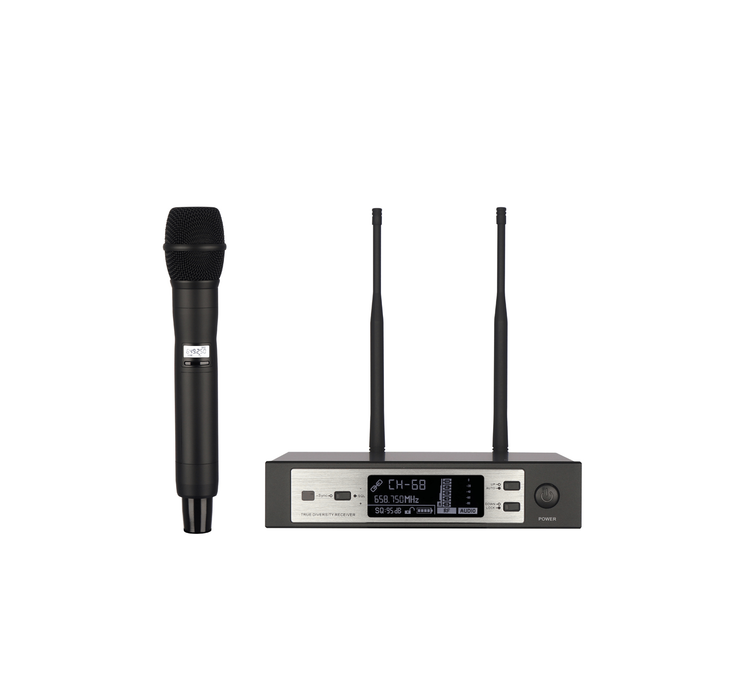

SK-9100 small studio true diversity true network system, using proprietary technical design: ultra-high bandwidth (UHF) transmission, diversity reception, dual CPU control, screen display, metal casing, phase-locked loop technology, noise detection Etc., with 160 frequency points simple and easy to operate.

Using microcomputer CPU control: The system hardware circuit can be controlled by a microcomputer, such as frequency selection, display, mute lock processing, battery capacity monitoring, etc., to achieve traditional functions that are not easy to achieve.

Liquid crystal display: The commonly used liquid crystal display is adopted, and all control menus can be displayed on the LCD screen for easy control.

Receiver

Chassis specifications: standard 1U chassis

Number of channel groups: dual channels

Carrier frequency band: UHF 615 ~ 665MHz / 740 ~ 820MHz

Modulation method: FM

Oscillation mode: PLL phase locked frequency synthesizer

Frequency stability: ±0.0005%

Sensitivity: When the offset is equal to 25KHz and 6dBμV is input, S/N>60dB

Maximum deviation: ±45kHz

Frequency bandwidth: 40MHz

Comprehensive S/N ratio: >108 dB

Comprehensive T.H.D.: <0.4% @ 1 KHz

Comprehensive frequency response: 65Hz~18kHz ± 3dB,

Maximum output voltage: balanced: -20dBV/100Ω,

Unbalanced: -4dBV/5KΩ.

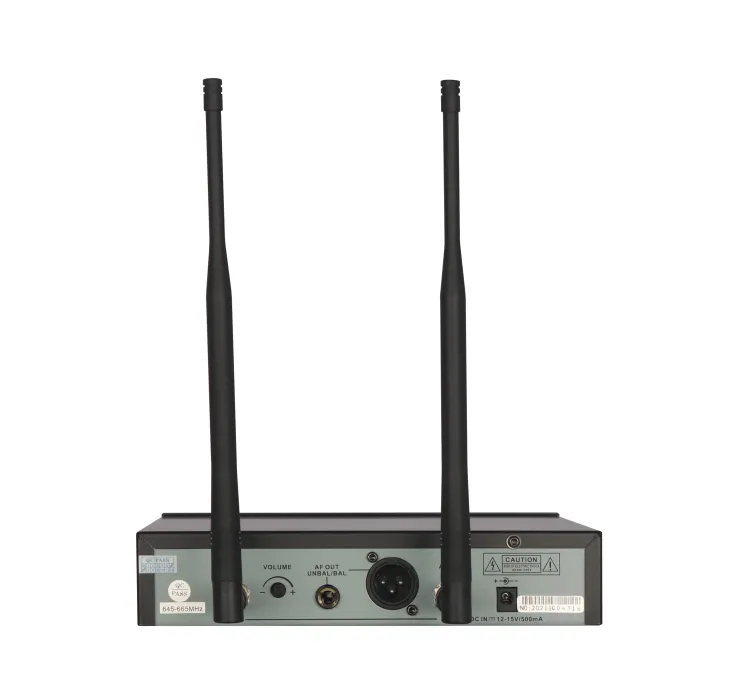

Output socket: XLR balanced and 6.3φ unbalanced socket

Effective working distance: generally 100 meters (open place)

Power supply: 100-240V AC50/60 Hz, 10W

Size (mm): 210 (L) ×43 (H) ×206 (W)

To

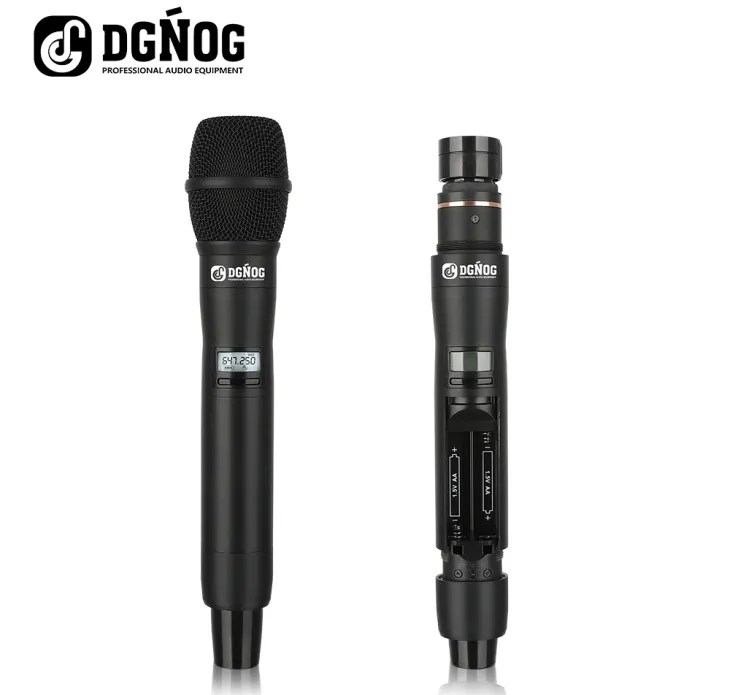

Handheld transmitter microphone

Carrier frequency band: UHF 620 ~ 680MHz / 740 ~ 820MHz

Oscillation mode: PLL phase locked frequency synthesizer

Harmonic radiation: <-63dBm

Frequency bandwidth: 80MHz

Maximum deviation: ± 45KHz

Power output: 3 0mW

Frequency response: 50Hz~18KHz

Maximum input sound pressure: 130dB SPL

Sound head: moving coil

Battery: AA×2

Current consumption: <110 mA, size (mm): 265mm long × 56mm diameter
