Transmitter Specifications

* Chassis: Standard 1U

* Frequency Range: 550–590MHz / 640–690MHz

* Audio Sampling: 24bit / 44.1kHz (latency ≤ 0.3ms)

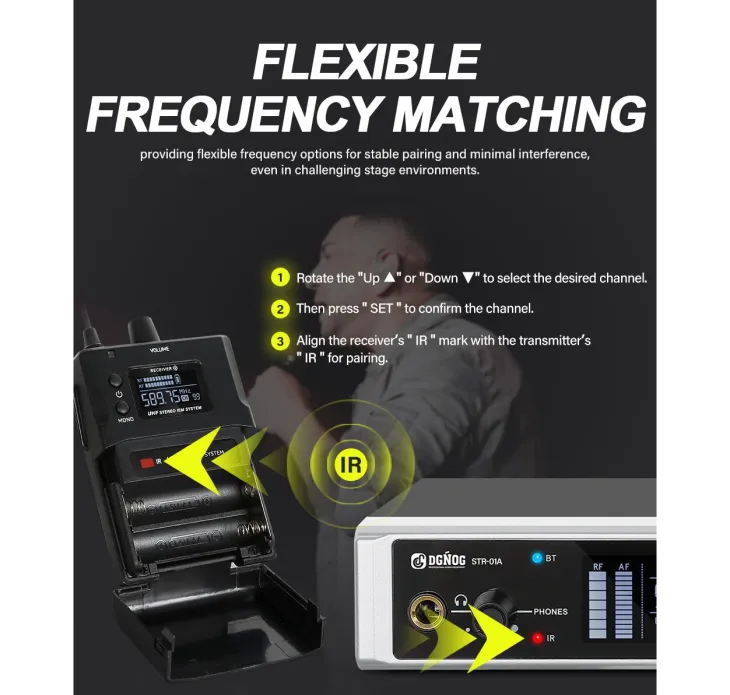

* Channels: 100 selectable channels

* Modulation: GFSK

* Frequency Response: 20–18,000Hz

* Total Harmonic Distortion (T.H.D): < 1%

* Signal-to-Noise Ratio (S/N): ≥ 75dB

* RF Output Power: 10mW

* Dynamic Range: 95dB

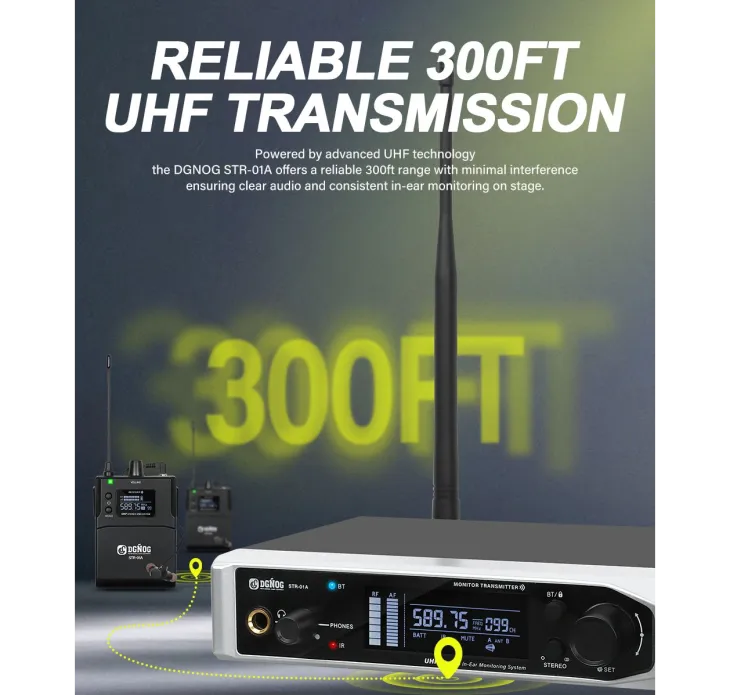

* Operating Distance: 50–100m (open environment)

* Frequency Stability: < ±10ppm

* Audio Output Level: 10mW

* Current Consumption: 160mA

* Power Supply: DC 12V / 500mA

* Audio Inputs: 3.5mm / 6.35mm / XLR

[Bodypack Receiver Specifications]

* Frequency Stability: < ±10ppm

* Signal-to-Noise Ratio (S/N): > 95dB

* Audio Output Power: 10mW

* Current Consumption: 130mA

* Battery Type: AA 1.5V × 2

* Audio Output: 3.5mm stereo headphone jack
