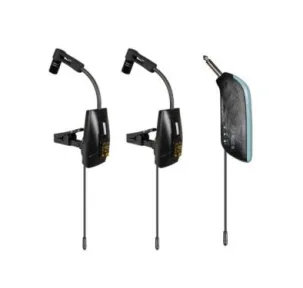

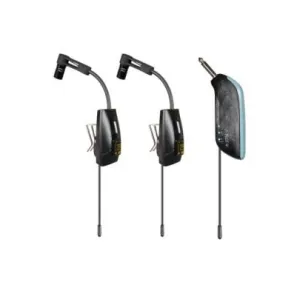

This wireless system uses UHF frequency and has 25 built-in adjustable frequencies. Long wireless distance, strong anti-interference, widely applicable to musical instruments in various occasions

play.

Receiver Technical Parameters

Receiver sensitivity: -94 dBm

Audio using AGC and limiter

Working voltage: 2.7-3.6V

Operating frequency: 640-660 MHz

Digital modulation method: P% DQPSK

Effective bandwidth 300KHz

High frequency signal-to-noise ratio: 96dB

Frequency response: 30-20KHz

Technical parameters of transmitter

Maximum transmission power: 10dBm

Gain adjustment range: 0~47.5dB

Audio using AGC and limiter

Working voltage: 2.7-3.6V

Operating frequency: 640~660MHz

Digital modulation method: P-DQPSK

Effective bandwidth: 300KHz

High frequency signal-to-noise ratio: 96dB

Frequency response: 30-20KHz
