Product Features /Characteristic:

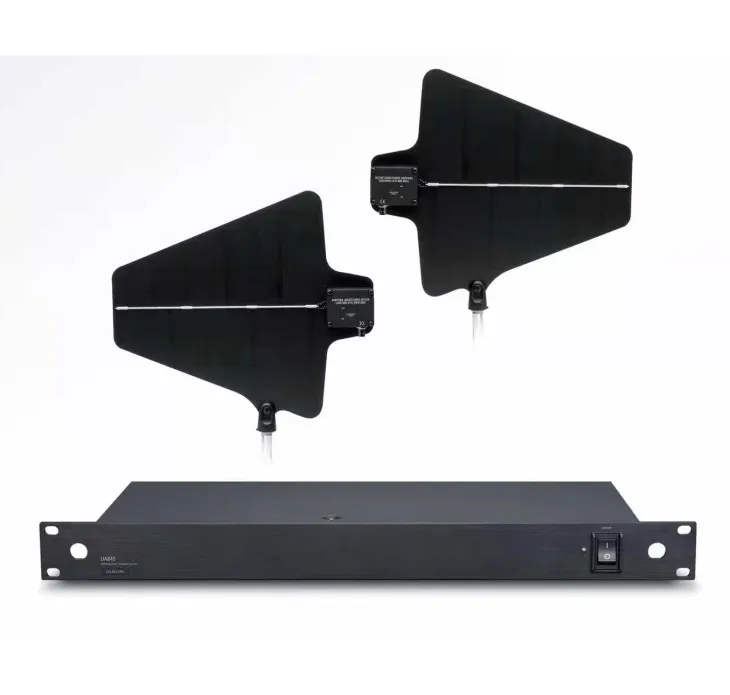

UHF wireless microphone system active antenna/power distribution system, 5-way, broadband UHF (470-940 MHz), support internal switching power supply. The use of a logarithmic period dipole oscillator array provides optimum reception when facing the desired coverage area. The integrated amplifier has four gain settings to compensate for different levels of coaxial cable signal loss. It can be attached to the microphone stand, suspended from the ceiling, or attached to the wall using an integrated rotatable stand.

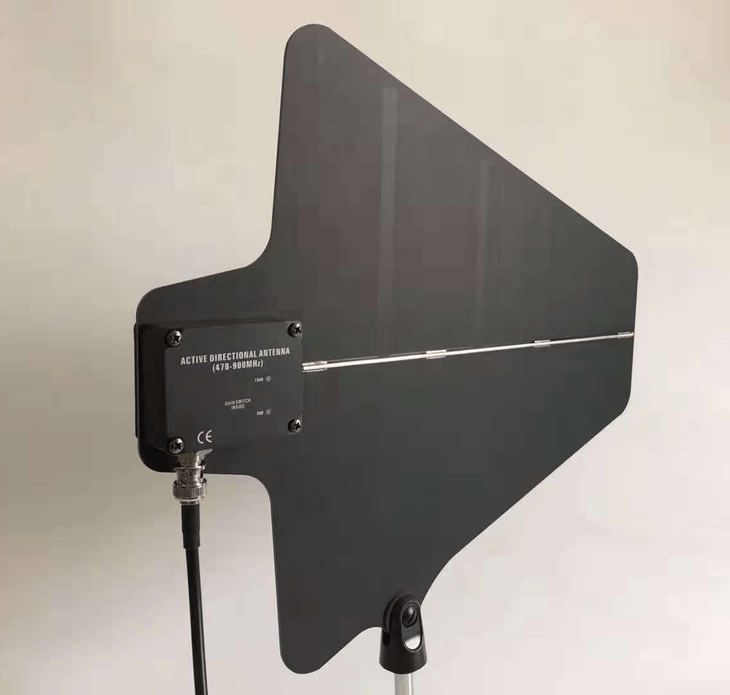

Directional antenna

■ Frequency range: 450~950MHz

■ 3dB beam width: 90 degrees vertical, 120 degrees horizontal

■ System impedance: 50Ω

■ Amplification gain: 15dB ± 1dB

■ Noise figure: <2dB

■ Output third-order intercept intercept point: +14dBm

■ System impedance: 50Ω

■ Power supply: 5~12V/80mA DC

■ Connector: BNC

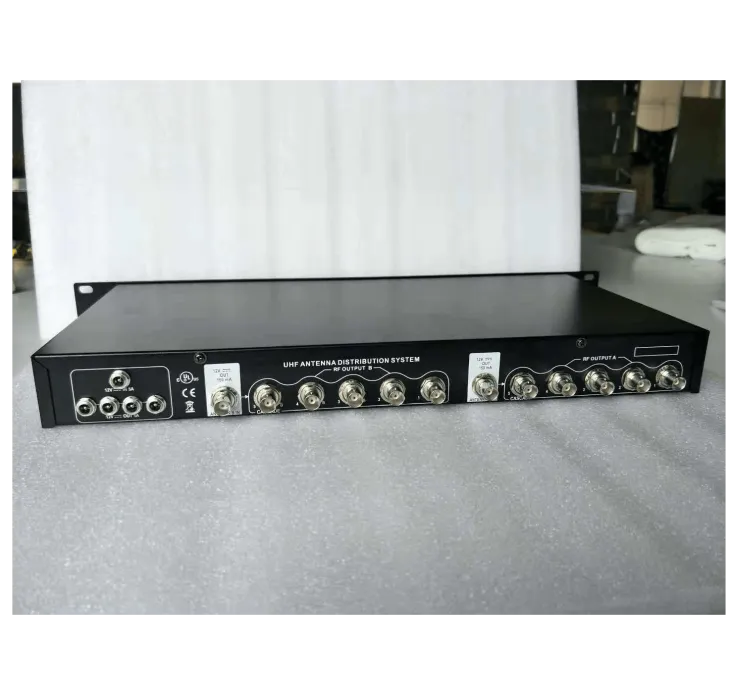

Antenna distributor

■ Frequency range: 450~950MHz

■ RF output gain: 1dB ± 1dB

■ Output third-order intercept intercept point: +14dBm

■ Noise figure: <2dB

■ System impedance: 50Ω

■ Antenna input connector power supply: 5V/80mA DC

■ Output power supply: 12V/1000mA DC output per channel

■ Host power supply: external power supply 12V/5A DC

■ Connector: BNC
