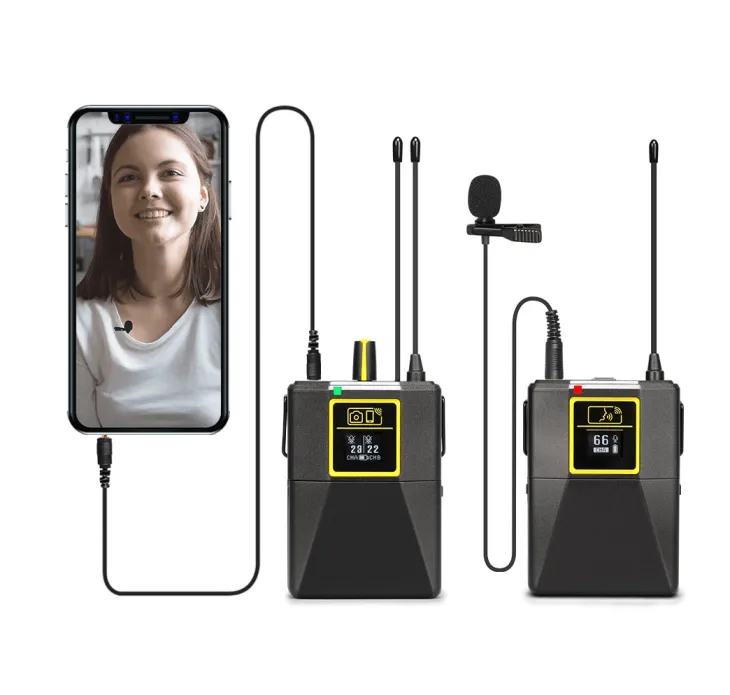

WM8 PRO-A1 UHF1 Channel Wireless Microphone System Interview Receiver Transmitter iPhone Camera
technical parameter
receiver:
Channels: 100 frequency points
Frequency Stability: ±0.005%
Carrier Frequency Range: UHF470MHz~960 MHz
Modulation Mode: FMstereo modulation
Oscillation: PLL synthesized
Sensitivity: 25KHz, <105dBm@12dB SINAD
The band width: 58MHz
Max. Deviation Range: ±45KHz
S/N: 80dB
T.H.D: <1%@1KHz
Frequency response: 45Hz-16KHz ±3dB
Working range: 120 m
Power Supply: AA1.5Vx2
Output Connector: 3.5MM
transmitter
Carrier Frequency Range: 470MHz~960 MHz
Oscillation mode: PLL Frequency synthesis technology
Harmonic Radiation: More than 45 DBM below the main wave
Bandwidth: 130MHz
Max. Deviation Range: ±45KHz
RF Output Power:: 10mW-20mW
Packing list of one transmitter and one receiver:
1 * Microphone transmitter
1 * Microphone receiver
1 * Lavalier microphone
1 * Stereo 3.5mm mini plug cable
1 *TRRS (SLR use)
1 *TRRRS (mobile phone use)
2 *Hot shoe soleplate
1 *Multi-function bracket
1 *Plastic storage box
