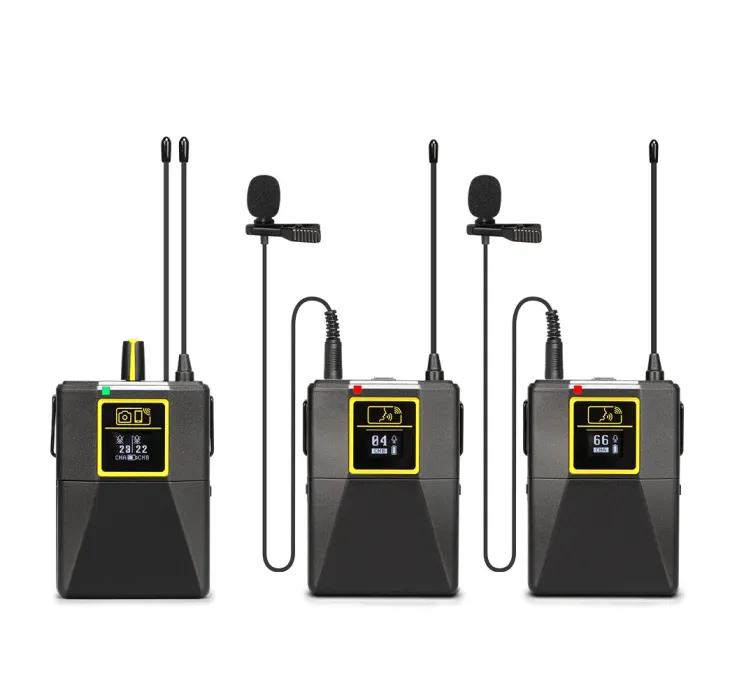

WM8 PRO-A2 UHF 2 Channel Wireless Microphone System Interview Receiver Transmitter iPhone Camera

In stock

technical parameter


Channels: 100 frequency points

Frequency Stability: ±0.005%

Carrier Frequency Range: UHF470MHz~960 MHz

Modulation Mode: FMstereo modulation

Oscillation: PLL synthesized

Sensitivity: 25KHz, <105dBm@12dB SINAD

The band width: 58MHz

Max. Deviation Range: ±45KHz

S/N: 80dB

T.H.D: <1%@1KHz

Frequency response: 45Hz-16KHz ±3dB

Working range: 120 m

Power Supply: AA1.5Vx2

Output Connector: 3.5MM


Carrier Frequency Range: 470MHz~960 MHz

Oscillation mode: PLL Frequency synthesis technology

Harmonic Radiation: More than 45 DBM below the main wave

Bandwidth: 130MHz

Max. Deviation Range: ±45KHz

RF Output Power:: 10mW-20mW

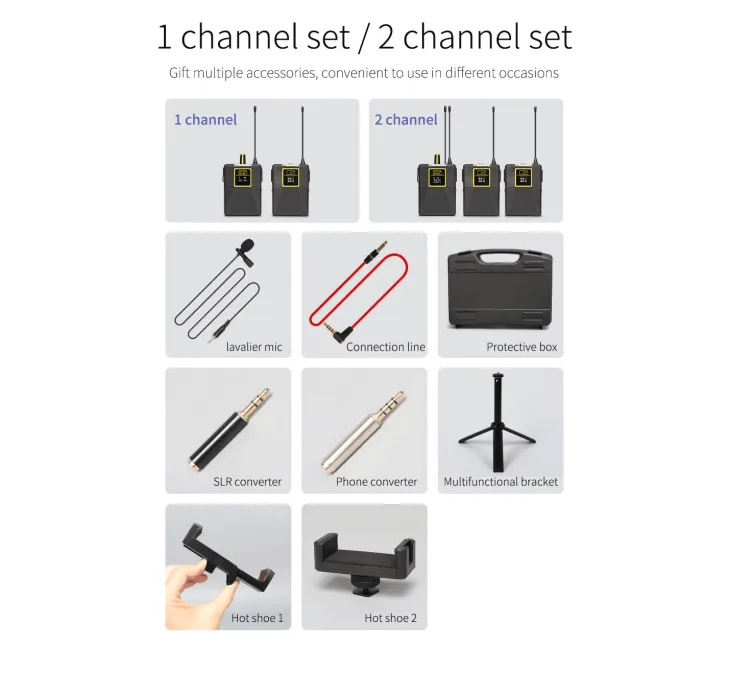

Packing list of two transmitters and one receiver:

2 * Microphone transmitter

1 * Microphone receiver

2 *Lavalier microphone

1 * Stereo 3.5mm mini plug cable

1 *TRRS (SLR use)

1 *TRRRS (mobile phone use)

2 *Hot shoe soleplate

1 *Multi-function bracket

1 *Plastic storage box
