BG-V20 Wireless Microphone System Wholesale

PROFESSIONAL AUDIO · B2B SOURCING

BG-V20 for Professional Buyers

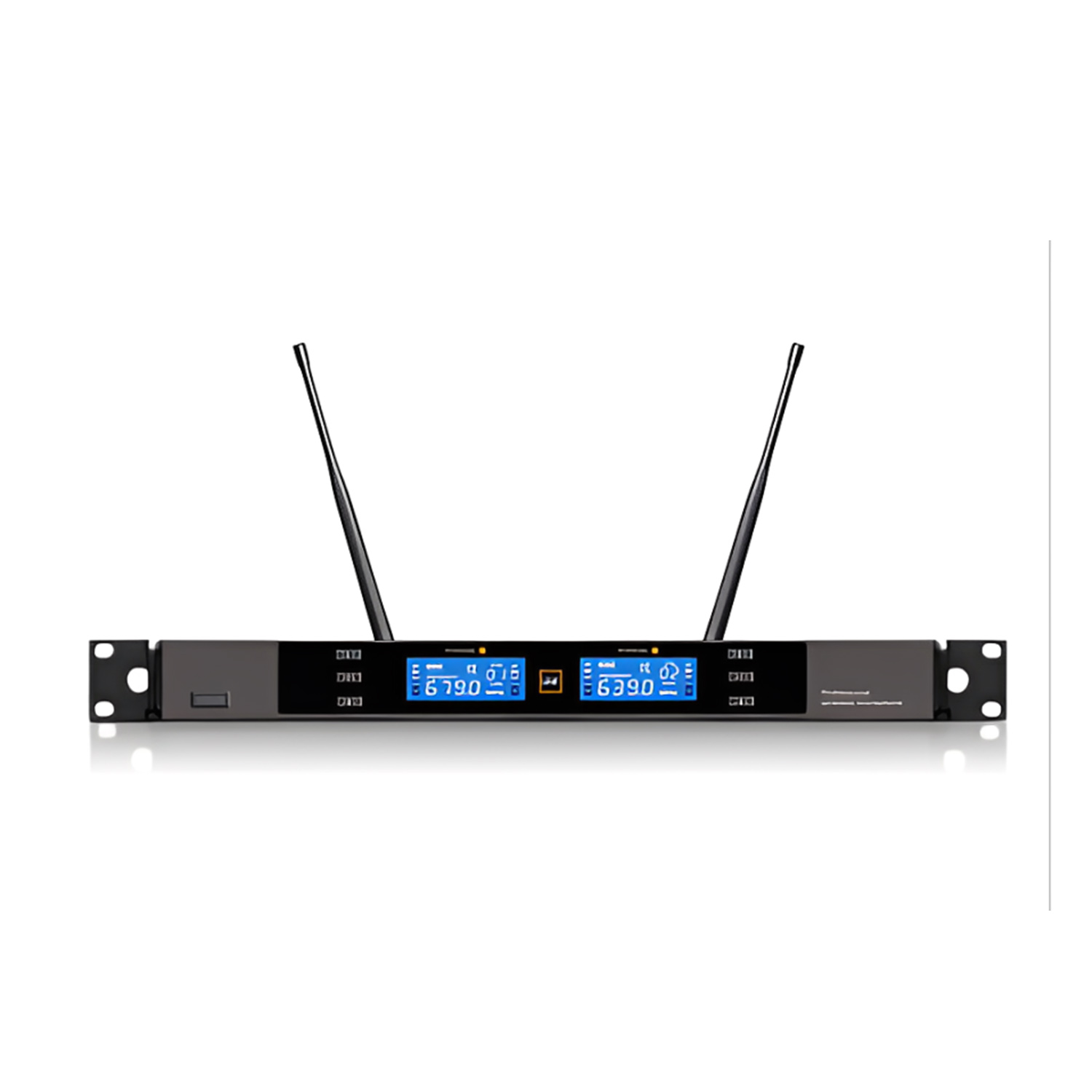

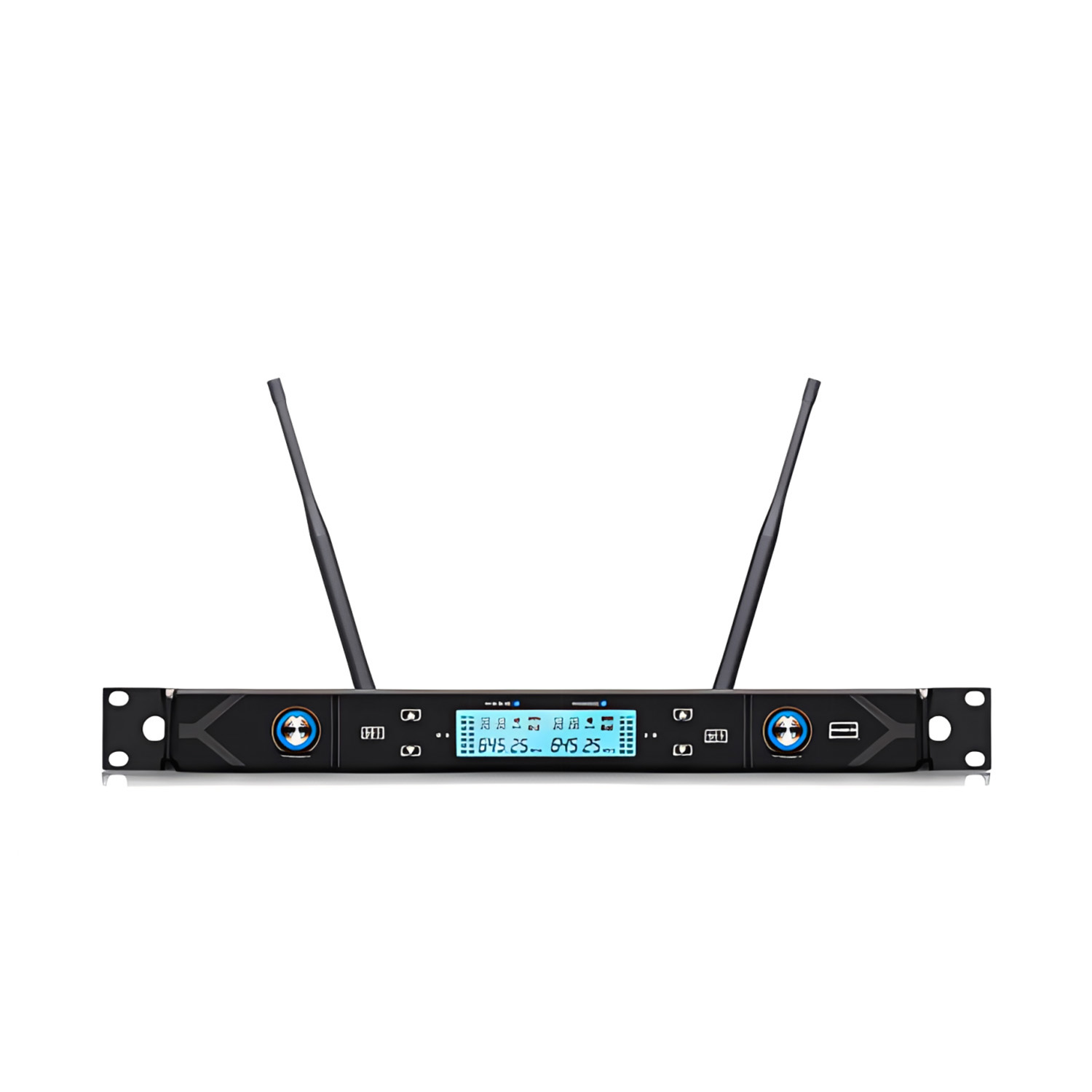

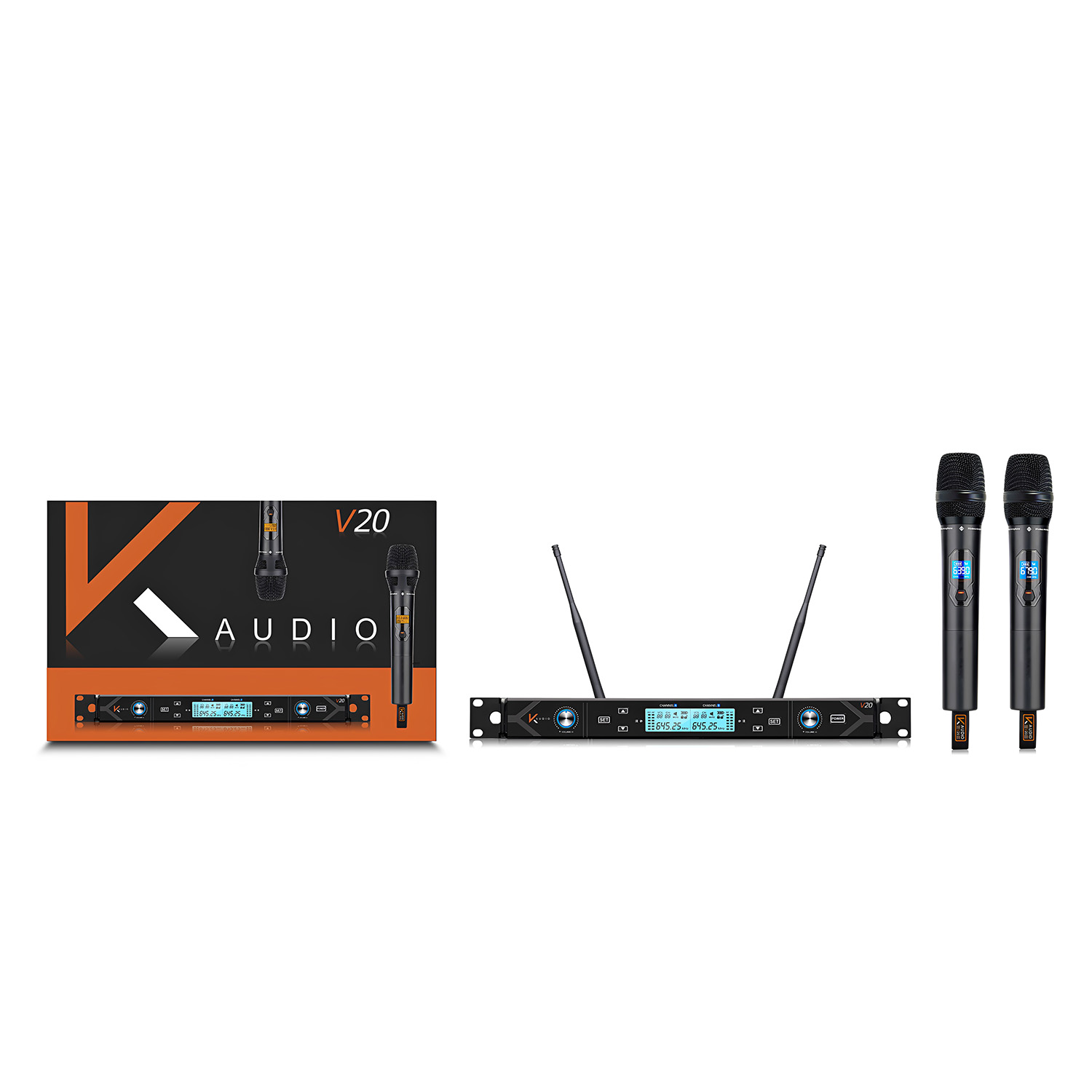

BG-V20 is a rechargeable 1U UHF wireless system with 60 MHz bandwidth, lithium-powered dynamic cardioid handheld and a stated 70 m open-space range.

REQUEST WHOLESALE PRICE

Why Buyers Consider the BG-V20

Clear sourcing profile: key RF, audio and power data are consolidated for comparison.
Application flexibility: suitable for professional audio, education, events and installation channels.
Regional ordering: exact operating band must be legal in the destination market.
Order verification: confirm transmitter type, included accessories, connector and carton details before purchase.

Product Overview

BG-V20 is a rechargeable 1U UHF wireless system with 60 MHz bandwidth, lithium-powered dynamic cardioid handheld and a stated 70 m open-space range.

Published Specifications

Rack size	1U
Channel groups	100 each for A and B
Carrier range	620.8–680.5 MHz
Bandwidth	60 MHz
Modulation	FM
Open-space distance	Generally 70 m
Sensitivity	−105 dBm
S/N ratio	>105 dB(A) receiver; >102 dB(A) transmitter section
System THD	<0.4% @ 1 kHz
System response	65 Hz–18 kHz ±3 dB
Receiver power	DC 12–18 V / 500 mA
Microphone	Dynamic cardioid
RF power	8 / 15 mW stated
Battery	1000 mAh lithium
Charge / use	Approx. 2.5 h / 6–8 h
Handheld size / weight	250 × 53 mm / 350 g
Compliance	Confirm frequency legality for destination market
Package / MOQ	Request confirmation

Applications and Buyer Fit

Suitable for venues, stages, events, karaoke, rental and professional-audio distribution.

ASK ABOUT DISTRIBUTOR TERMS →

Wholesale and Project Support

Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.

Frequently Asked Questions

Is the BG-V20 available for wholesale orders?
Yes. Contact ELEGAUDIO with your quantity, destination market and application for current pricing and availability.

Can specifications or packaging be confirmed before ordering?
Yes. Request the current specification sheet, packing information and order details before purchase.

What information should I include in an inquiry?
Please include model, quantity, destination country and intended application for a faster quotation.

Source the BG-V20 for Your Market

Request current pricing, availability and distributor support.

GET A QUOTE

Chassis specification: 1U Number of channel groups: 100 channels for A and B channels respectively Frequency bandwidth: 60MHz Carrier frequency band: 620.8-680.5MHz Modulation method: FM Effective working distance: generally 70 meters (open space) Receiving sensitivity: -105dBm Noise ratio: >105dB (A) Distortion: <0.8% Audio output telescreen: 8dBu max Comprehensive T.H.D:﹤0.4%@1KHz Comprehensive frequency response: 65Hz-18KHz±3dB Power supply: 12-18V DC, current 500MA, powered by external power supply Carrier frequency band: 620.8-680.5MHz Frequency bandwidth: 60MHz High wave printing: >55dBc Maximum frequency deviation: ±55KHz Frequency Response: 60Hz - 18KHz Signal-to-noise ratio: >102dB (A) Distortion: <0.5% Size (including microphone head): 250mm*53mm Weight: 350g Sound head: moving coil, cardioid directivity RF output power: 8mW, 8mW/15mW Battery: lithium battery. 1000MAH; charging time is about 2.5 hours Current Consumption: 90mA Battery consumption/life: about 6-8 hours
