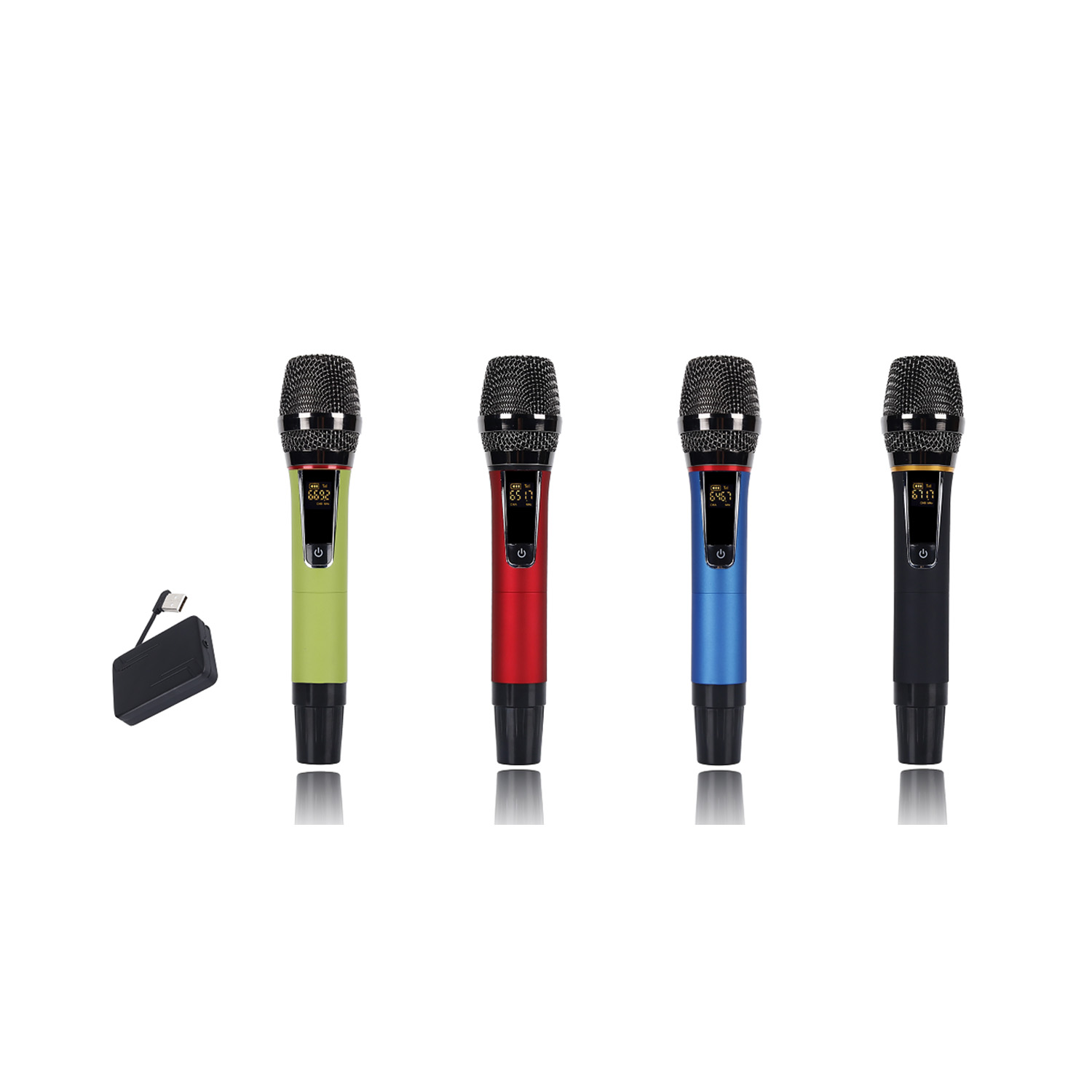

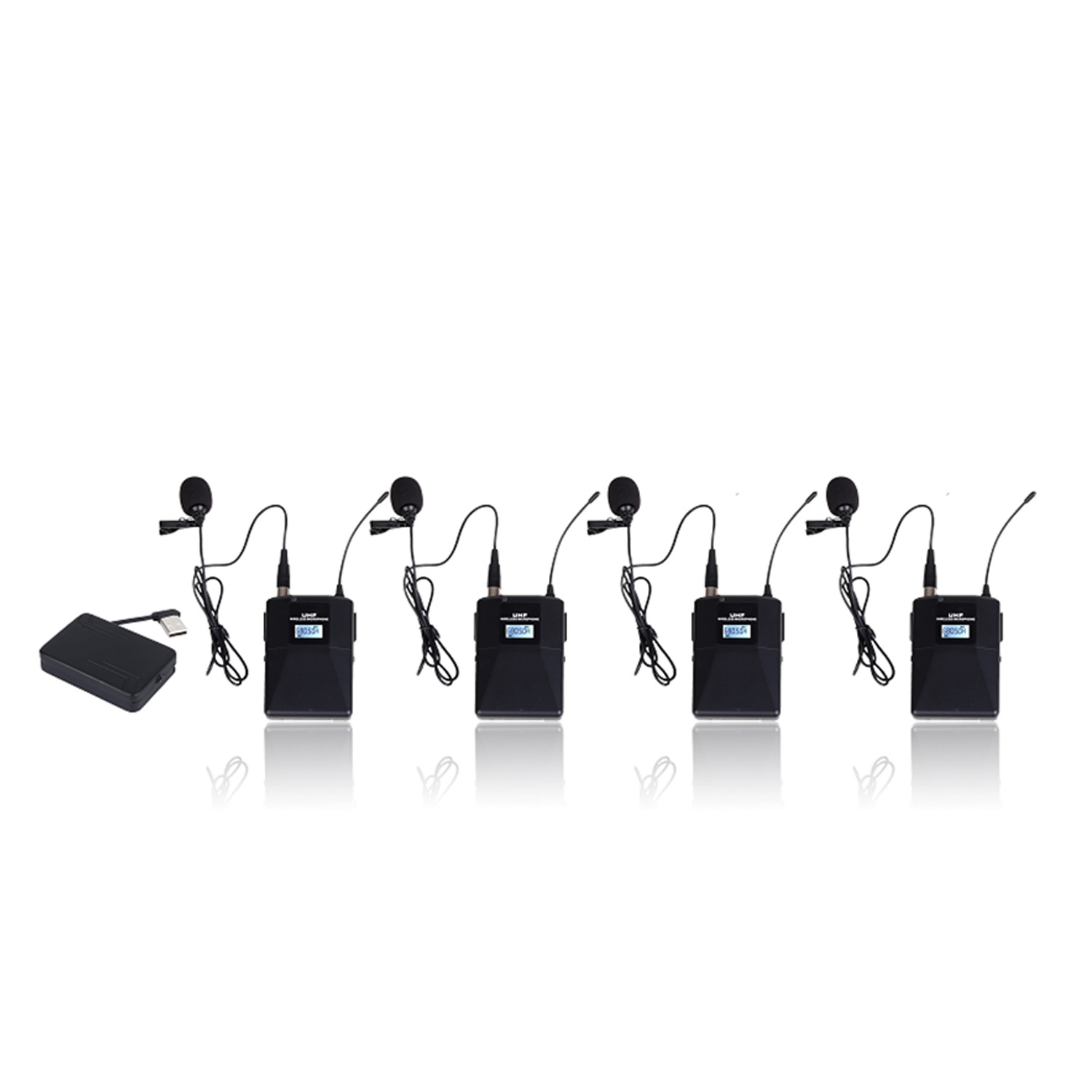

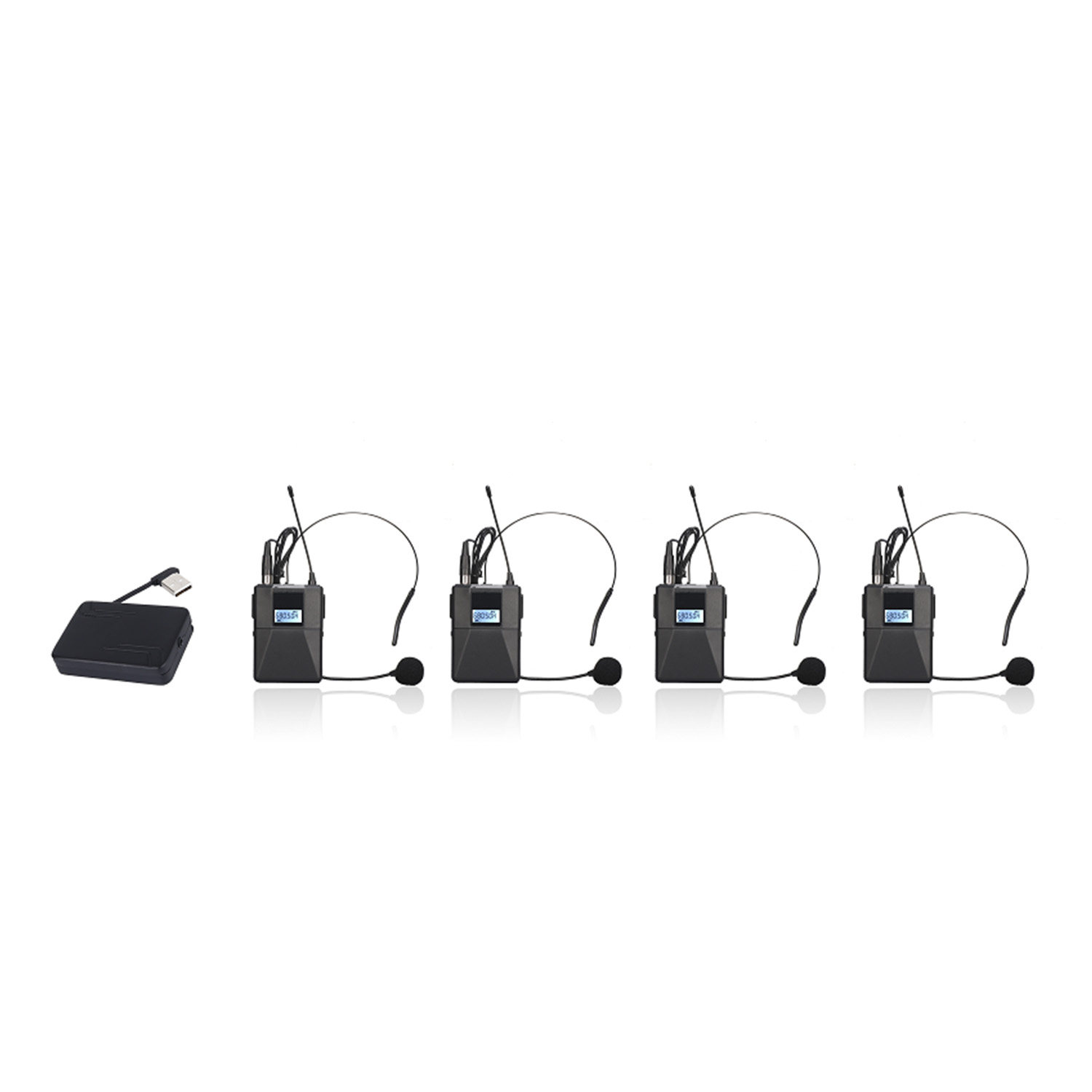

USB-104 4 Channels UHF Wireless Microphone
Request USB-104 regional band, transmitter set and wholesale pricing.
SKU:A30013
PROFESSIONAL AUDIO · B2B SOURCING
USB-104 is a one-to-four UHF wireless receiver with USB and 3.5 mm outputs, optional 480–940 MHz operating versions, 60 MHz RF bandwidth, 400 frequency points, 30 Hz–18 kHz response and 2.5 ms published receive delay.
USB-104 is a one-to-four UHF wireless receiver with USB and 3.5 mm outputs, optional 480–940 MHz operating versions, 60 MHz RF bandwidth, 400 frequency points, 30 Hz–18 kHz response and 2.5 ms published receive delay.
| Model | USB-104 |
| Channels | 4 |
| Output interfaces | USB and 3.5 mm |
| Frequency range | 480–940 MHz optional versions |
| RF bandwidth | 60 MHz |
| Frequency points | 400 |
| Signal-to-noise ratio | 96 dB |
| Receiver sensitivity | −108 dBm at 12 dB SINAD |
| Frequency response | 30 Hz–18 kHz |
| Distortion | 0.05% |
| Dynamic range | 90 dB |
| Receive delay | 2.5 ms |
| Power | USB 5 V |
| Compliance | Confirm ordered frequency and market approval |
Suitable for karaoke, meetings, education, worship, live events, compact PA and wireless-microphone distributors.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
Is the USB-104 available for wholesale orders?
Yes. Contact ELEGAUDIO with your quantity, destination market and application for current pricing and availability.
Can specifications or packaging be confirmed before ordering?
Yes. Request the current specification sheet, packing information and order details before purchase.
What information should I include in an inquiry?
Please include model, quantity, destination country and intended application for a faster quotation.
