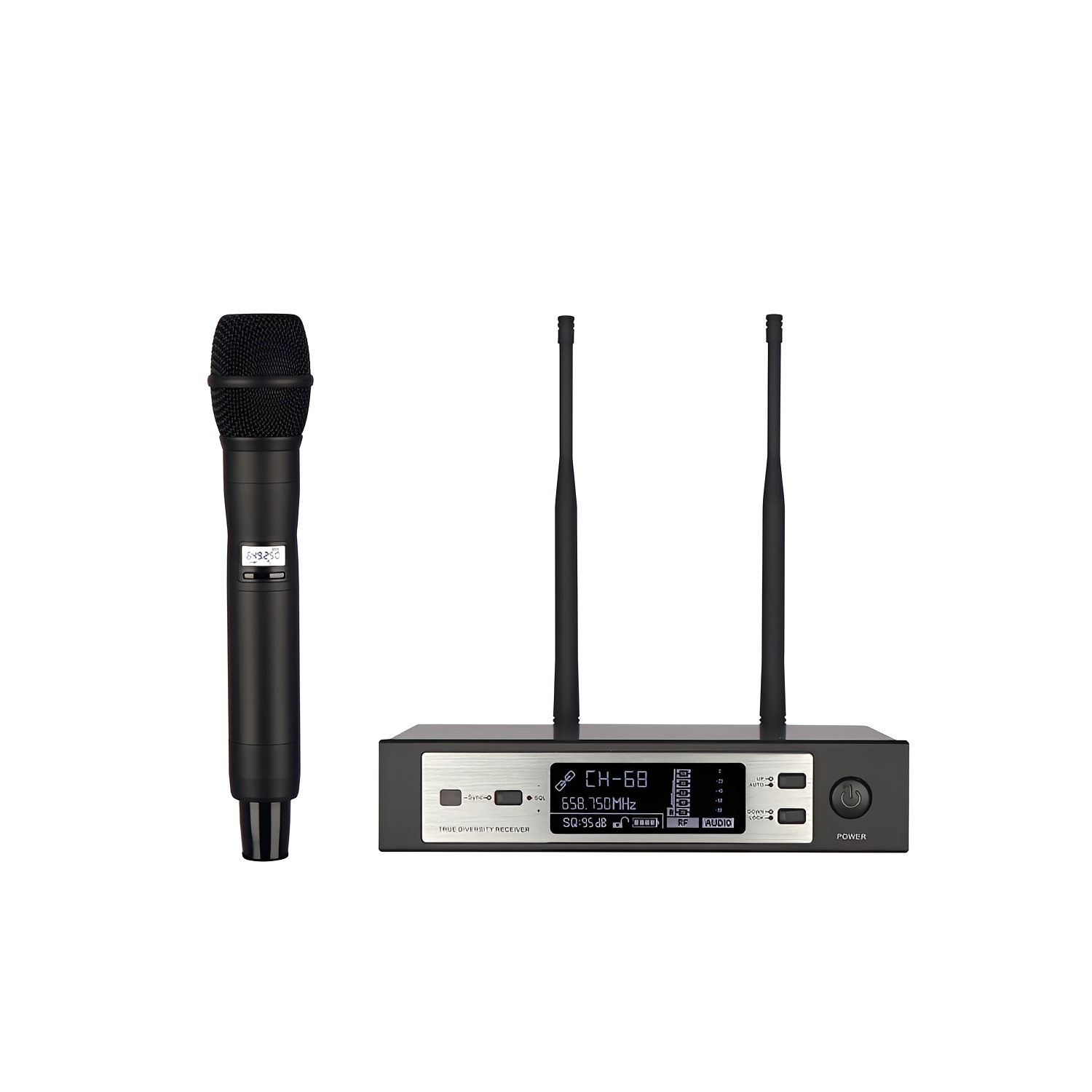

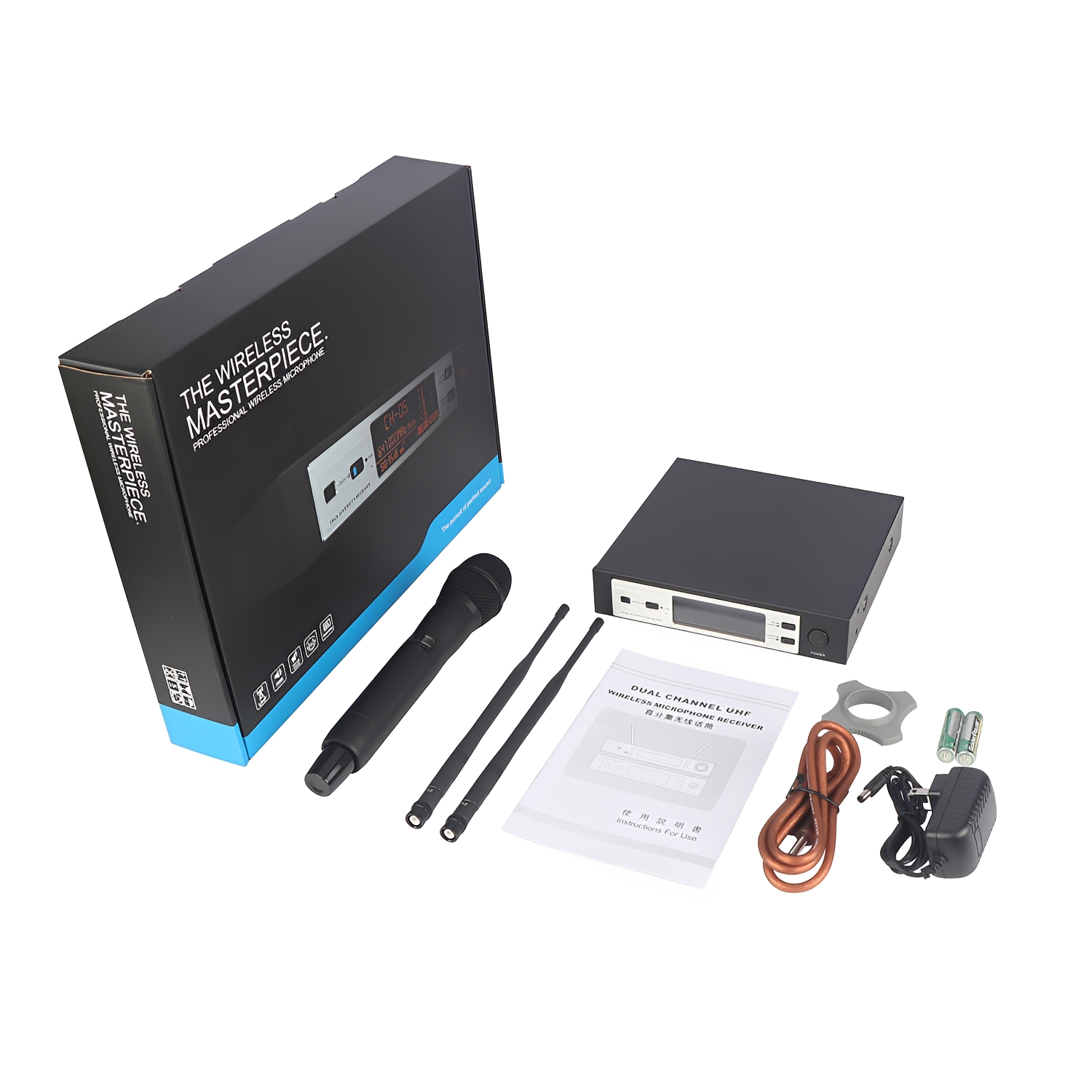

SKM-9100 1 Channel Wireless True Diversity Microphone

SK-9100 Small Studio True Diversity True Network System – Technical Specifications

Key Features

• Proprietary design: UHF ultra-wideband transmission, true diversity reception, dual-CPU control, LCD display, metal casing, PLL technology, noise detection

• 160 frequency points for simple and easy operation

• Microcomputer CPU control: enables frequency selection, display, mute lock, battery monitoring, and other advanced functions

• LCD screen for full menu visualization and easy control

Receiver

• Chassis: Standard 1U

• Channels: Dual channel

• Carrier frequency band: UHF 615–665MHz / 740–820MHz

• Modulation: FM

• Oscillation: PLL phase-locked synthesizer

• Frequency stability: ±0.0005%

• Sensitivity: @ 25kHz deviation, 6dBμV input, S/N >60dB

• Maximum deviation: ±45kHz

• Bandwidth: 40MHz

• Signal-to-noise ratio: >108 dB

• Total harmonic distortion: <0.4% @ 1kHz

• Frequency response: 65Hz–18kHz ±3dB

• Max output voltage: Balanced: -20dBV/100Ω; Unbalanced: -4dBV/5kΩ

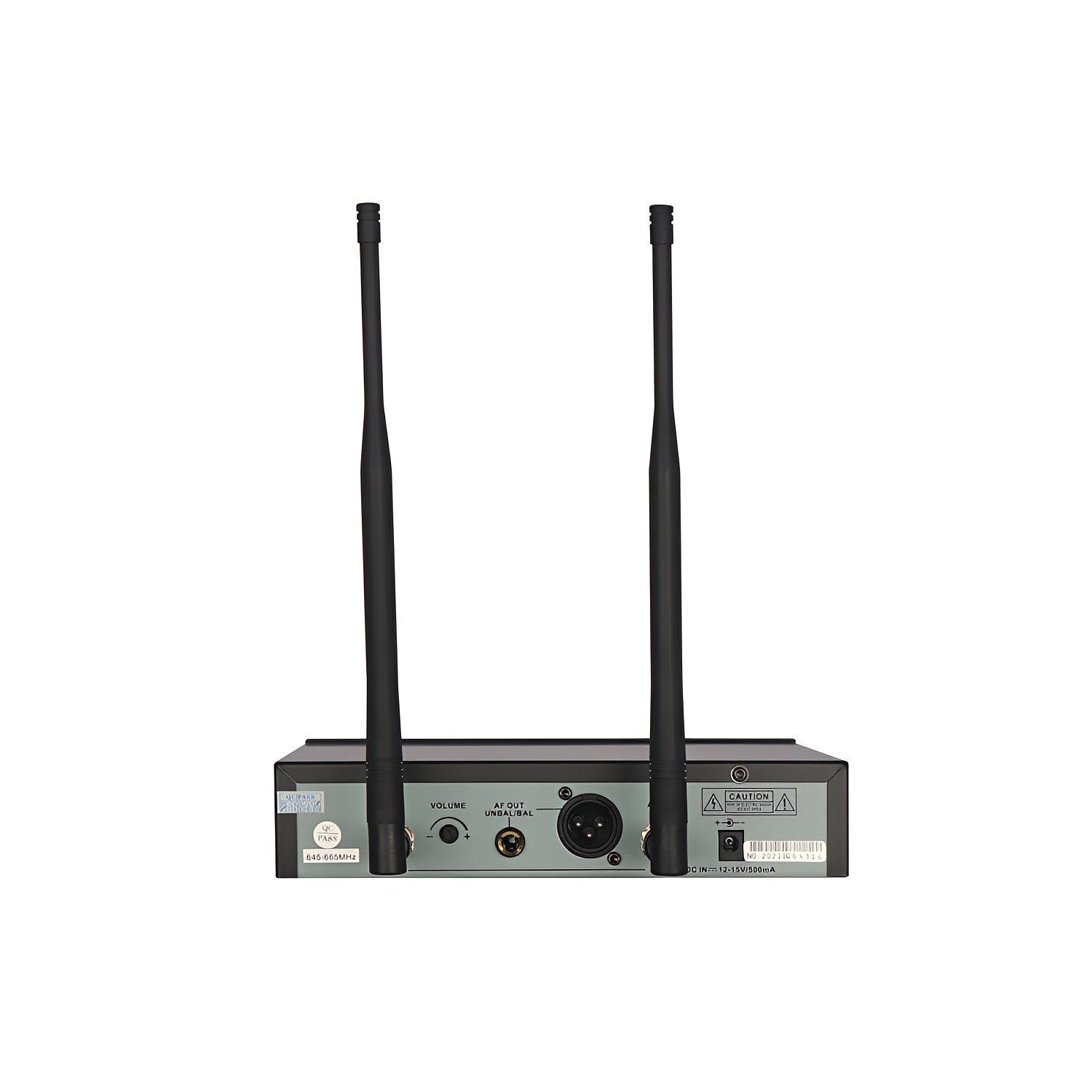

• Output connectors: XLR balanced & 6.3mm unbalanced

• Operating range: Approx. 100m (open area)

• Power supply: 100–240V AC 50/60Hz, 10W

• Dimensions (mm): 210(L) × 43(H) × 206(W)

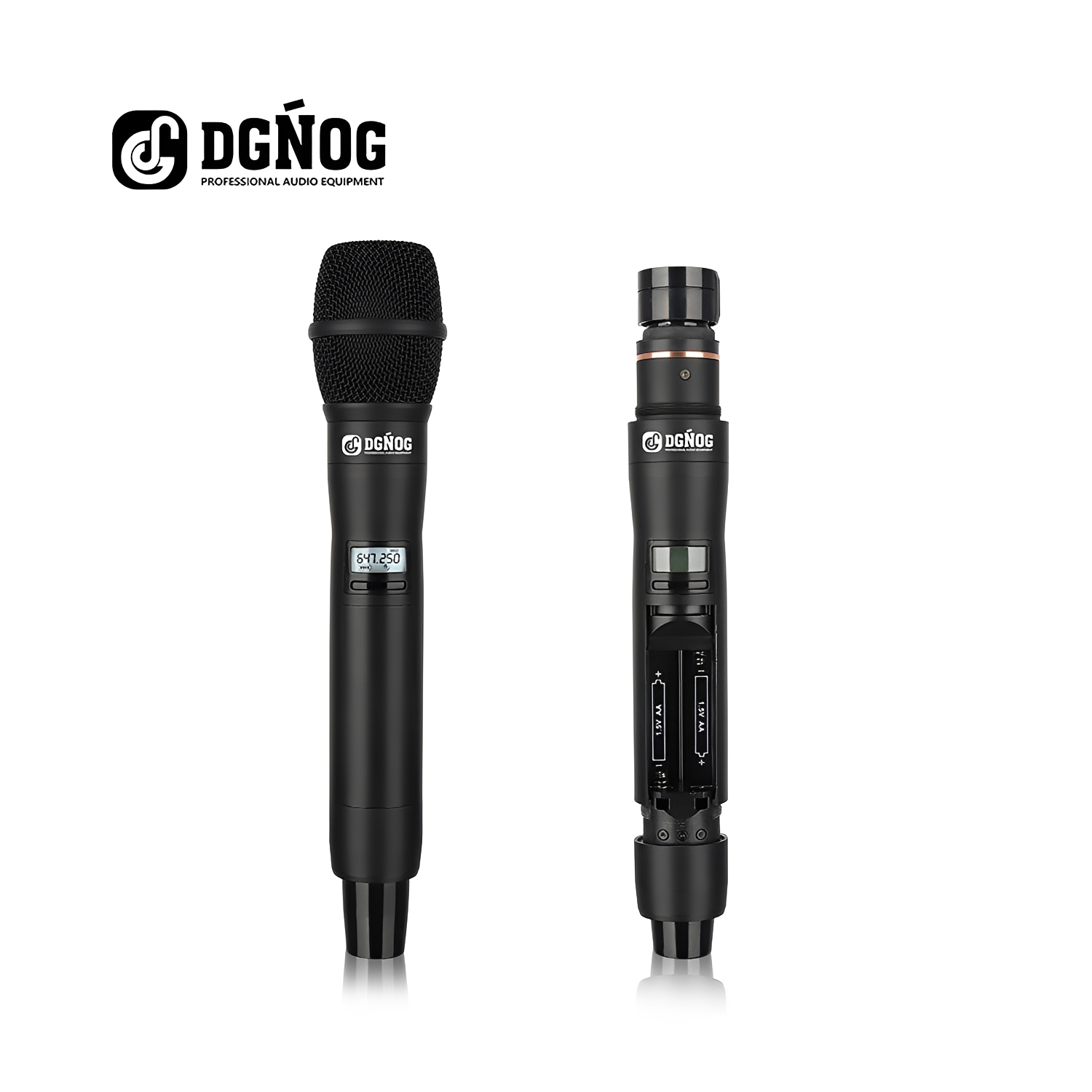

Handheld Transmitter Microphone

• Carrier frequency band: UHF 620–680MHz / 740–820MHz

• Oscillation: PLL phase-locked synthesizer

• Harmonic radiation: < -63dBm

• Bandwidth: 80MHz

• Maximum deviation: ±45kHz

• RF output power: 30mW

• Frequency response: 50Hz–18kHz

• Max SPL: 130dB

• Capsule type: Dynamic

• Battery: AA × 2

• Current consumption: <110mA

• Dimensions (mm): 265(L) × 56(dia.)
