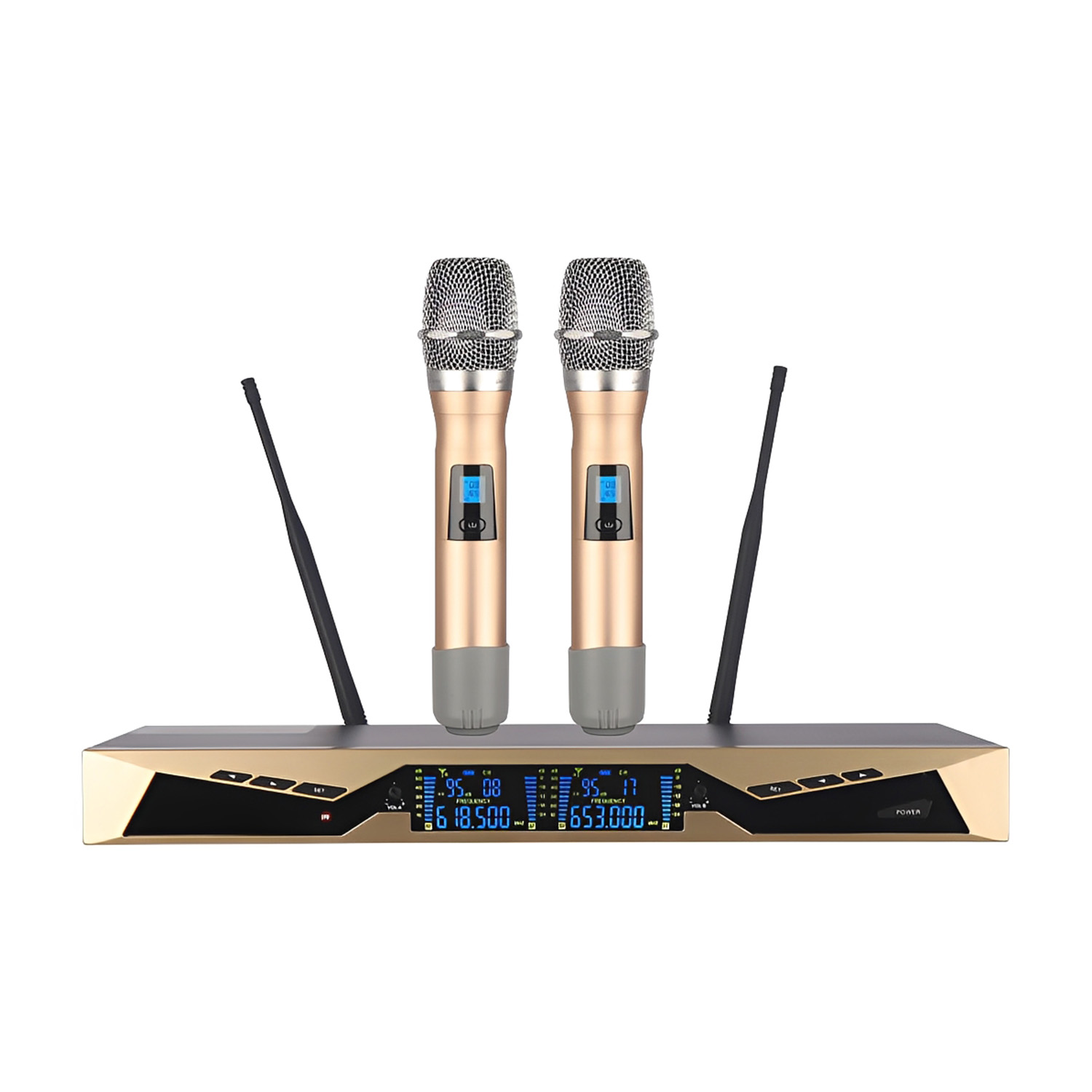

Product Description
AFS automatically searches for the cleanest frequency in the actual environment. After pressing the up key for 3 seconds, it will automatically search and lock to work on an undisturbed frequency.
1Signal strength SQ setting
2 Unique ID lock frequency DPLL
3 Stage sound quality
4 LCD screen real-time monitoring, battery display
5 Integrated mini two-wire antenna splitter, true diversity UHF, stable signal, strong anti-interference ability.
Applicable to: high-end KTV with professional sound quality. It supports simultaneous use of 80 private rooms without cross-frequency interference.
Receiver
Chassis specifications: standard 1U chassis
Number of channel groups: dual channels
Carrier frequency band: UHF 615 ~ 665MHz
Modulation method: FM
Oscillation mode: PLL phase locked frequency synthesizer
Frequency stability: ±0.0005%
Sensitivity: When the offset is equal to 25KHz and 6dBμV is input, S/N>60dB
Maximum deviation: ±45kHz
Frequency bandwidth: 40MHz
Comprehensive S/N ratio: >108 dB
Comprehensive T.H.D.: <0.4% @ 1 KHz
Comprehensive frequency response: 65Hz~18kHz ± 3dB,
Maximum output voltage: balanced: -20dBV/100Ω,
Unbalanced: -4dBV/5KΩ.

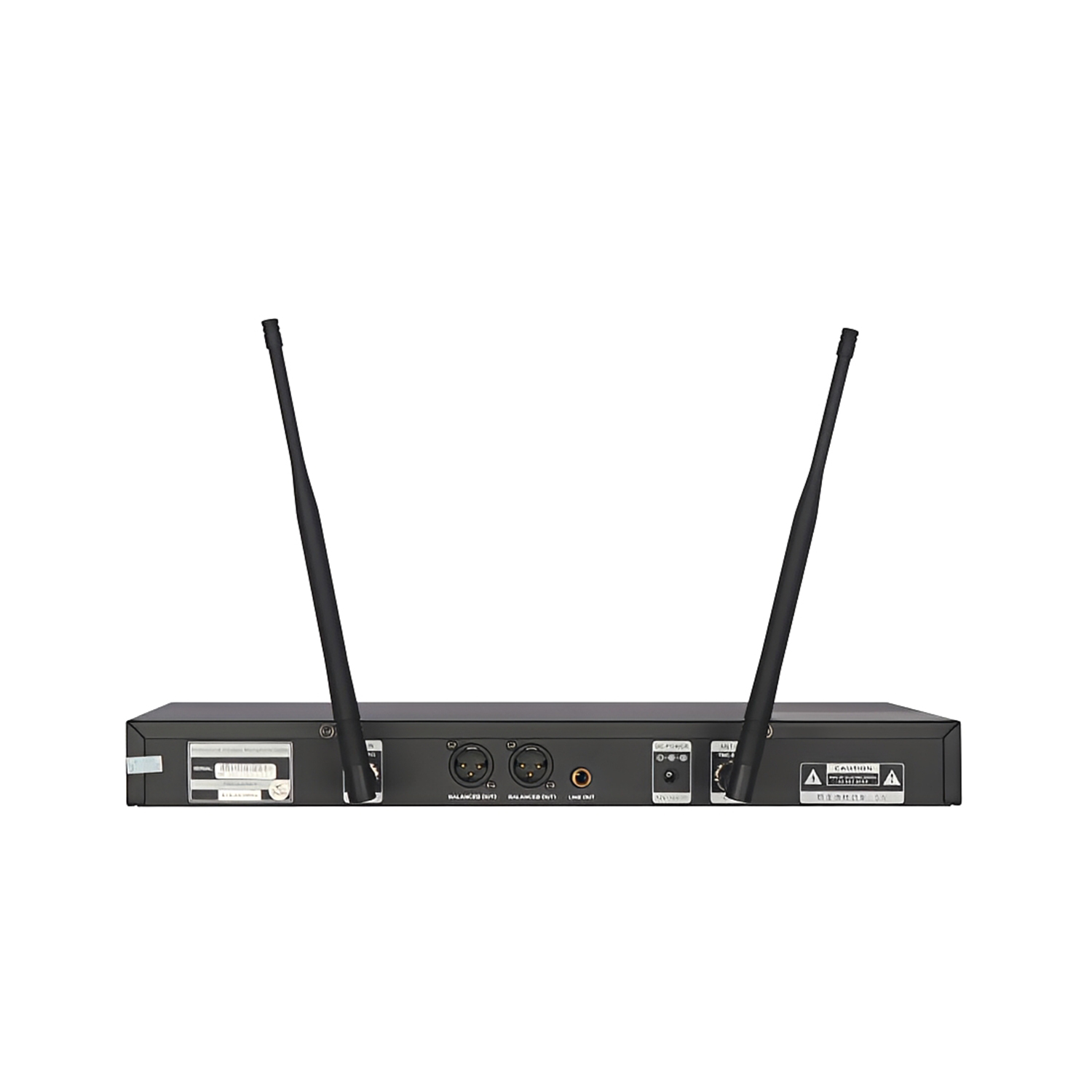

Output socket: XLR balanced and 6.3φ unbalanced socket
Effective working distance: generally 100 meters (open place)
Power supply: 100-240V AC50/60 Hz, 10W
Weight: 4.3KG
Size (mm): 421 (L) ×43 (H) ×206 (W)
Handheld transmitter microphone
Carrier frequency band: UHF 615 665MHz
Oscillation mode: PLL phase locked frequency synthesizer
Harmonic radiation: <-63dBm
Frequency bandwidth: 80MHz
Maximum deviation: ± 45KHz
Power output: 3 0mW
Frequency response: 50Hz~18KHz
Maximum input sound pressure: 130dB SPL
Sound head: moving coil
Battery: AA×2
Current consumption: <110 mA
Size (mm): 265mm long × 56mm diameter
