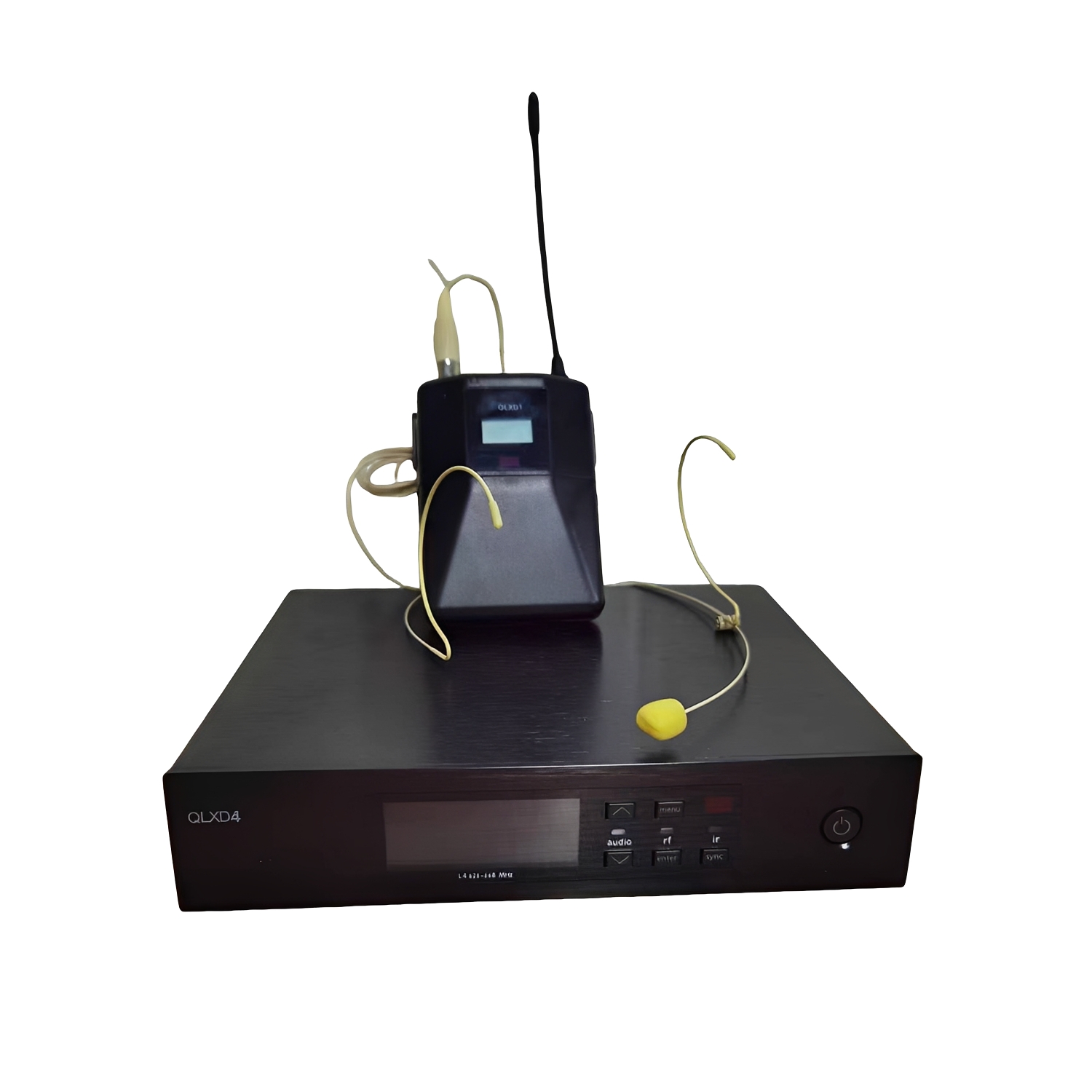

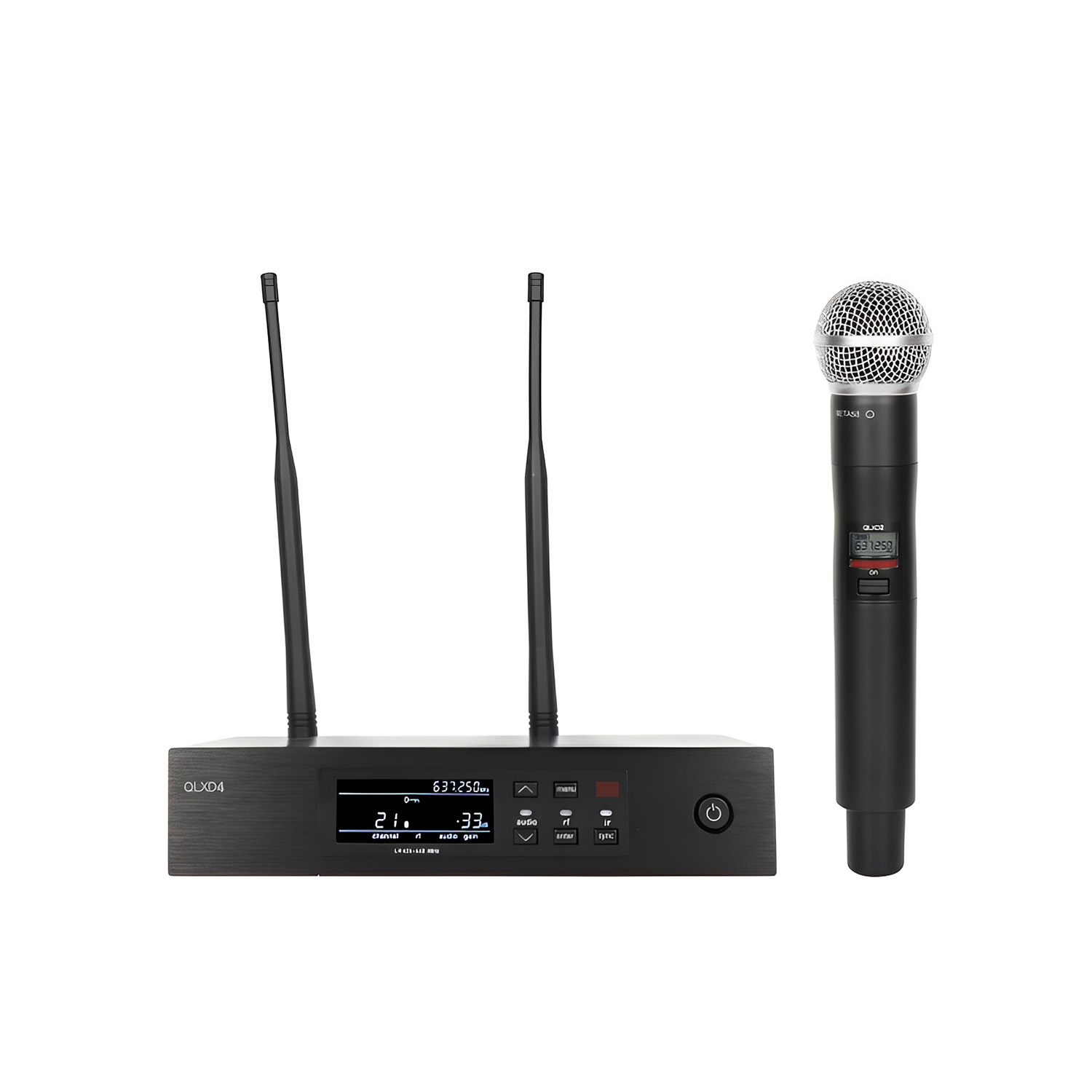

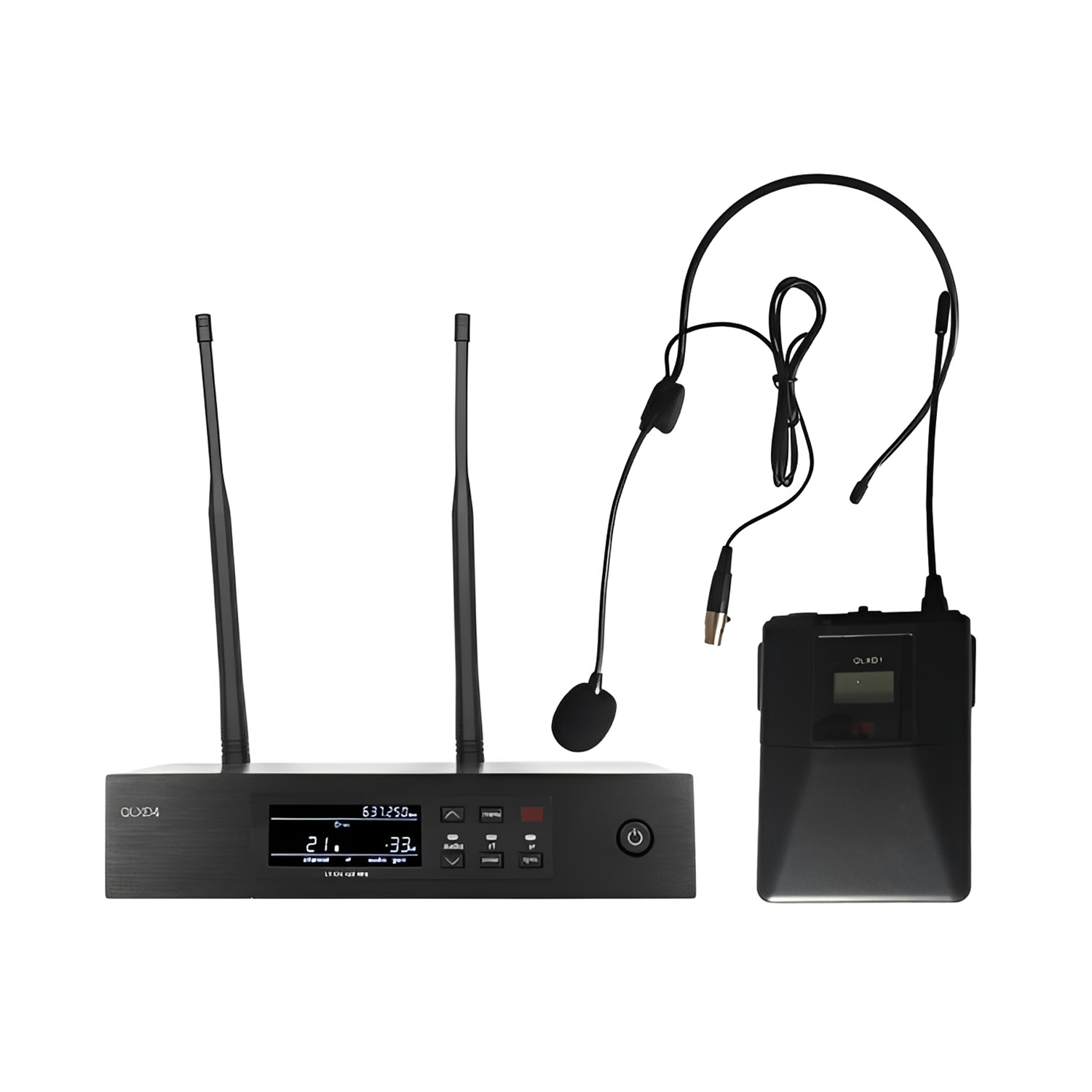

Product Description
Receiver
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 520MHz~952MHz
S/N Ratio: >75dB
T.H.D: <1%
Display: LCD
Display Contents: Channel, Antenna A/B, Mute Display, RF/AF, Level Meter,Battery Fuel Gauge,ID Number
Controls: Power On/Off, Frequency Up/Down, Audio Level, Lock-on, ID Pairing, Remoset
Audio Output Level: -12dB
AF Output Impedance: 600Ω
Squelch: Pilot Tone & Noise Mute
Operation Voltage: 12-17VDC, 600 mA
Output Connector: 1 XLR Balanced Socket
1 φ6.3mm Unbalanced phone jack
Dimension(m/m): 80mm(W) * 44mm(H) * 213mm(D)

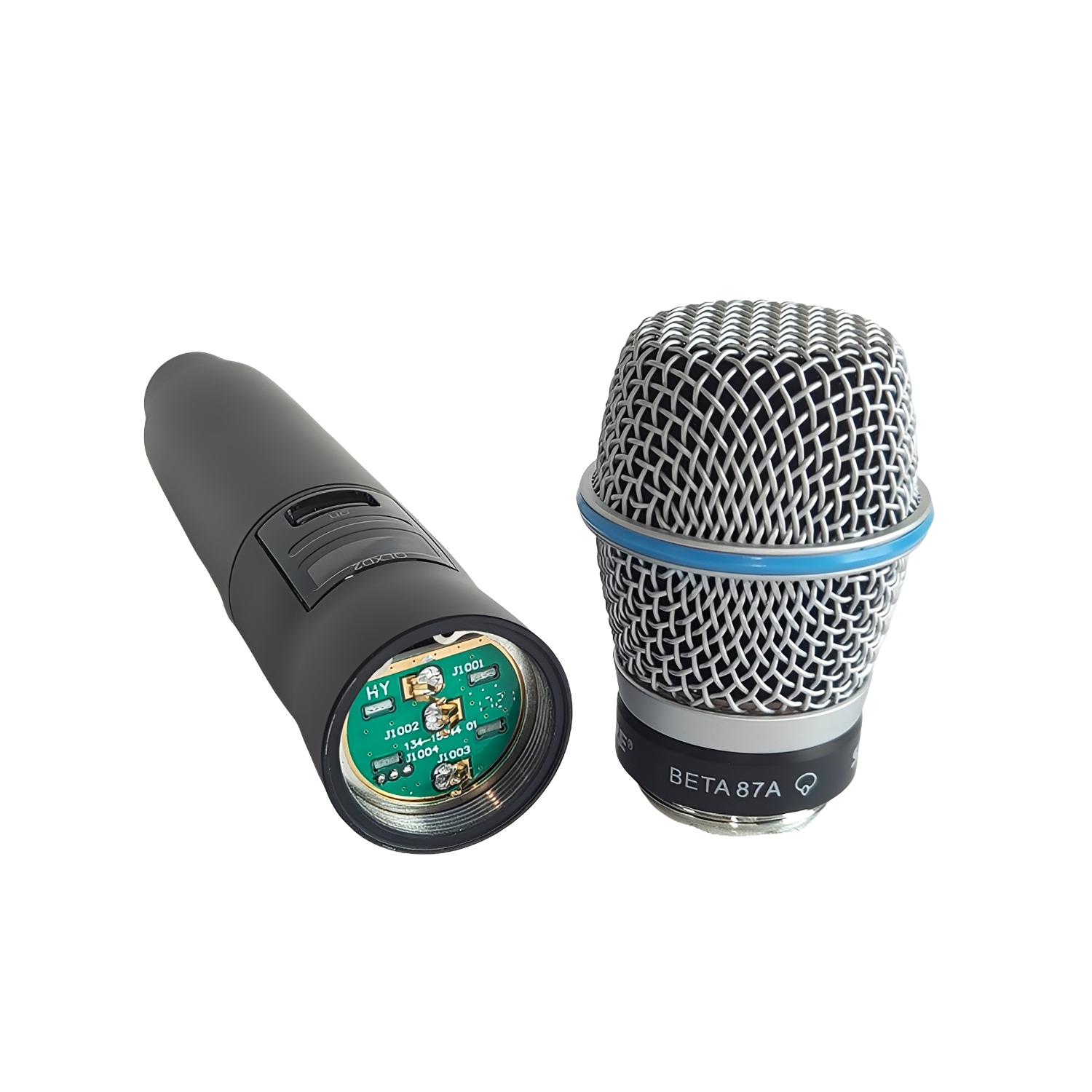

Transmitter
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 500MHz~870MHz
RF Outputs: 5-50mW
Stability: ±0.005%
Frequency Deviation: ±48kHz
LCD Display: Channel, Battery Fuel Gauge, ID Number Controls Power On/Off, AF Level, Frequency Up/Down, Lock-on Mode, ID Pairing
Spurious Emissions: <-60 dBC
Audio Frequency Response: 50Hz~18KHz
Battery: AA 1.5V*2
