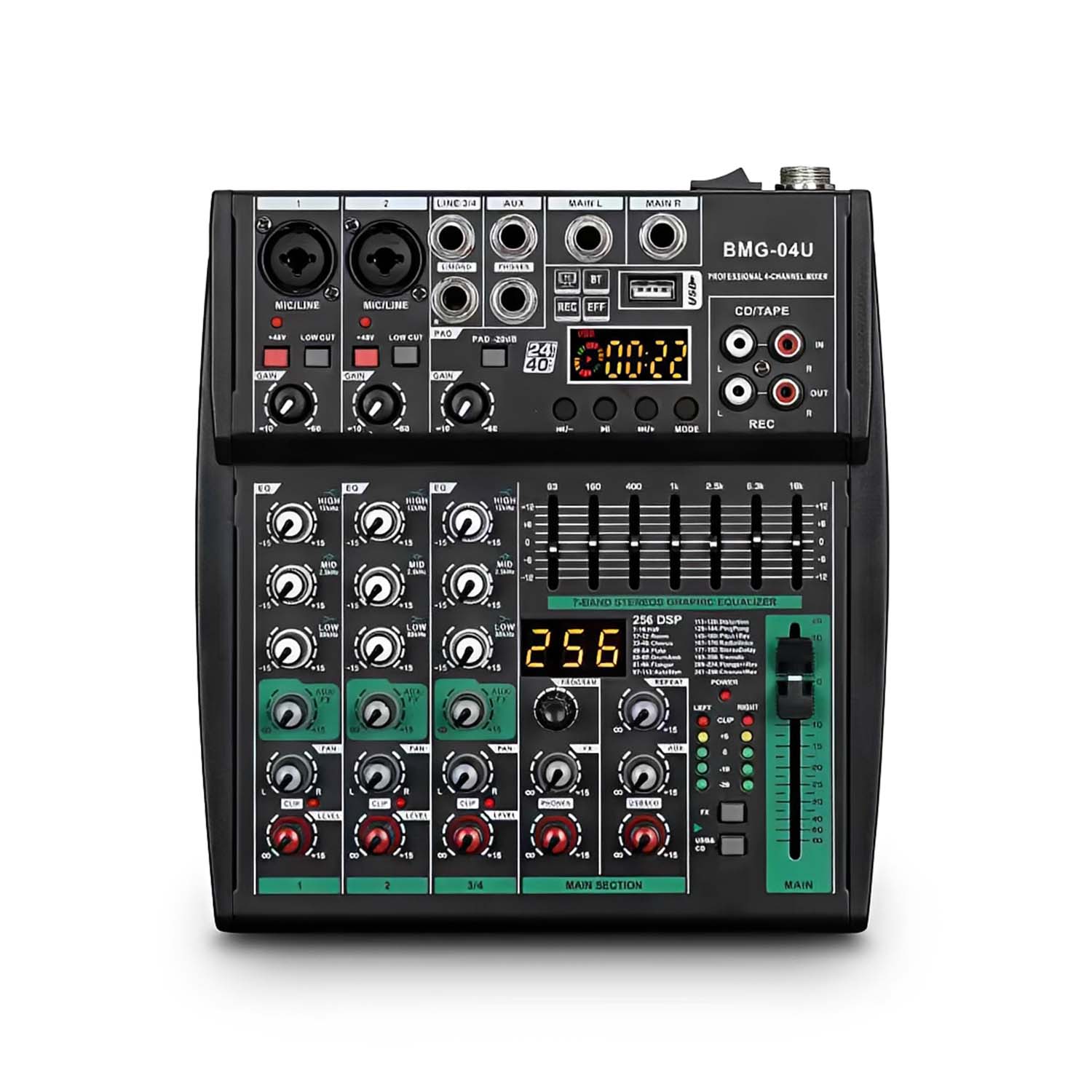

BMG-04U 4-Channel Professional Mixing Console
SKU:M91117
Product Specifications
Model: BMG-04U, BMG-06U, BMG-08U
Specification / Details
Frequency Response: +0.5 dB/-1.5 dB (20 Hz - 48 kHz)
THD+N: 0.03% @ +14dBu (20Hz-20kHz); 0.005% @ +24dBu (1kHz)
Noise: Input: -128 dBu; Output: -102 dBu
Crosstalk: -78 dB @ 1kHz
Input Channels: Mono: 04U=2, 06U=4, 08U=6; Stereo: 2 each; PHONES: 1
Output Channels: AUX: 1
PAD: 20 dB
HPF: 80 Hz, 12 dB/oct
EQ: HIGH: ±15dB @ 10kHz; MID: ±15dB @ 2.5kHz; LOW: ±15dB @ 100Hz
PEAK LED: Lights at 3dB below clipping
Level Meter: 2x5 LED: [CLIP, +6, 0, -10, -20 dB]
Digital Effects: 256 Presets
USB Audio: 2.0, 48kHz, 16-bit
Phantom Power: +48V
Power: AC 100-240V, 50/60 Hz
Power Consumption: 04U: 36W; 06U: 30W; 08U: 22W
