Product Description
Main features
The 12 channel input includes: 8 microphone inputs, 2 stereo inputs, and 2 digital stereo inputs (USB playback, USB sound card/fiber optic input). The 16 channel input includes: 12 microphone inputs, 2 stereo inputs, and 2 digital stereo inputs (USB playback, USB sound card/fiber optic input).

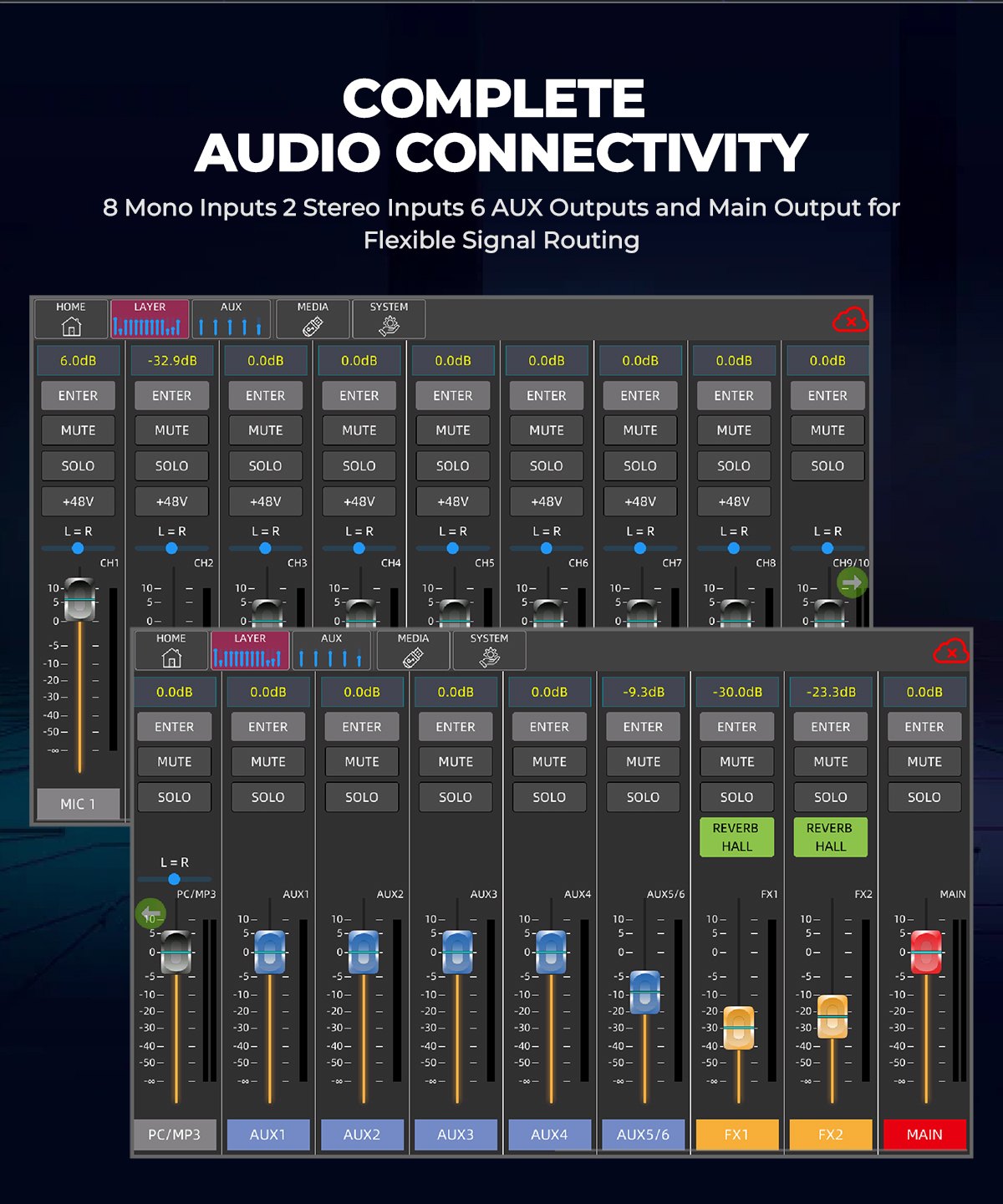

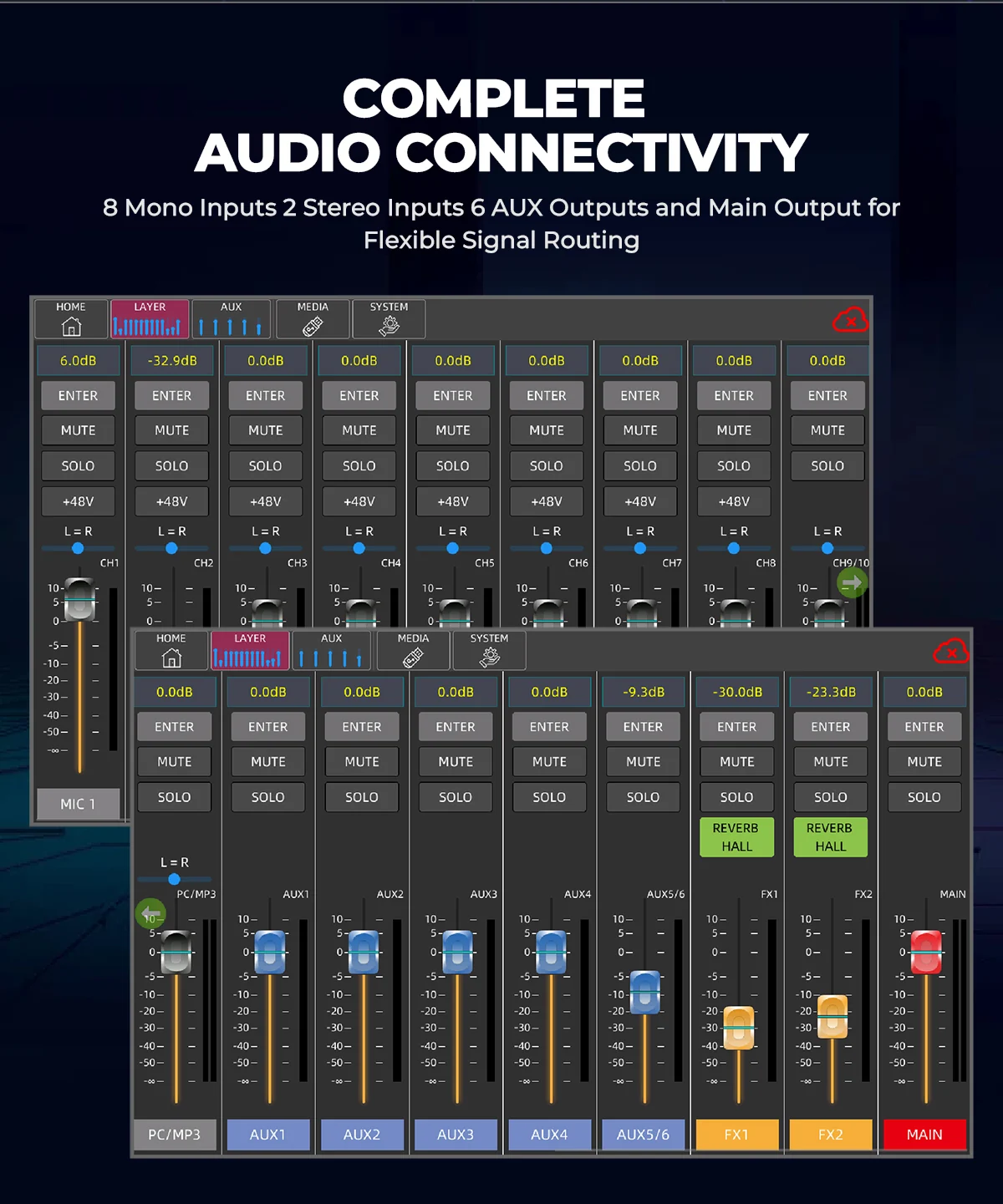

"Input Section:
• 16-channel inputs comprise:
12 mono microphone inputs
2 stereo line inputs
2 digital stereo inputs (USB playback, USB audio interface/optical input)"
"Output Section:
• 6 AUX output channels
• 1 stereo main output
• 1 stereo monitor output
• 2 stereo digital outputs (USB audio interface, USB recording)"

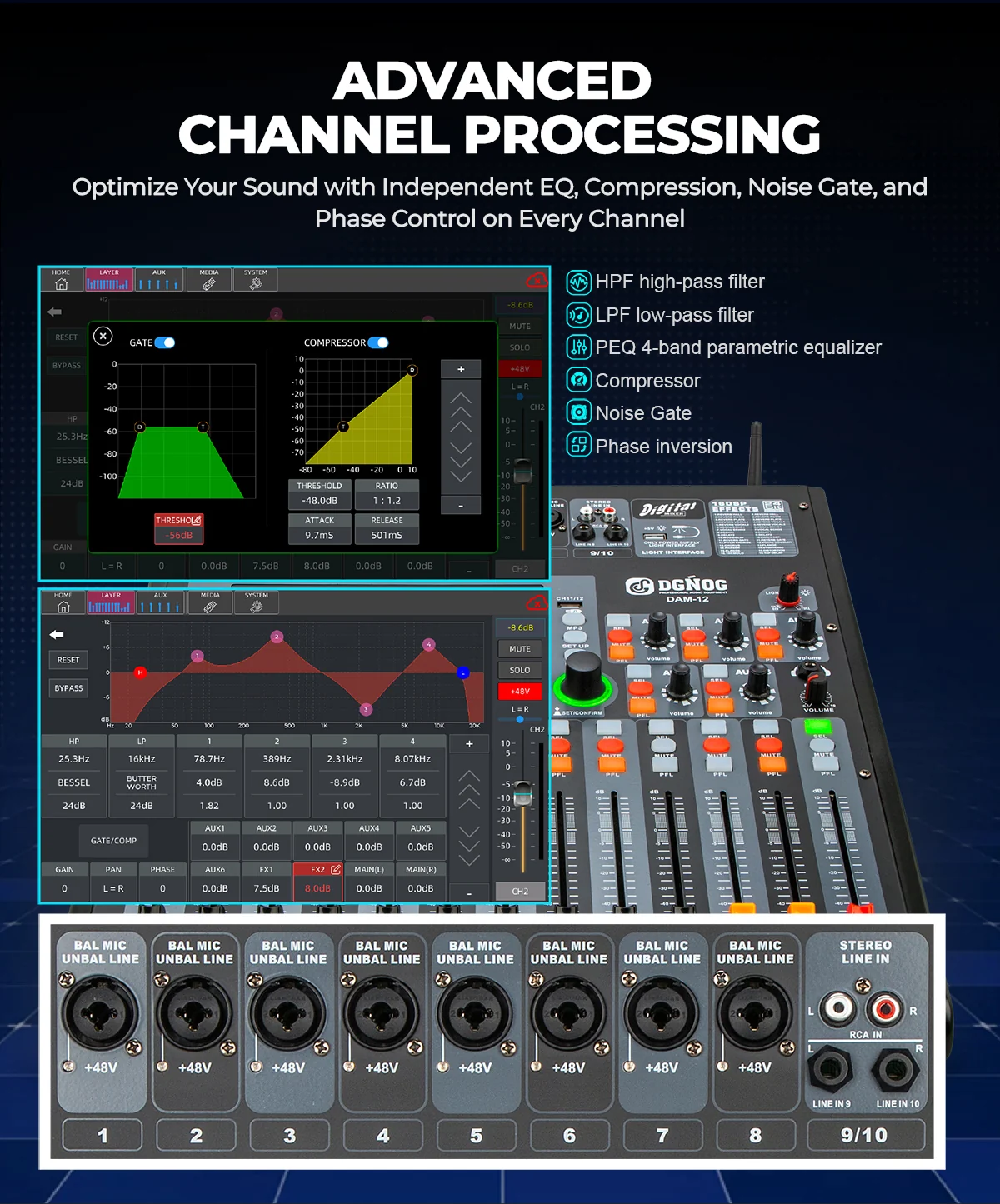

"Channel Processing Features:
• All input channels equipped with independent:
High-pass filter (HPF)
Low-pass filter (LPF)
Parametric EQ (PEQ)
Dynamics compressor
Noise gate
Phase inversion processing
• All microphone inputs feature:
High-resolution programmable digital gain control
Individual +48V phantom power switches

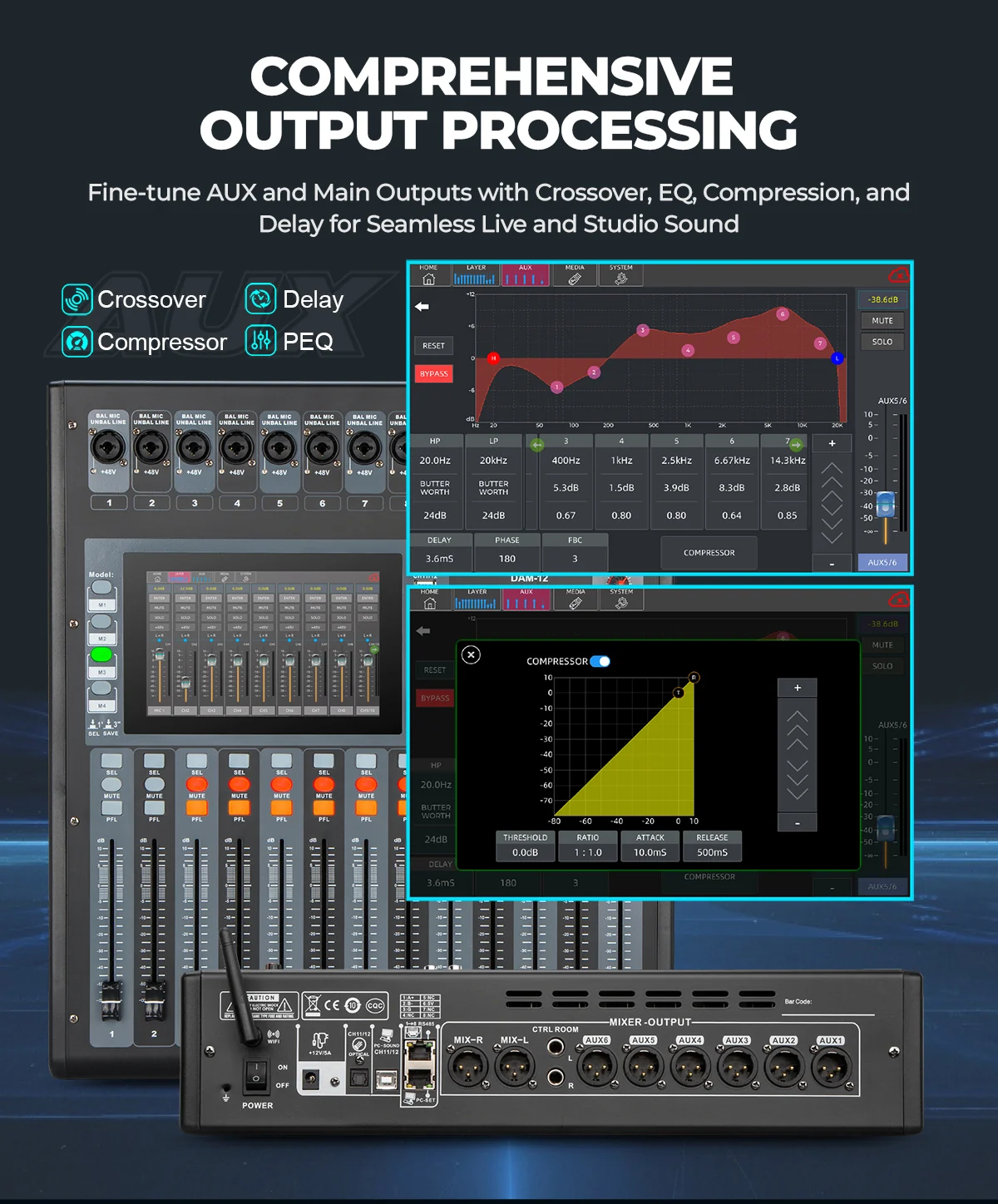

• All AUX outputs include:
Independent crossover
PEQ
Dynamics compressor
Delay processor
Pre/post fader output routing
• Stereo main output channel with dedicated:
Crossover
PEQ
Dynamics compressor
Delay processor"
"User Customization:
• Fully editable channel name presets
• Cross-channel configuration cloning function
• Comprehensive system parameter save/recall capability"
"Effects System:
• Dual independent professional stereo effects processors
Dedicated send/return buses
Multiple effect algorithms (reverb, delay, chorus, etc.)
16 user-programmable custom effect slots"
"Media Integration:
• Built-in USB media player with real-time stereo recording/playback
• USB audio interface supporting PC-connected digital audio workflows
• Scene memory management with instant recall function"
"Security Features:
• Hierarchical password protection system
Administrator-level password for full system access
Customizable user-level passwords
Unified security for both local and remote access"
"Control Interface:
• 7"" HD capacitive touchscreen (1280×800 resolution)
Multi-touch gesture support
HTML5-based web server with built-in Wi-Fi hotspot
Cross-platform compatibility (iOS/Android/Windows/macOS/Linux)
Multi-device synchronization and full-function remote control"
"System Integration:
• Centralized control protocol support
• Standard rack-mount bracket included
Compatible with 19"" equipment racks
Integrated cable management system"
