Product Description
Features

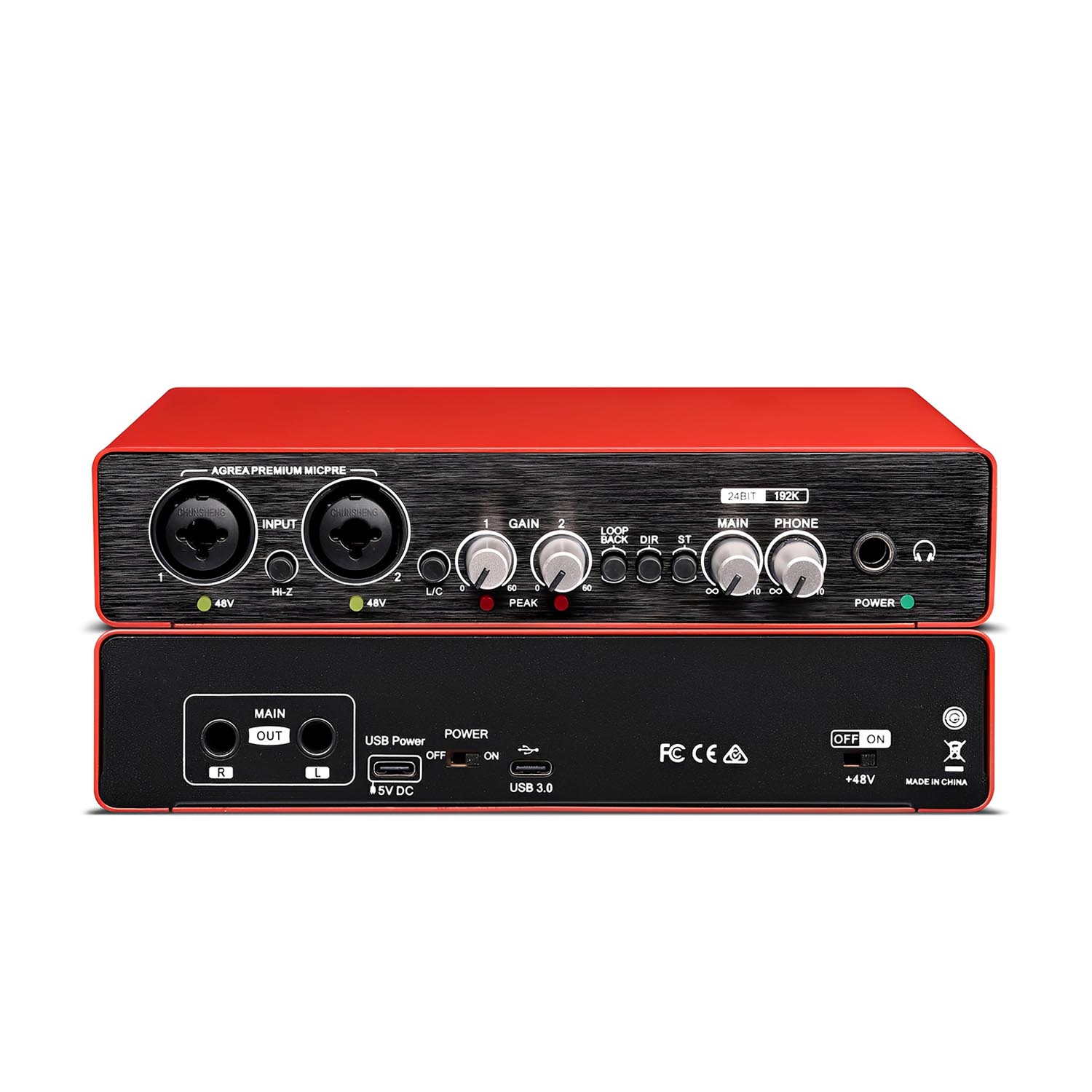

◆2 input /2 output USB audio interface
◆Low noise microphones amplifier XLR combination jack
◆Hi-Z input for guitars and other high impedance sources
◆Low noise design with extensive shielding ,high fidelity sound quality
◆Exquisite electroplating control knob
◆Highlights indicator display
High-performance converters enable you to record and mix and play audio in anywhere
◆Substantial and mini metal hardware
◆24-bit/192kHz Sampling rate
◆Support Type-C interface compatible with PC and iOS system
technical parameter:
Maximum level: Maximum Levels
Mic inc +20dBu
All Other inputs +20dBu
All other outputs +20dBu
Total harmonic distortion (THD) Total harmonic distortion (THD)
(≥0.03% 20Hz-20kHz@+4dBu into 600 ,Input to OMNI OUT)
Mic in to insert out ﹤0.001%
Noise:
STEREO OUT main output (fader at O dB position): -94 dBu
PHONES OUT monitor headphone output (minimum fader): -94 dBu
STEREO OUT main output (minimum fader): -104 dBu
Signal to Noise Ratio
Channel line: 87db
Monitoring room output: 87db
Equivalent input noise(EIN)
150 ohm termination: -129.5dBu 20Hz-20kHz
Attenuation (Crosstalk)
Channel Mute switch engaged: -82 dBu
Channel Gain knob down: -82 dBu
Frequency response microphone Frequency response
±0.3dB 20 Hz-20kHZ, refer to+4dBu output @IkHz,INPUT to OMNI OUT
Gain/GAIN:
Balanced output STEREO OUT: +70dBu
Monitor headphones PHONES OUT: +80dBu
Common mode rejection ratio = CMRR
Impedances
Mic in: 2.5kilohms
Channel insert return: 2.5kilohms
All other inputs: 10kilohms or greater
Tape out: 1.1kilohms
All other outputs: 120 ohms
Channel：2Channel
Main output:2 Mono
Phantom power:1 Stere
Monitor output:48V DC
Monitor output:Earphone
Professional recording:192K recording
