UM22C combines two analog inputs and outputs, DSP-assisted low-latency positioning, headphone monitoring and multi-platform support. The converter IC is described as capable of 768 kHz, while the interface operating range is published as 44.1–192 kHz; buyers should use 192 kHz as the listed system maximum unless otherwise confirmed.
UM22C combines two analog inputs and outputs, DSP-assisted low-latency positioning, headphone monitoring and multi-platform support. The converter IC is described as capable of 768 kHz, while the interface operating range is published as 44.1–192 kHz; buyers should use 192 kHz as the listed system maximum unless otherwise confirmed.
| Model | UM22C |
| Computer connection | USB-C / USB interface stated |
| Analog I/O | 2 inputs / 2 outputs |
| Connector types | XLR, TRS and RCA stated; exact routing requires confirmation |
| System sample rates | 44.1–192 kHz |
| Bit depth | 16–32 bit |
| Converter IC capability | Up to 768 kHz / 32 bit stated for IC, not confirmed as interface operating rate |
| L/R output | Up to 5 V |
| Headphone support | 16 Ω or 32 Ω; up to 220 mW |
| Microphone S/N | 115 dB |
| Microphone gain | Up to +40 dB |
| S/(N+D) | 106 dB |
| Platforms | iOS, Android, Windows and OS system stated; exact macOS versions require confirmation |
| Drivers | Windows 10 / plug-and-play statement plus ASIO driver |
| Display | 1.54-inch LCD, IPS/full-view wording in source |
| Housing | All-metal; aluminium-finished control panel and knobs |
| Software bundle | Pro Tools First, Tracktion T7 and BIAS FX LE stated; current licensing must be confirmed |
| Power | Independent adapter stated; voltage not provided |
| SKU | I10011 |
For compatible recording, streaming and monitoring. Confirm exact I/O routing, phantom power, USB cable, mobile adapters, current driver support, software licensing and power adapter.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What sample rate does UM22C support?
The interface is listed at 44.1–192 kHz; 768 kHz refers to the converter IC capability.
How many analog inputs and outputs are provided?
Two inputs and two outputs are stated.
Which platforms are listed?
iOS, Android, Windows and an “OS” system reference; confirm exact versions and adapters.
Is software included?
Several packages are named, but current licenses and availability should be confirmed.
Request current pricing, availability and distributor support.

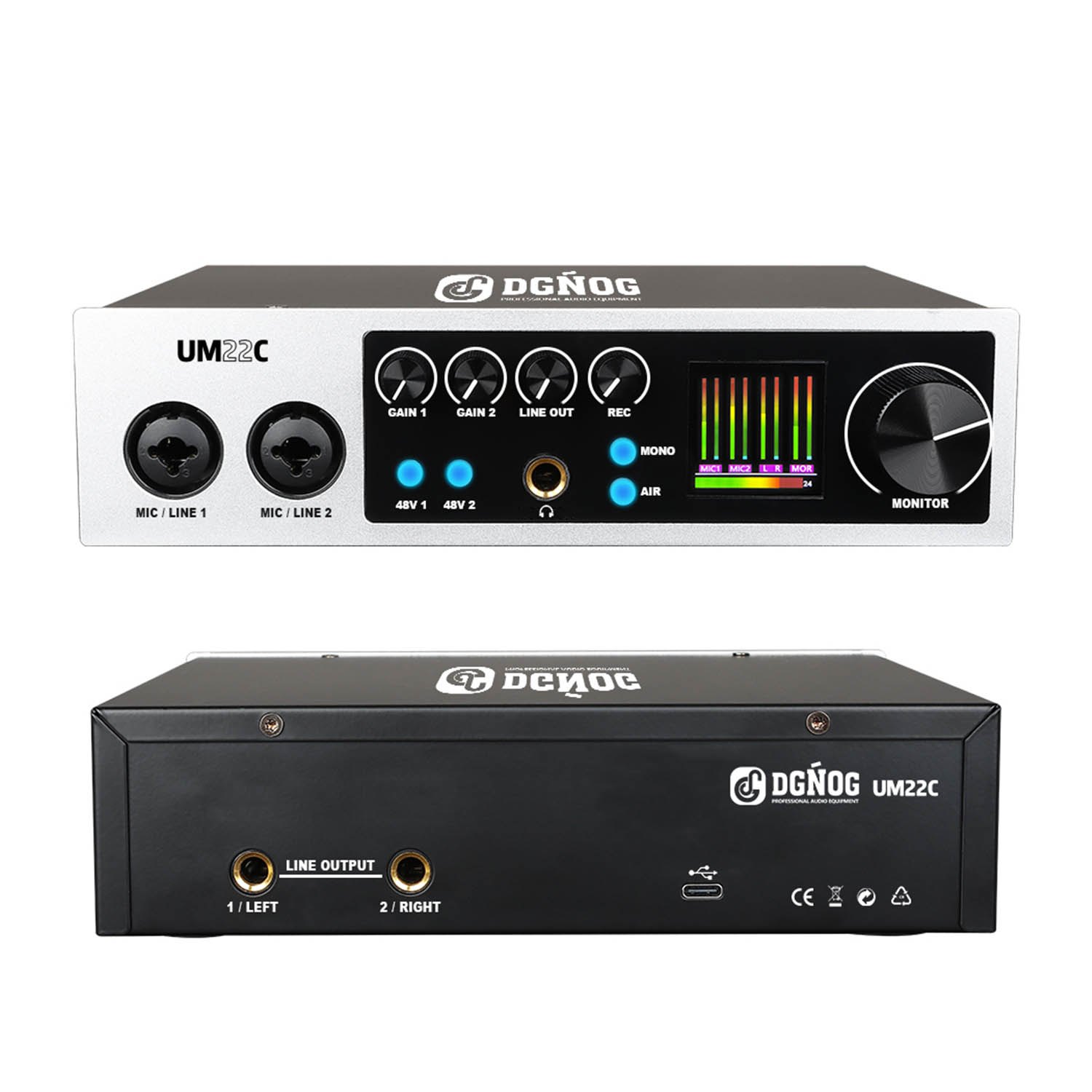

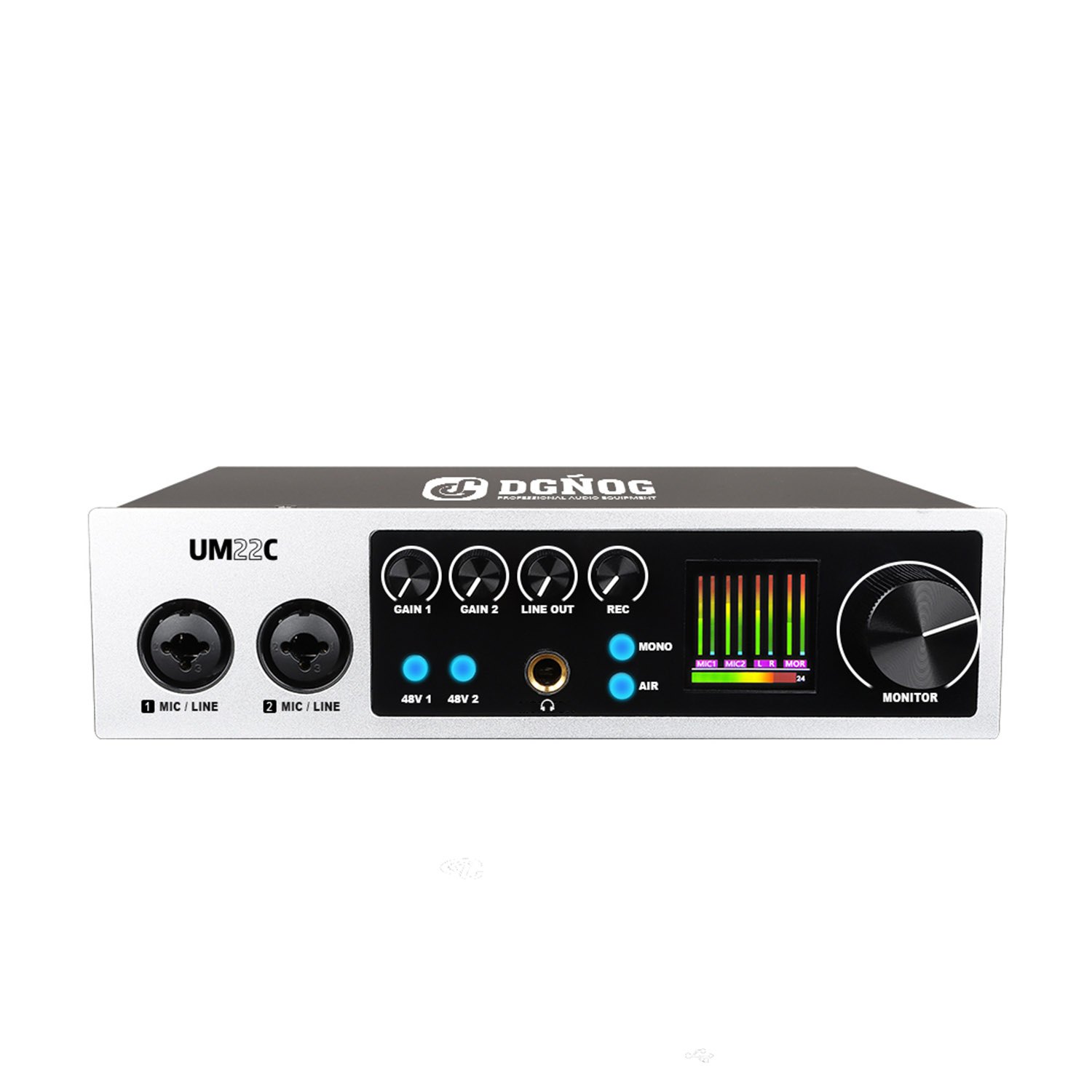

GET A QUOTEReview the existing real product views, controls and connections before confirming host-device compatibility, driver requirements, included cables, sample approval and wholesale quantity.
OEM and ODM options depend on the model and quantity. Send your logo, packaging requirements, destination market and expected order quantity for confirmation.
Send the model name, quantity, country and intended application. ELEGAUDIO will confirm the current product version, available documentation, MOQ, price and lead time.
Sample availability varies by model. Contact us with your evaluation requirements so the correct configuration can be confirmed before shipment.
