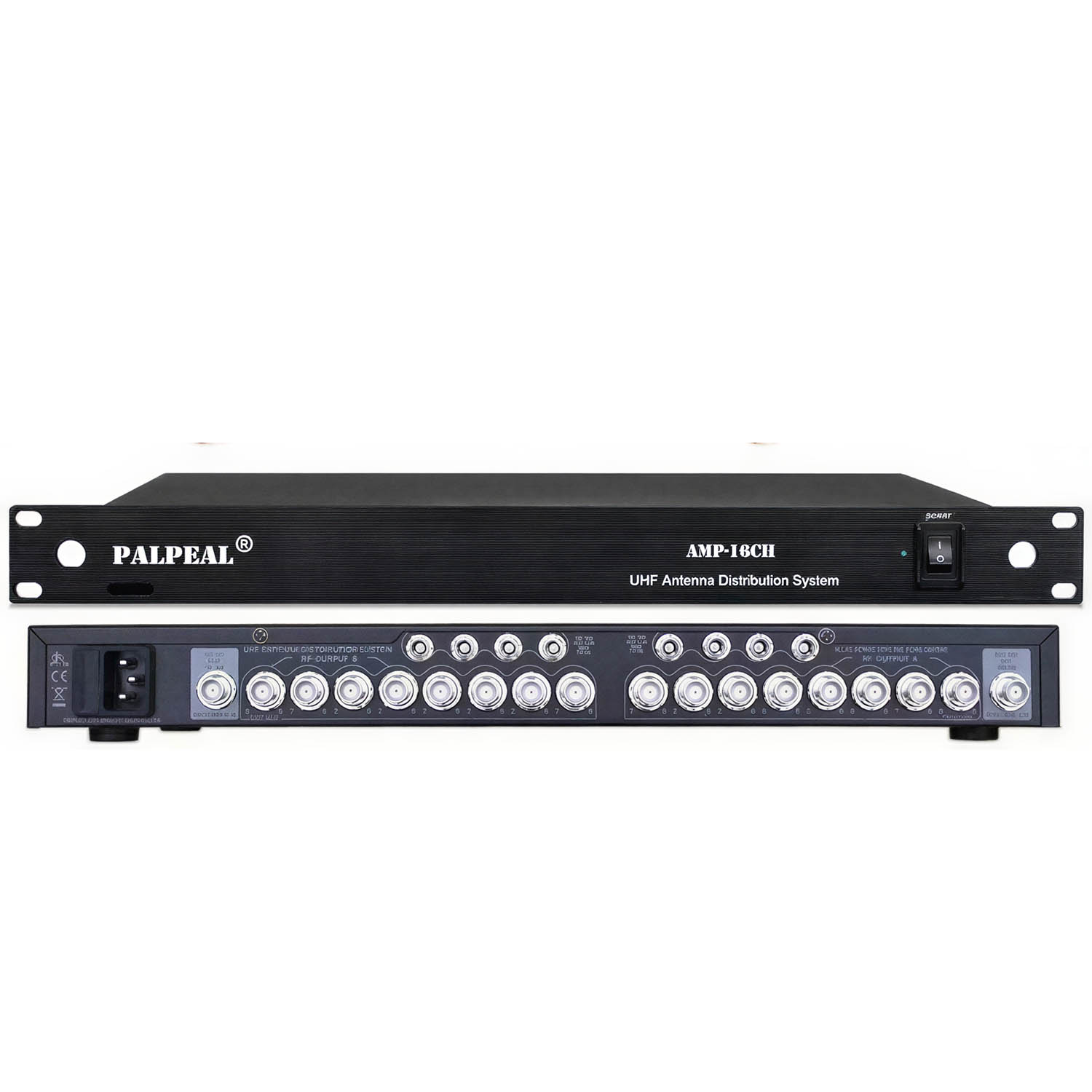

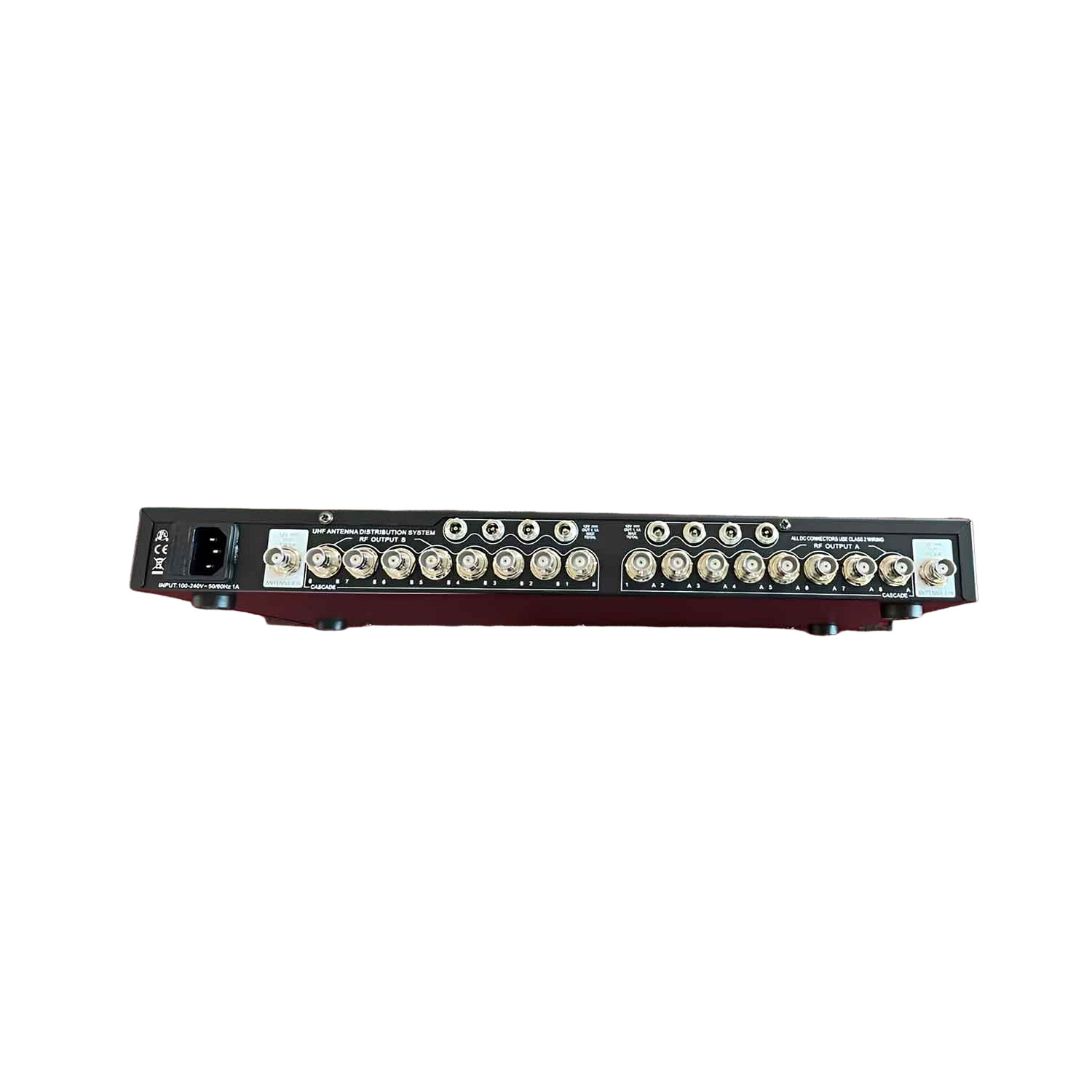

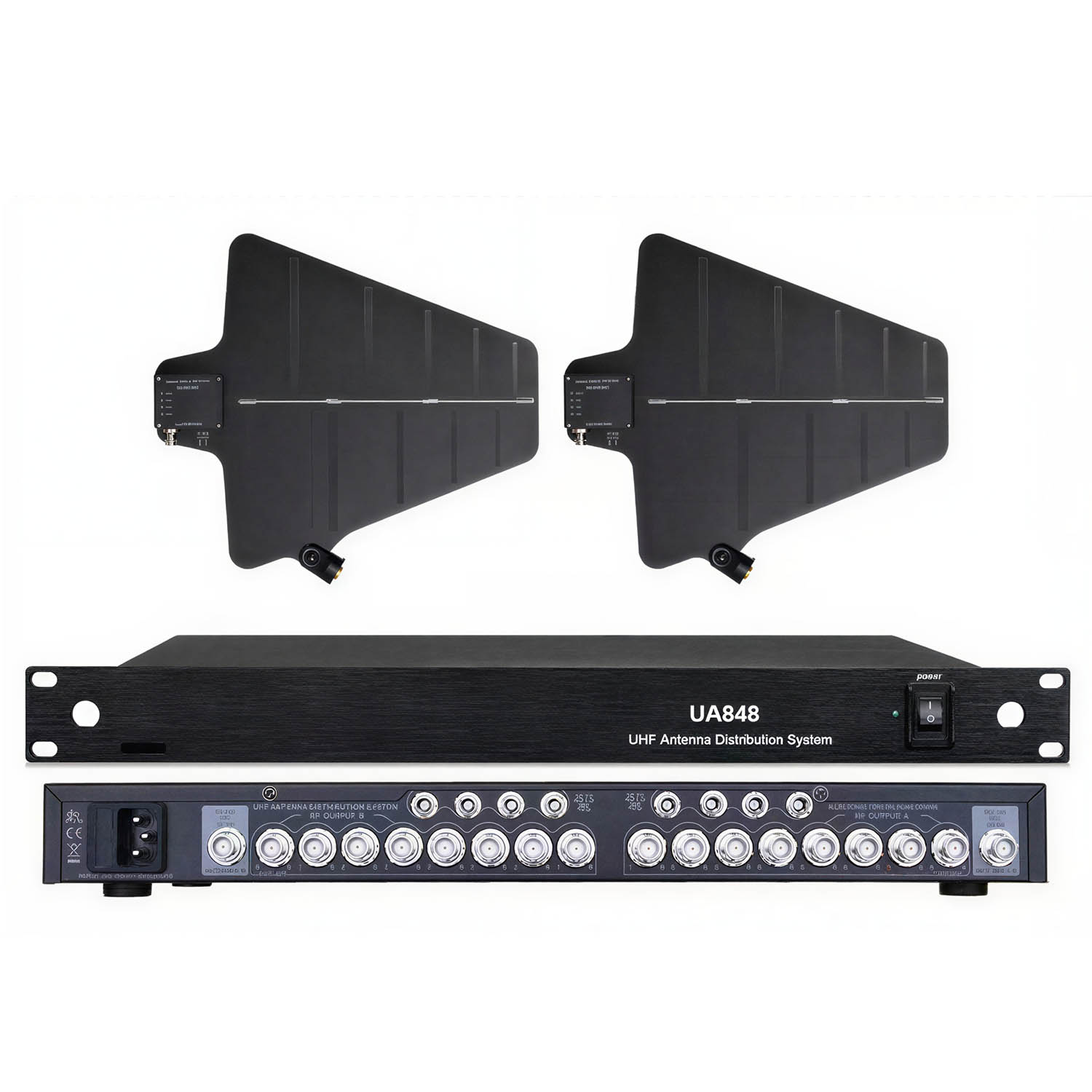

Antenna distributor ■Number of channels: 16CH ■ Frequency range: 450~950MHz ■ RF output gain: 1dB ± 1dB ■ Output third-order intercept intercept point: +14dBm ■ Noise figure: <2dB ■ System impedance: 50Ω ■ Antenna input connector power supply: 5V/80mA DC ■ Output power supply: 12V/1000mA DC output per channel ■ Host power supply: external power supply 12V/5A DC ■ Connector: BNC Directional antenna ■ Frequency range: 450~950MHz ■ 3dB beam width: 90 degrees vertical, 120 degrees horizontal ■ System impedance: 50Ω ■ Amplification gain: 15dB ± 1dB ■ Noise figure: <2dB ■ Output third-order intercept intercept point: +14dBm ■ System impedance: 50Ω ■ Power supply: 5~12V/80mA DC ■ Connector: BNC
