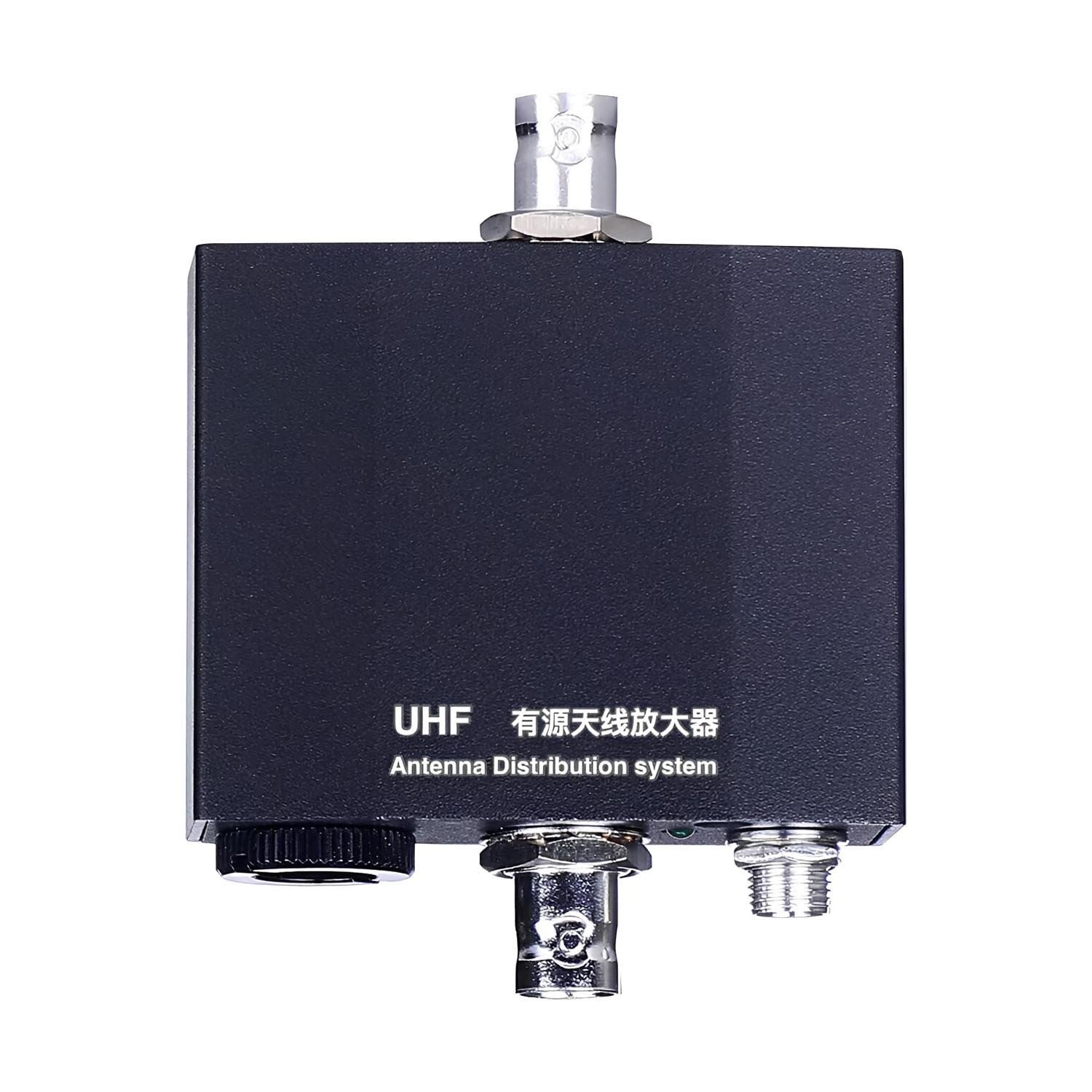

UB100 Receiver Signal Enhancer
UB100 is designed for compatible professional wireless microphone and monitoring antenna systems.
SKU:B20028
PROFESSIONAL AUDIO · B2B SOURCING
UB100 is a 12 dB receiver signal enhancer for compatible 470–950 MHz systems, with internal phantom or external power options.
UB100 is a 12 dB receiver signal enhancer for compatible 470–950 MHz systems, with internal phantom or external power options.
| Model | UB100 |
| Product type | Receiver Signal Enhancer |
| Frequency | 470–950 MHz |
| Impedance | 50 Ω |
| SWR | ≤1:1.5; 1:1.4 typical |
| Connector | Type B female (source terminology) |
| Gain | 12 dB typical |
| OIP3 | +45 dBm typical |
| Gain flatness | 1 dB across full band |
| Power | +9 to +12 V / 150 mA |
| Power methods | Internal phantom power or external supply |
| SKU | B20028 |
Designed for compatible receiver antenna paths requiring signal gain. Confirm frequency legality, connector standard, gain staging, power-feed compatibility and placement.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What gain is published?
12 dB typical.
How can it be powered?
Internal phantom power or an external supply.
What is the power requirement?
+9 to +12 V at 150 mA.
What connector does it use?
The source states “Type B female”; confirm exact connector standard.
