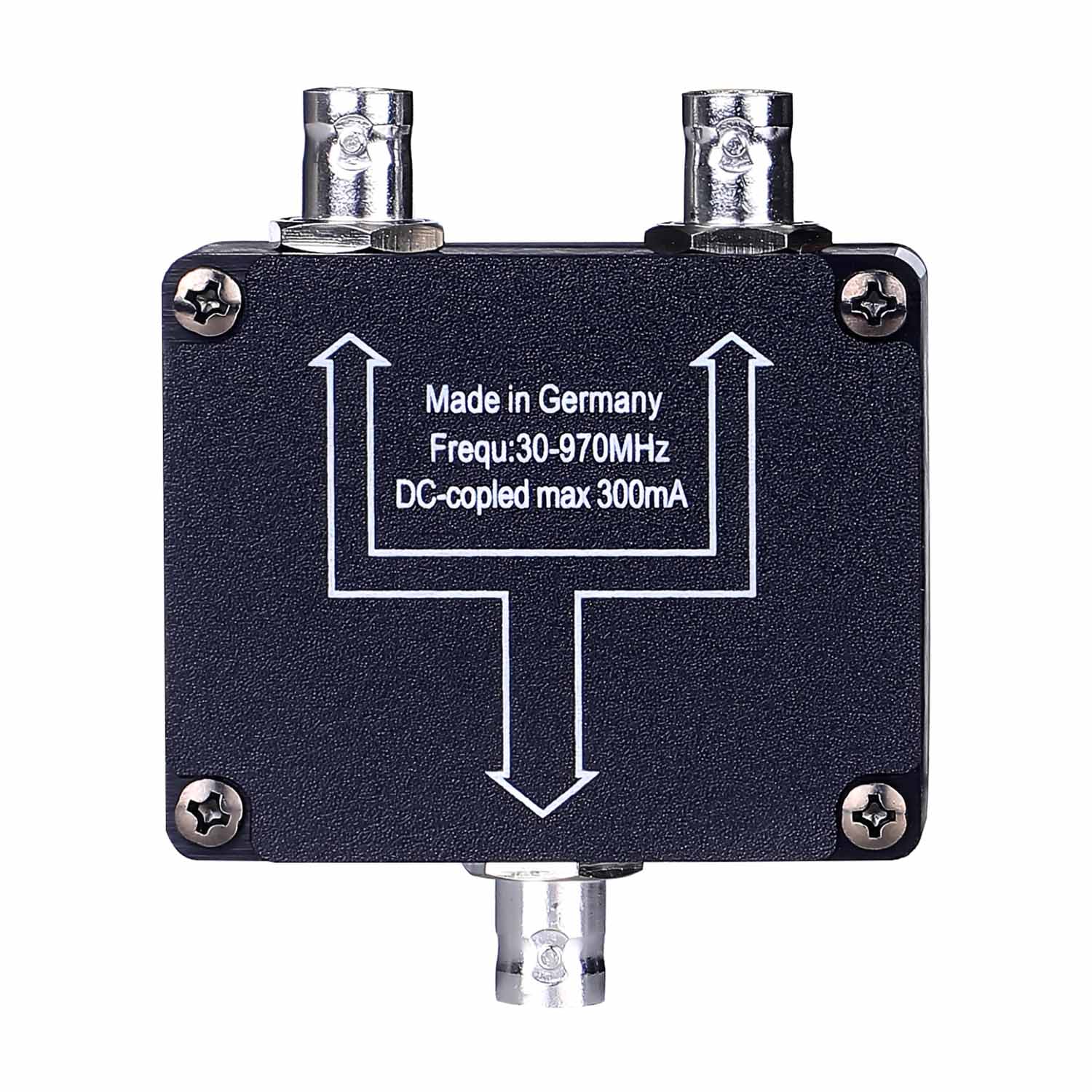

UB123 Signal Combiner/Splitter
UB123 is designed for compatible professional wireless microphone and monitoring antenna systems.
SKU:B20030
PROFESSIONAL AUDIO · B2B SOURCING
UB123 is a passive U-band signal circuit channel subdivider for compatible 470–950 MHz antenna systems.
UB123 is a passive U-band signal circuit channel subdivider for compatible 470–950 MHz antenna systems.
| Model | UB123 |
| Product type | Signal Combiner Splitter |
| Frequency | 470–950 MHz |
| Impedance | 50 Ω |
| SWR | ≤1:1.5; 1:1.4 typical |
| Connector | Type B female (source terminology) |
| Maximum gain / insertion loss | -1.5 dB typical |
| Gain flatness | 1.5 dB across full band |
| Maximum charge current | 300 mA |
| SKU | B20030 |
Relevant to compatible UHF RF distribution systems. Confirm whether the unit is used as combiner, splitter or both, connector standard/gender, channel topology and DC pass arrangement.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
Is UB123 passive?
Yes. The source identifies it as a passive signal circuit.
What band is published?
470–950 MHz.
What connector is stated?
“Type B female”; confirm whether this means BNC or another connector standard.
Does it pass DC power?
A 300 mA maximum charge current is stated; confirm the exact DC-pass configuration.
Request current pricing, availability and distributor support.
